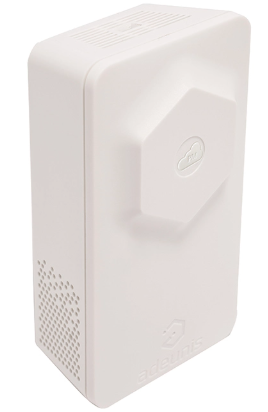

SKU: ARF8377AA
Optimising comfort and ensuring the health of occupants
Details Additional Info Data Sheet
BREATH: Indoor Air Quality.
Optimising comfort and ensuring the health of occupants
We can supply third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.
| Input Power | 2 x 3.6V ER14505 AA lithium batteries (3.6V2400mah/section) |
| Sleeping Current | 25uA |
| Wake up Current | 7mA |
| Receiving Current (Max) | 11mA/3.3V |
| Transmitting Current (Max) | 127mA/3.3V |
| Battery Voltage Measurement Accuracy | ±0.1V |
| Current Measurement Accuracy | <+-1% |
| Current Measurement Accuracy Range | 10A to 630A (depending on the current transformer configuration) |
| TX Power | 19dBm ±1dBm |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor=12, Bit Rate=293bps) -121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Built In Antenna |
| Communication Range | Up to 10 km (line-of-sight, actual transmission distance depends on the environment) |
| Data Transfer Rate | 0.3kbps - 50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU868 (others are available on request) |
| Dimensions | Main Part: 112mm x 65mm x 32mm |
| Weight | 141g |
| Environment Temperature Range | -20°C - 55°C |
| Environment Humidity Range | <90% RH (No condensation) |
| Storage Temperature | -40°C - 85°C |
Certifications
