SKU: ARF8123AA
Qualify and validate your network with the Adeunis Field Test Device.
Details Additional Info Data Sheet

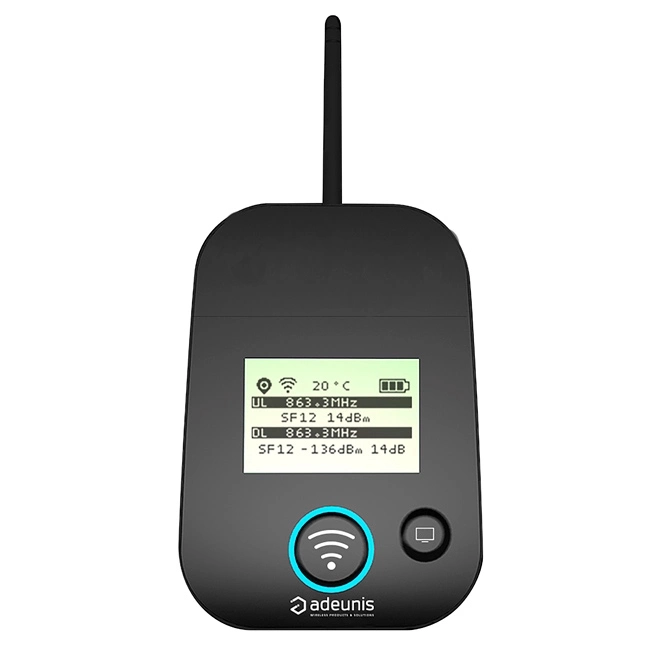

Qualify and validate your network with the Adeunis Field Test Device. Ensure optimum positioning of your LoRa sensors with immediate viewing of network coverage data.
| Communication | LoRaWAN® protocol & LoRa Modulation (3.6V2400mah/section) |
| LoRaWan Specification compliant | V1.0.1 |
| Radio Rate | Variable (SF12/125kHz (~183 bps) to FSK (~50kbps) |
| RF Power | 14dBm (25mW) |
| Sensitivity | down to -140 dBm in SF12/CR4 |
| Available Frequency | EU868 (others are available on request) |
| Connector | Micro-USB - 5V - 500mA |
| Battery | Lithium-Ion Polymer 3.7V 2Ah 7.4Wh |
| Device configuration | Via AT commands |
| Serial rate | 115.2 kbps |
| Parity | None |
| Amount of data | 8 |
| Stop bit | 1 |
| Dimensions | 186.2mm x 75.2mm x 22.8mm |
| Weight | 140g |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
