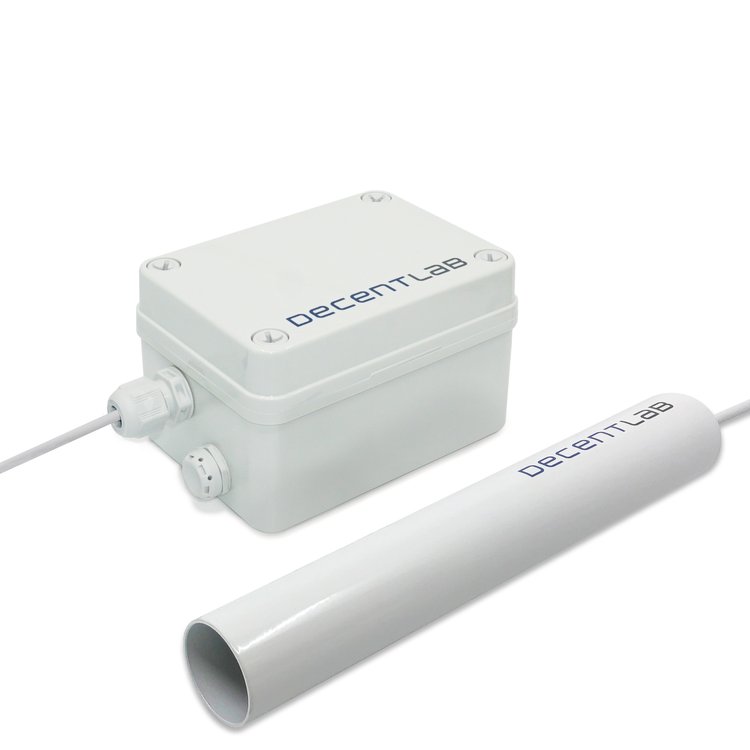

DecentLab Infrared Thermometer / Surface Temperature Sensor With Weather Protection & Mounting Kit

SKU: DL-ITST-002

Decentlab‘s surface temperature sensor uses LoRaWAN® technology to measure thermal energy with great accuracy.

£912.25 (RRP) +VAT

Product Description

Decentlab's surface temperature sensor uses LoRaWAN® technology to measure thermal energy with great accuracy. Enabling remote temperature monitoring, the surface temperature sensor is ideal for applications such as; road surface monitoring, ice warnings and smart agriculture. With an adjustable measuring area, users can alter the area based on the distance between the target and sensor lens:

Distance	Measuring Spot Diameter
100 mm	11.6 mm
400 mm	26.7 mm
1000 mm	76.5 mm
2000 mm	160 mm
5000 mm	409 mm

Sensor data is transmitted at configurable intervals via LoRaWAN® which is then sent to a compatible gateway over a range of up to 10 km.

Features

LoRaWAN® Compatible
Accuracy measured to +1.5% or +1.5°C
Adjustable monitoring area
Wireless range up to 10 km (line of sight), approx 2 km (suburban areas)
Up to 8.5 years battery life (dependent on interval settings)

Parameters

Internal battery type:	2 x alkaline C batteries (LR14)
Power Consumption (average)	< 0.5 mWH (10 min interval)

Sensor head	-20 - +80°C 10 - 95% RH, non condensing
Sensor device	-20°C - +50°C 0 - 100% RH

Sensor head dimensions	87 mm (L) x 12 mm (dia)
Sensor head weight	60g including cable
Sensor device dimensions	135 mm x 81 mm x 70 mm (not including sensor/cable)
Sensor device weight	400g including batteries (270g without batteries)
Sensor device material, IP rating	Polycarbonate; weatherproof, impact-, UV-resistant (IP66/IP67). Pressure equaliser plu with PTFE membrane (IP68)

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN temperature sensors to suit specific project requirements.
