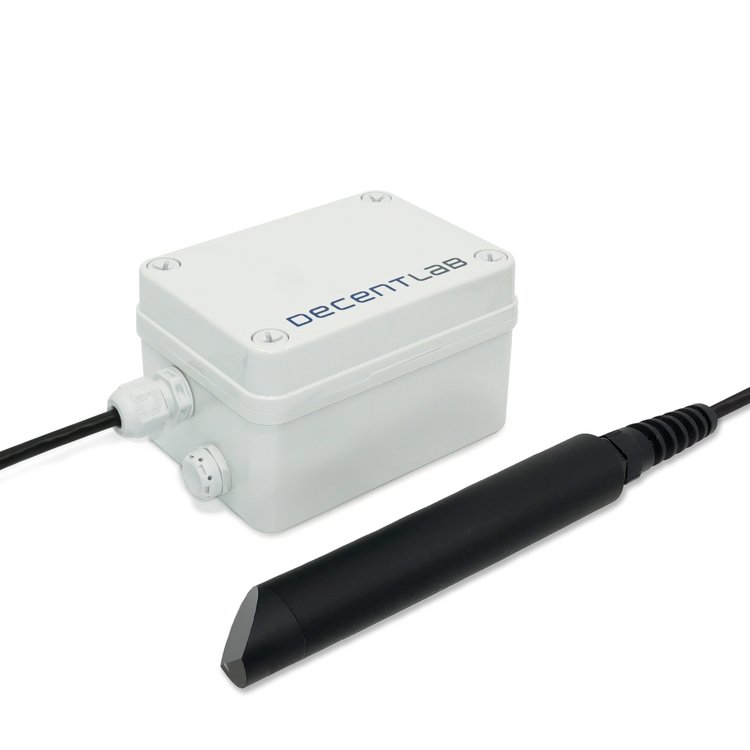

DecentLab Optical Turbidity and Temperature Sensor for LoRaWAN

SKU: DL-NTU-001-EU868

LoRaWAN® Optical Turbidity and Temperature Sensor

£2,277.53 (RRP) +VAT

Product Description

The Decentlab LoRaWAN®-enabled optical infrared turbidity and temperature sensor has a measurement range of 0 - 4000 NTU and 0 - 4500 mg/L. Featuring a cable length of 7 m (custom lengths on request), the decentlab turbidity and temperature sensor is compatible with LoRaWAN® networks of any provider. Simply place and measure; no setup required. Ideal for applications such as:

Urban wastewater treatment
Industrial effluent treatment
Surface water monitoring
Sea water monitoring, fish farming & aquariums
Drinking water monitoring

Configurable via command line interface and downlink command interface this sensor can be left unattended for several years without replacing the batteries. Housed in a robust polycarbonate enclosure, this device is weatherproof, impact and UV-resistant with an IP67 rating.

Features

LoRaWAN® Compatible
Requires standard alkaline (C-type) batteries
CE compliant
Wireless range up to 10 km (line of sight), approx 2 km (suburban areas)
Suitable for monitoring outdoor environments

Parameters

Internal battery type:	2 x alkaline C batteries (LR14)
Power Consumption (average)	< 0.5 mW (10 min interval)

Sensor Head	-0 - +50°C Non-Freezing
Sensor Device	-20 - +50°C 0 - 100% RH

Dimensions	135 mm (L) x 81 mm (W) x 70 mm (H)
Sensor Head	Length: 170 mm, diameter: 27 mm
Weight	950g including batteries and sensor
Cable Length	7 m

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® turbidity sensors to suit specific project requirements.
