SKU: DL-PM-001-EU868
LoRaWAN® Particulate Matter, Temperature, Humidity and Barometric Pressure Sensor
Details Additional Info Data Sheet

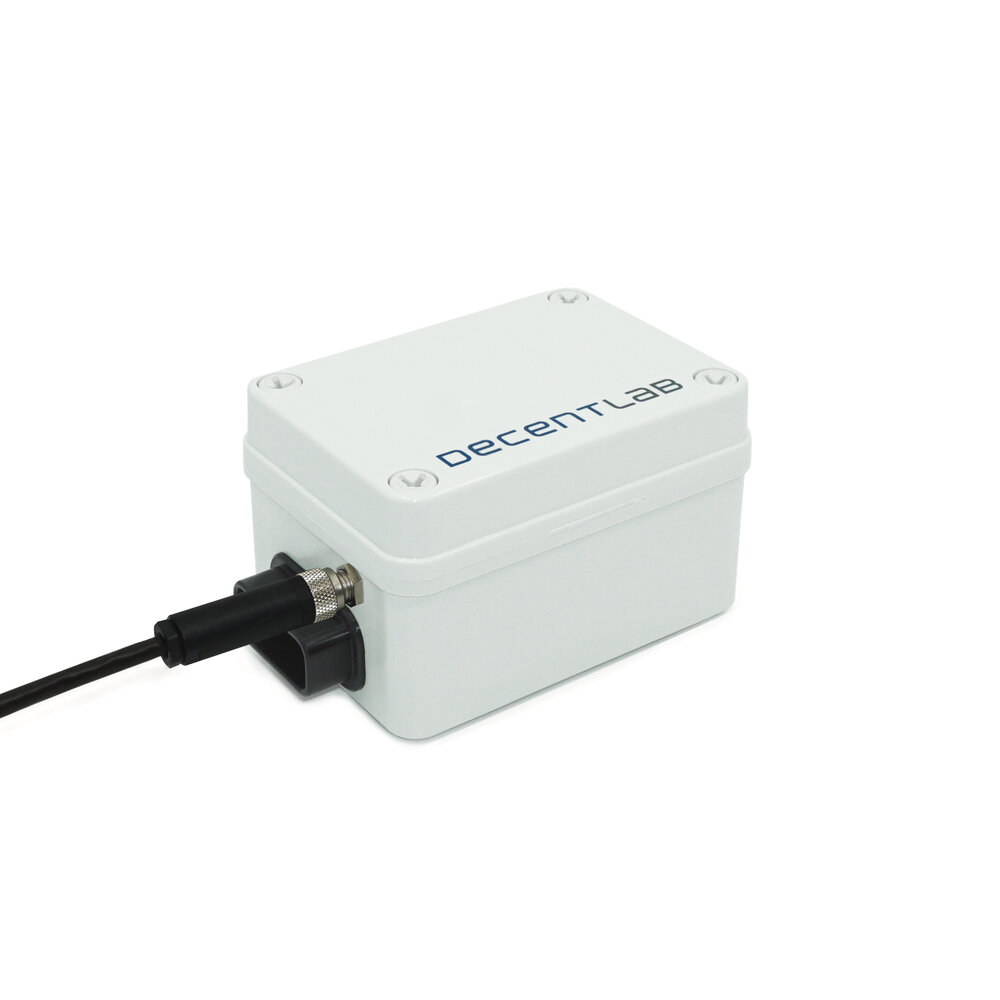

The Decentlab particulate matter (PM) multi-sensor is MCERTS-certified and provides information industry-standard humidity and temperature readings based on laser scattering. It also features a high accuracy barometric pressure sensor. The Decentlab particulate matter multi-sensor is compatible with LoRaWAN® networks of any provider. Simply place and measure; no setup required. Ideal for applications such as:
Configurable via command line interface and downlink command interface this sensor can be left unattended for several years. This device uses C-type batteries and an external 5V power supply for the PM sensor. Housed in a robust polycarbonate enclosure, this device is weatherproof, impact and UV-resistant with an IP67 rating.
| Internal battery type: | 2 x alkaline C batteries (LR14) |
| External Power Supply: | 5.0 VDC regulated (min. 4.5V, max 5.5V) - See datasheet for more information |
| Temperature | -10 - +50°C |
| Humidity | 0 - 95% RH (non-condensing) |
| Transmitter Dimensions | 122 mm (L) x 81 mm (W) x 67 mm (H) |
| Weight | 400g (including batteries) |
| Sensor device material, IP rating | Polycarbonate; weatherproof, impact-, UV-resistant Air inlet on the bottom: protected by shroud and a fine-meshed stainless grid |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® Particulate Matter Multi-Sensors to suit specific project requirements.
