SKU: DL-SMTP-001-EU868
LoRaWAN® Soil Moisture and Temperature Profile Sensor
Details Additional Info Data Sheet

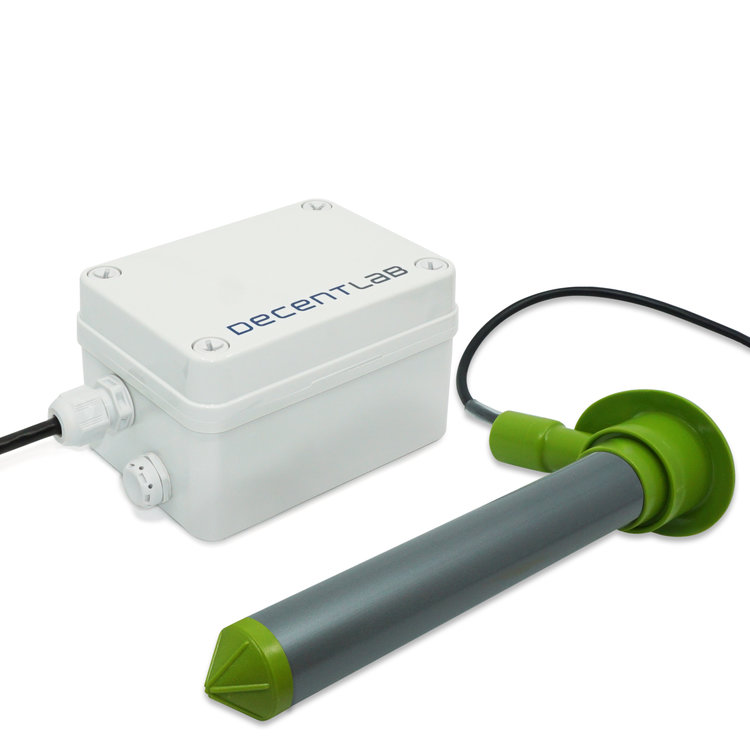

The Decentlab LoRaWAN®-enabled soil moisture and temperature sensor features a subsurface probe which measures soil moisture and temperature at 6 levels of depth: 100, 200, 300, 400, 500, 600 mm depth. For flexibility, various probe configurations are available: number of levels, lengths of probe (speak to us for more information). Featuring a cable length of 5 m, this soil moisture and temperature sensor is compatible with LoRaWAN® networks of any provider. Simply place and measure; no setup required. Ideal for applications such as:
The Soil Temperature and Moisture sensor is configurable via command line interface and downlink command interface this sensor can be left unattended for several years without replacing the batteries. Housed in a robust polycarbonate enclosure, this device is weatherproof, impact and UV-resistant with an IP67 rating.
| Internal battery type: | 2 x alkaline C batteries (LR14) |
| Power Consumption (average) | < 0.95 mW (10 min interval) |
| Temperature | -20 - +50°C |
| Humidity | 0 - 100% RH |
| Enclosure dimensions | 135 mm (L) x 81 mm (W) x 70 mm (H) (not including sensor / cable) |
| Probe dimensions | Length 600 mm approximately, shaft diameter: 32 mm |
| Weight | 1500g including batteries and sensor (1370g without batteries) |
| Sensor device material, IP rating | Polycarbonate; weatherproof, impact-, UV-resistant (IP66/IP67). Pressure equaliser plug with PTFE membrane (IP68) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® Soil monitoring sensors to suit specific project requirements.
£258.59 (RRP) +VAT
