SKU: DL-PYR-001-EU868

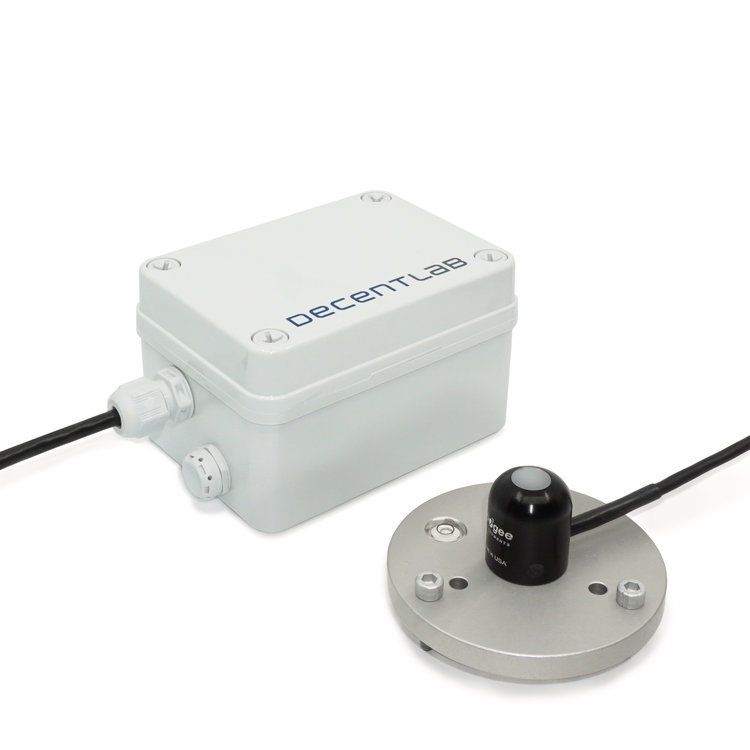

LoRaWAN® Total Solar Radiation Sensor
Details Additional Info Data Sheet
The Decentlab LoRaWAN®-enabled total solar radiation sensor (pyranometer) has a measurement range of 0 - 2000 W/m2 and a spectral range: 360 - 1120 nm. With a field of view of 180° and an adjustable leveling plate including bubble level, this smart device features a cable length of 5 m. The Decentlab total solar radiation sensor is compatible with LoRaWAN® networks of any provider. Simply place and measure; no setup required. Ideal for applications such as:
Configurable via command line interface and downlink command interface this sensor can be left unattended for several years without replacing batteries. Housed in a robust polycarbonate enclosure, this device is weatherproof, impact and UV-resistant with an IP67 rating.
| Internal battery type: | 2 x alkaline C batteries (LR14) |
| Power Consumption (average): | < 0.5 mW (10 min interval) |
| Transmitter & Sensor Temperature | -20 - +50°C |
| Humidity | 100% RH |
| Transmitter Dimensions | 135 mm (L) x 81 mm (W) x 70 mm (H) |
| Sensor head | Diameter: 25 mm, height: 33 mm |
| Leveling Plate | Diamter: 80 mm, height: 8 mm |
| Weight | 620g including batteries |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® Total Solar Radiation Sensor to suit specific project requirements.
Certifications
