DecentLab Water Pressure / Liquid Level & Temperature Sensor EU868

SKU: DL-PR26-001-EU868

LoRaWAN® Pressure/Liquid Level and Temperature Sensor

£700.11 (RRP) +VAT

Product Description

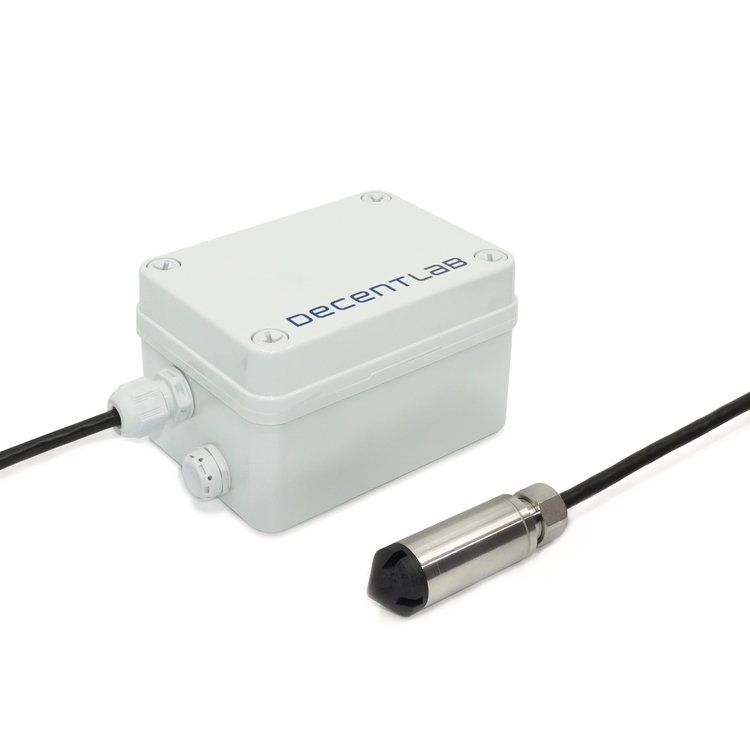

The Decentlab LoRaWAN®-enabled piezoresistive pressure sensor/depth gauge had a range of 0 - 1 bar (0 - 10 m); resolution of 0.000030 bar (0.3 mm). With a cable length of 10 m, this sensor measures the pressure at the sensor head relative to the pressure at the cable end (device enclosure). The Decentlab water pressure/liquid level and temperature sensor is compatible with LoRaWAN® networks of any provider. Simply place and measure; no setup required. Ideal for applications such as:

Level/depth monitoring in tanks for liquids
Groundwater level monitoring
Level/depth monitoring in wells
Water depth and temperature monitoring in running or open water
Relative pressure measurement

Configurable via command line interface and downlink command interface this sensor can be left unattended for several years without replacing batteries. Housed in a robust polycarbonate enclosure, this device is weatherproof, impact and UV-resistant with an IP67 rating.

Features

LoRaWAN® Compatible
Requires standard alkaline (C-type) batteries
CE compliant
Wireless range up to 10 km (line of sight), approx 2 km (suburban areas)
Suitable for monitoring outdoor environments

Parameters

Internal battery type:	2 x alkaline C batteries (LR14)
Power Consumption (average):	< 0.5 mW (10 min interval)

Sensor Head Temperature & Humidity	-40 - +110°C 0 - 100% RH
Sensor Device Temperature & Humidity	-20 - +50°C 0 - 100% RH

Dimensions	135 mm (L) x 81 mm (W) x 70 mm (H)
Weight	840g (including batteries)

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® Water Pressure/Liquid Level & Temperature Sensor to suit specific project requirements.
