SKU: ELTLite
The Elsys ELT Lite is a powerful LoRaWAN® device designed to measure analogue or digital signals. It is a 1-channel GPIO wireless transceiver which can also provide power to external sensors.
Details Additional Info Data Sheet

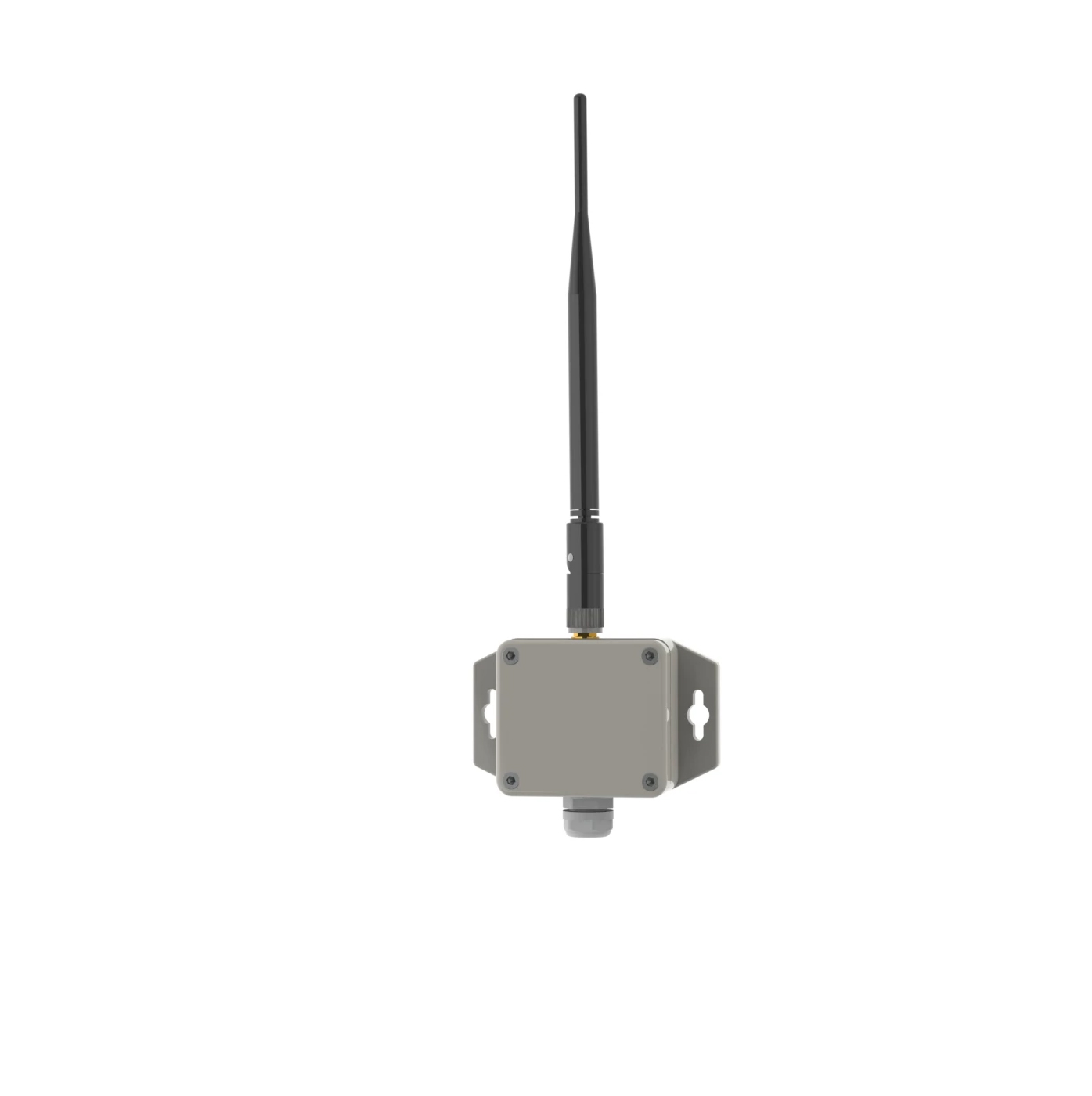

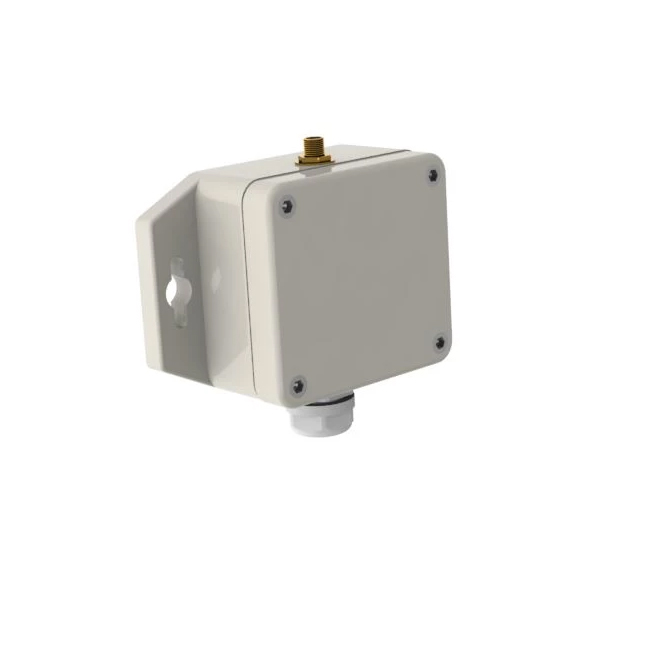

The Elsys ELT Lite Outdoor LoRaWAN® Sensor is a powerful LoRaWAN® device designed to measure analogue or digital signals. It is a 1-channel GPIO wireless transceiver which can also provide power to external sensors.

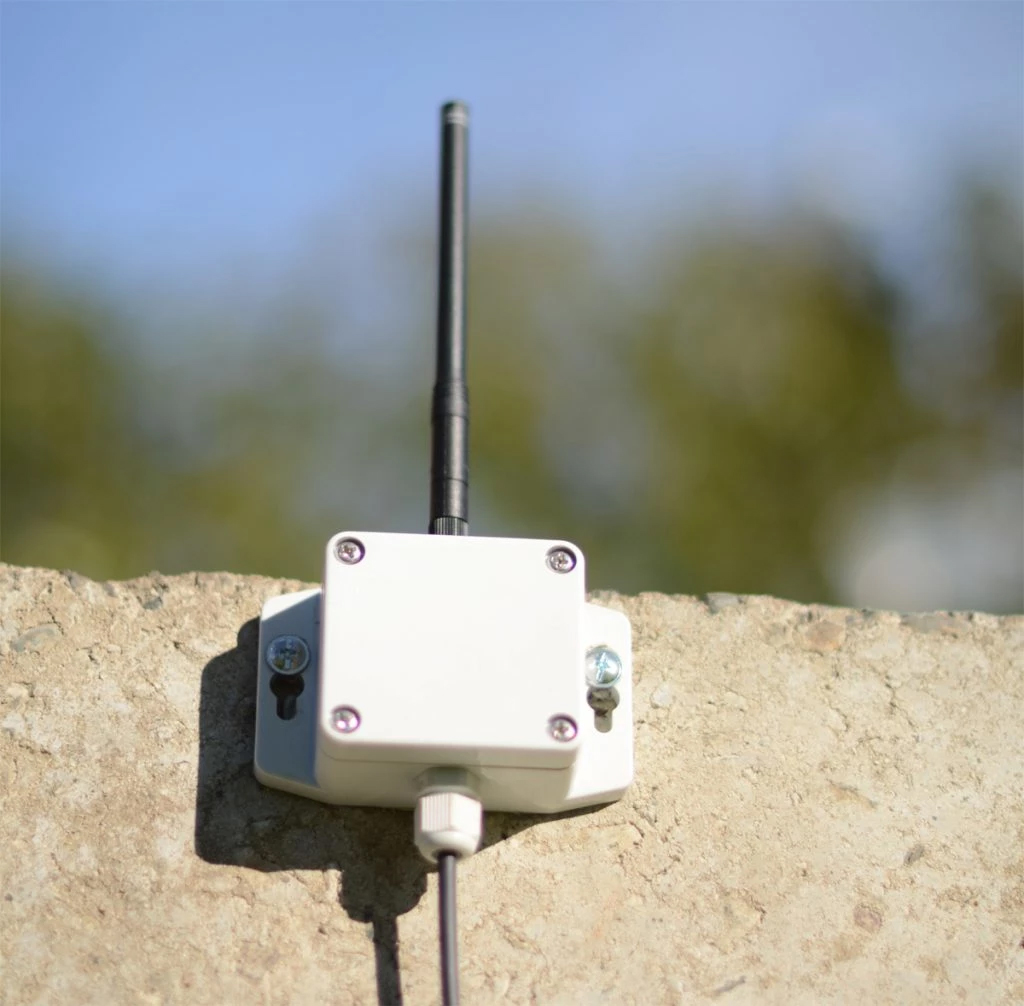

Enclosed in an IP67-rated casing, the Elsys ELT Lite Outdoor LoRaWAN® Sensor can be mounted outside and will withstand extreme conditions.
Ideal for use in Smart Cities, the ELT Lite works alongside an external sensor of your choice, enabling you to build your own solution. Some example uses include: electricity meters, flow meters, analogue sensors and/or moisture sensors.
With one generic input, the Elsys ELT Lite can be configured to measure external temperatures, pulse counting, analogue input, water leaks, switches plus much more!
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.3 |
| Device Type | Class A / C (Configurable) End-Device |
| Supported Regions | EU868 (Other frequencies available on request) |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm EIRP (Region Specific) |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| External Input (1 × Generic I/O) | |
| Supported Input Modes | Digital Input, Analogue Input (0 ~ 3V or 0 ~ 10V), Pulse Count (Pull-Up or Pull-Down), S0 Pulse Count, Pulse Frequency, Switch Input (Normally Open or Closed), External Temperature Probe (DS18B20 1-Wire), Water Leak Detection, 4 ~ 20 mA Input, Sender Unit (0 ~ 180 Ω), Digital Pressure Sensor (Meas M32Jx / M300J), Soil Moisture (Decagon) |
| Analogue Input Impedance | Approx. 6.5 kΩ (0 ~ 10V Mode) / 7.4 kΩ (0 ~ 3V Mode) |
| Internal Pull Resistance | Approx. 50 kΩ (Pull-Up or Pull-Down, Configurable) |
| External Power Output (B+) | Battery Voltage (Unregulated), Controlled via External Startup Time Parameter |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Sampling Interval | Configurable via NFC or Downlink |
| Data Upload Interval | Configurable via NFC or Downlink |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Dimensions | 94 × 59 × 35 mm |
| Weight | 60 g (Excluding Battery), 100 g (Including Battery) |
| Housing & Material | IP67 Enclosure — Suitable for Outdoor & Extreme Environments |
| Antenna | External Antenna (Sold Separately) |
| Cable Gland | Must Be Tightened Properly When Using External Sensors to Maintain IP67 Rating |
| Installation | Wall Mounting, Pole Mounting, or Any Flat Surface |
| Operating Temperature | -40°C ~ +60°C (Battery Only) Up to +85°C (With External Power Supply) |
| Relative Humidity | 0% ~ 100% RH |
| Ingress Protection | IP67 |
| Power Supply | 1 × 3.6V AA ER14505 Lithium Battery (Not Included) External Power Supply Also Supported (Extends Operating Temperature to +85°C) |
| Battery Life | Up to 10 Years (Depending on Configuration, External Sensor Load & Environment) |
