SKU: ELT2-MB7389

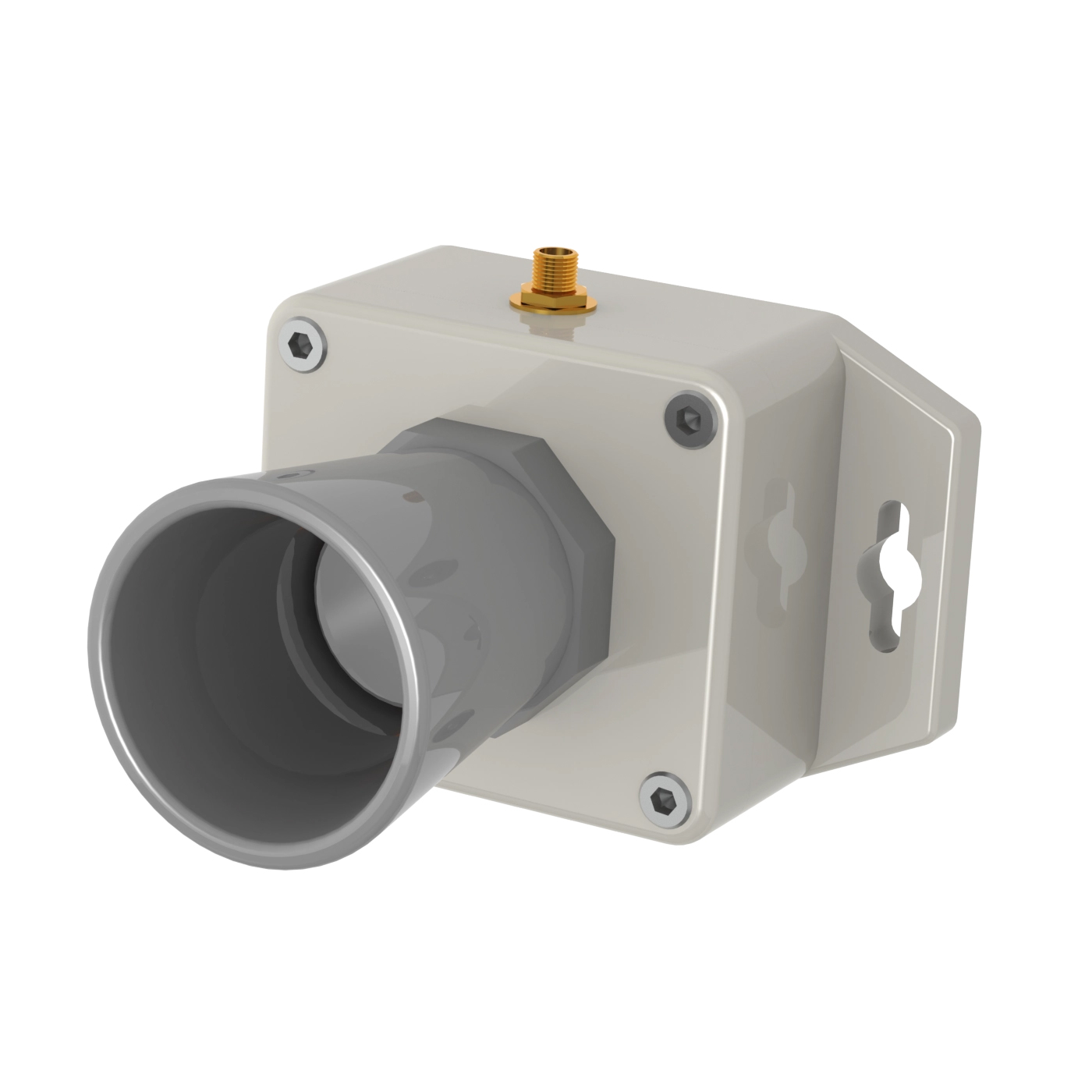

Elsys ELT-2 is an extremely versatile and robust LoRaWAN® Distance Sensor sensor which is perfect for outdoor use with its IP67 rated casing.
Details Additional Info Data Sheet Manual
Elsys ELT-2 LoRaWAN® Distance Sensor is an extremely versatile and robust LoRaWAN® Distance Sensor sensor which is perfect for outdoor use with its IP67-rated casing. This sensor is equipped with internal temperature, humidity, accelerometer and atmospheric pressure nodes as standard. With the ability to be connected to a further two external sensors, the ELT-2 can measure and monitor a plethora of parameters such as soil moisture, external temperature, pulse counting, water leaks and distance, to name but a few. Available with either an internal or separate external antenna, the ELT-2 can measure both analogue and digital inputs.
Ideal for a wide range of applications, this LoRaWAN® Distance Sensor is suitable for:
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.3 |
| Device Type | Class A / C (Configurable) End-Device |
| Supported Regions | EU868 (Other frequencies available on request) |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm EIRP (Region Specific) |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| Internal Sensors | |
| Temperature | Resolution: 0.1°C, Accuracy: ± 0.2°C (Typical) |
| Humidity | Resolution: 1% RH, Accuracy: ± 2% RH at 25°C |
| Accelerometer | 3-Axis (X, Y, Z) |
| Atmospheric Pressure | Barometric Pressure Sensor |
| External Inputs (2 × Generic I/O) | |
| Supported Input Modes | Digital Input, Analogue Input (0 ~ 3V or 0 ~ 10V), Pulse Count (Pull-Up or Pull-Down), Pulse Frequency, Switch Input, External Temperature Probe, Water Leak Detection, Sender Unit (0 ~ 180 Ω), Soil Moisture (Teros 10 / 12, MuRata SLT5006), Digital Pressure Sensor (Meas M32Jx / M300J) |
| Analogue Input Impedance | Approx. 6.5 kΩ |
| Internal Pull Resistance | Approx. 50 kΩ (Pull-Up or Pull-Down, Configurable) |
| External Power Output (B+) | Battery Voltage (Unregulated), Controlled via External Startup Time Parameter |
| Optional Add-On Modules | |
| Available Modules | Step-Up Module, EXT Module, ADC Module, PT100 Module, Dual PT-1000 Module |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Sampling Interval | Configurable via NFC or Downlink |
| Data Upload Interval | Configurable via NFC or Downlink |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Dimensions | 94 × 59 × 35 mm |
| Weight | 60 g (Excluding Battery), 100 g (Including Battery) |
| Housing & Material | IP67 Enclosure — Suitable for Outdoor & Extreme Environments |
| Antenna | External Antenna (Sold Separately); Internal Antenna Version Also Available |
| Cable Gland | Must Be Tightened Properly When Using External Sensors to Maintain IP67 Rating |
| Installation | Wall Mounting, Pole Mounting, or Any Flat Surface |
| Operating Temperature | -40°C ~ +60°C (Battery Only) Up to +85°C (With External Power Supply) |
| Relative Humidity | 0% ~ 100% RH |
| Ingress Protection | IP67 |
| Power Supply | 1 × 3.6V AA ER14505 Lithium Battery (Not Included) External Power Supply Also Supported (Extends Operating Temperature to +85°C) |
| Battery Life | Up to 10 Years (Depending on Configuration, External Sensor Load & Environment) |
