SKU: EMS
Elsys EMS (Elsys Mini Sensor) for LoRaWAN are ideal for monitoring indoor environments such as office spaces, Smart Buildings, smart homes etc where space is limited.
Details Additional Info Data Sheet

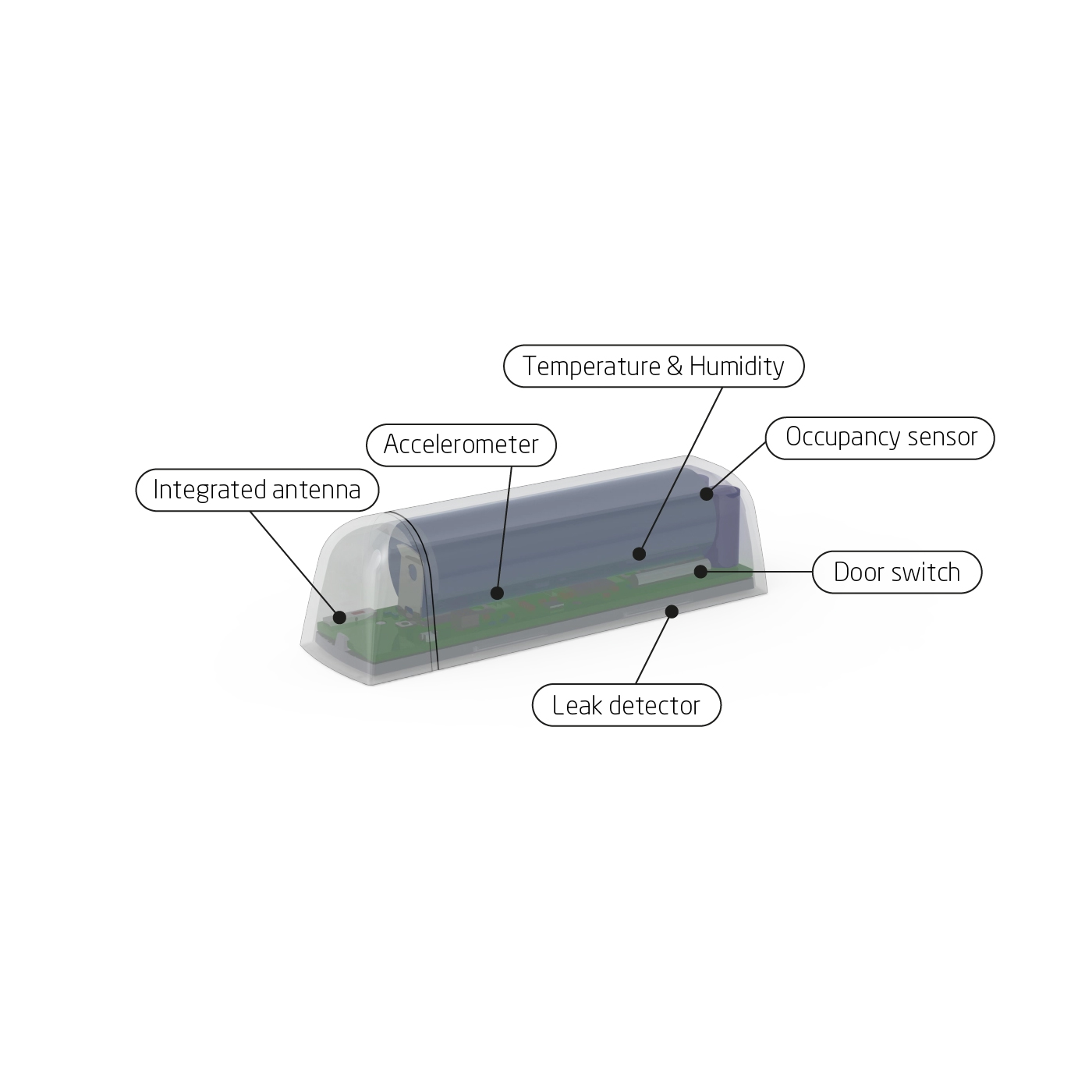

Elsys EMS Indoor Environment Monitoring Sensor using LoRaWAN® technology is ideal for monitoring indoor environments such as office spaces, Smart Buildings, smart homes etc where space is limited. Due to their compact form factor, these discrete sensors enable you to measure a multitude of parameters, including:
Running for up to 10 years from a single 3.6V AA-size lithium battery, they can be easily and quickly retrofitted to your existing LoRaWAN® network.
Ideal for a wide range of applications, including:
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.3 |
| Device Type | Class A / C (Configurable) End-Device |
| Supported Regions | EU868 (Others Available on Request) |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm EIRP (Region Specific) |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| Temperature Sensor | |
| Accuracy | ± 0.2°C (Typical) |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Accuracy | ± 2% RH at 25°C |
| Resolution | 1% RH |
| Additional Sensors | |
| Accelerometer | 3-Axis (X, Y, Z) Acceleration Detection |
| Door Activity Sensor | Reed Switch (Magnet Required) — Open / Closed State Detection |
| Water Leak Detector | Conductive Probes on Back Panel — Dry (0) / Wet (1) State Detection |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Sampling Interval | Configurable via NFC or Downlink |
| Data Upload Interval | Configurable via NFC or Downlink |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Dimensions | 74.9 × 21.2 × 20.8 mm |
| Weight | 10 g (Excluding Battery), 30 g (Including Battery) |
| Housing & Material | PC & ABS, White (Other Colours Available on Request) |

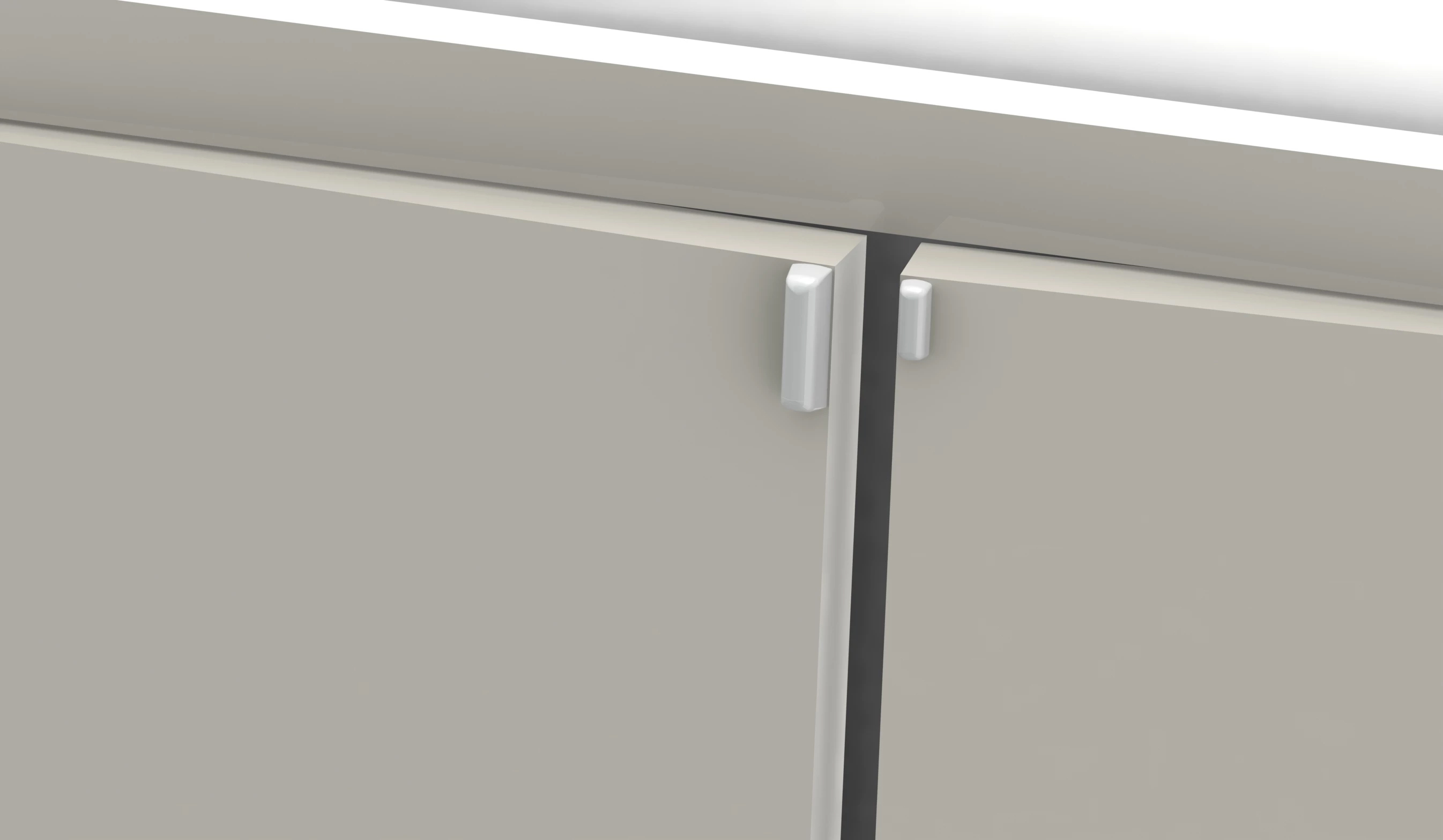

| Installation | Any Flat Surface — Door Frames, Under Desks, Under Appliances |
| Operating Temperature | 0°C ~ +50°C |
| Relative Humidity | 0% ~ 85% RH (Non-condensing) |
| Ingress Protection | IP20 |
| Power Supply | 1 × 3.6V AA ER14505 Lithium Battery |
| Battery Life | Up to 10 Years (Depending on Configuration and Environment) |
Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects..
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
