SKU: EMS2Lite

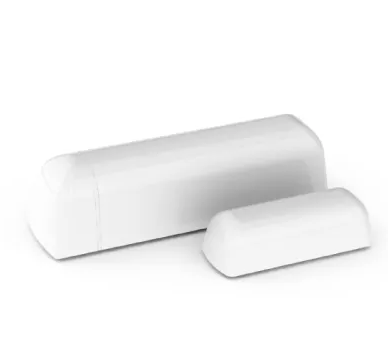

The Elsys EMS Lite is a small but powerful multisensor perfect for monitoring indoor environments. Combining temperature, humidity and leak detection in one compact device. The Elsys EMS Lite is perfect for those hard to reach areas.
Details Additional Info Data Sheet Manual
The Elsys EMS Lite is a small but powerful leak sensor perfect for monitoring indoor environments.
Inside the EMS Lite, you will find internal sensors for measuring temperature, humidity and leaks. Ideal for Smart Buildings and facility management, this leak sensor helps to optimise indoor environments. The device can also raise alerts if/when a water leak occurs.
With a unique compact form factor, this leak sensor is ideal for mounting in hard-to-reach areas, such as just below a dishwasher.
Equipped with NFC, the Elsys EMS Lite leak sensor can be easily configured with an Android phone. Through this functionality, you can change the sample rate, encryption keys, triggers, activation plus much more.
Ideal for a wide range of applications, the Elsys EMS Lite is suitable for:
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.3 |
| Device Type | Class A / C (Configurable) End-Device |
| Supported Regions | EU868 (Other frequencies available on request) |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm EIRP (Region Specific) |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| Temperature Sensor | |
| Accuracy | ± 0.2°C (Typical) |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Accuracy | ± 2% RH at 25°C |
| Resolution | 1% RH |
| Water Leak Detector | |
| Detection Method | Conductive Probes on Back Panel — Continuously Monitored |
| Status Output | Dry (0) / Wet (1) — Periodic Status Report + Immediate Alarm on Detection |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Sampling Interval | Configurable via NFC or Downlink |
| Data Upload Interval | Configurable via NFC or Downlink |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Dimensions | 21.2 × 74.9 × 20.8 mm |
| Weight | 10 g (Excluding Battery), 30 g (Including Battery) |
| Housing & Material | PC & ABS, White (Other Colours Available on Request) |
| Installation | Wall Mounting, Under-Appliance Mounting, or Any Flat Surface via Adhesive Tape or Screws |
| Operating Temperature | 0°C ~ +50°C |
| Relative Humidity | 0% ~ 85% RH (Non-condensing) |
| Ingress Protection | IP30 |
| Power Supply | 1 × 3.6V AA ER14505 Lithium Battery (Not Included) |
| Battery Life | Up to 10 Years (Depending on Configuration and Environment) |
