SKU: EMS2DOOR
Elsys EMS Door LoRaWAN sensors can easily detect the open/closed status of doors and windows which makes them perfect for your smart building, smart home and smart office projects.
Details Additional Info Data Sheet

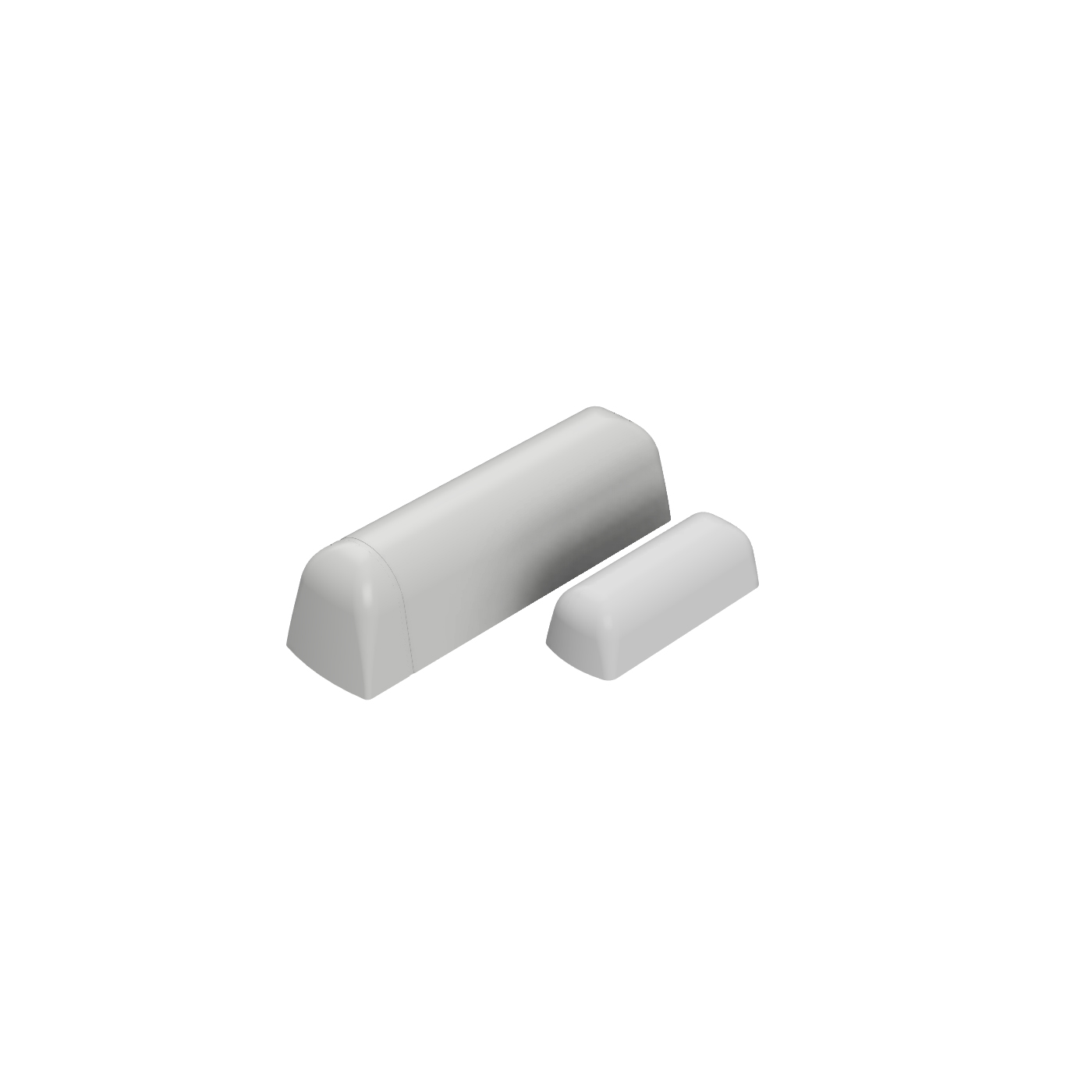

Elsys EMS Door Detection LoRaWAN® sensors can easily detect the open/closed status of doors and windows, which makes them perfect for your smart building, smart home and smart office projects.
LoRaWAN® door contact sensors are the future of smart security. These devices can be used for commercial and residential properties to monitor access. They can be used to alert property owners to an unlocked door or window in a restricted area. This can be particularly useful when monitoring IT server (clean) rooms, freezers or temperature-controlled areas and loading bays.
This mini sensor can be added to your existing LoRaWAN® security network. It is ideal for areas where access needs to be monitored.
The EMS Door sensor sends an alert message to a centralised monitoring system via the LoRaWAN® protocol when a window or door is opened.
Ideal for a wide range of applications, including:
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.3 |
| Device Type | Class A / C (Configurable) End-Device |
| Supported Regions | EU868 (Others Available on Request) |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm EIRP (Region Specific) |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| Door Activity Sensor | |
| Detection Method | Reed Switch (Magnetic) |
| Status Output | Open (1) / Closed (0) |
| Magnet Included | Yes — for mounting on the moving part (door, window, etc.) |
| Accelerometer | |
| Detection | 3-Axis (X, Y, Z) — Knock Detection & Orientation Change |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Triggered Uplink | Immediate Alert on Door Open / Close Event (Configurable) |
| Sampling Interval | Configurable via NFC or Downlink |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Main Body Dimensions | 21.2 × 74.9 × 20.8 mm |
| Magnet Dimensions | 15.57 × 40.67 × 12 mm |
| Weight | 10 g (Excluding Battery), 30 g (Including Battery) |
| Housing & Material | PC & ABS, White |

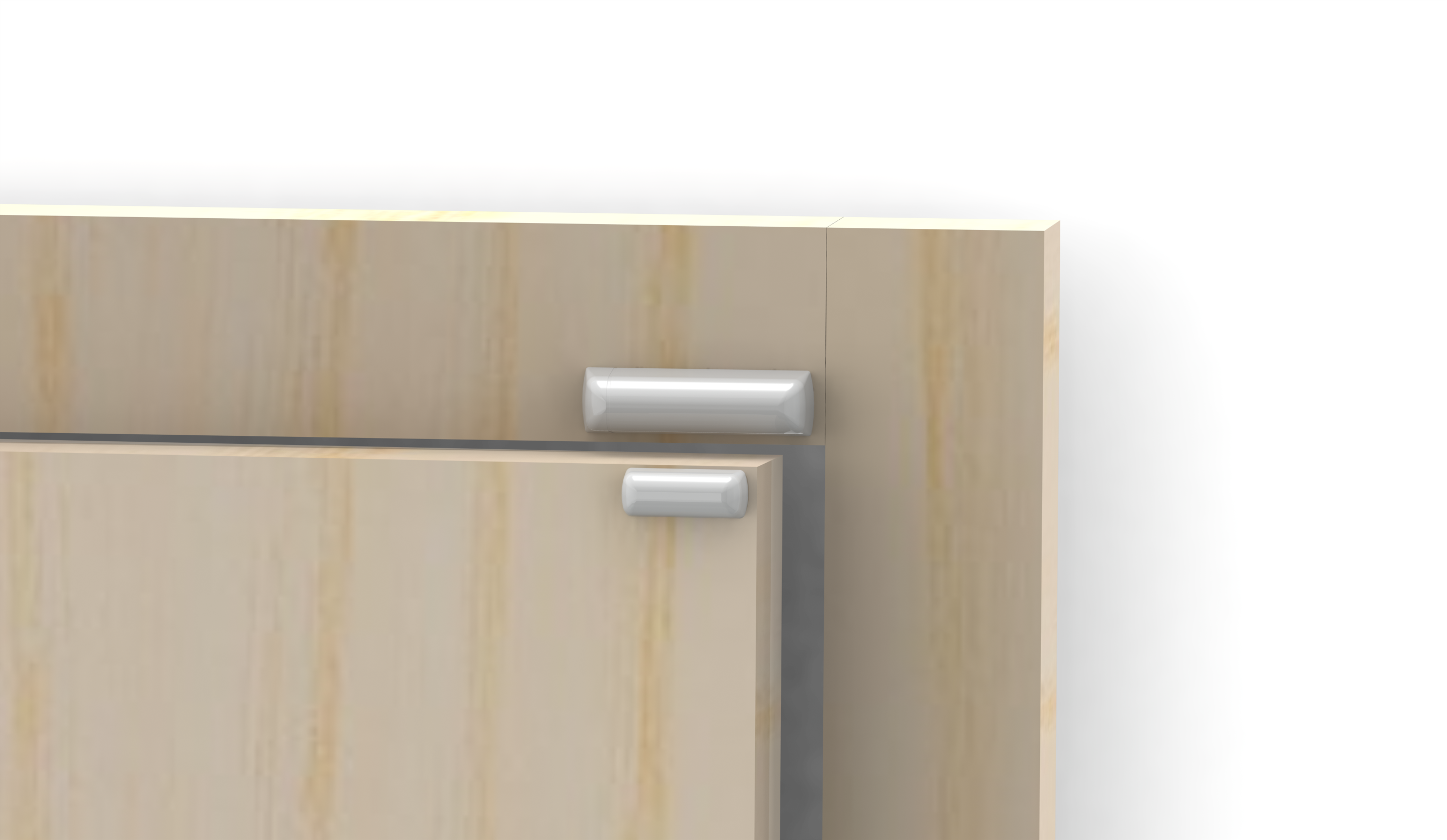

| Installation | Adhesive Tape or Screw Mounting — Door Frames, Window Panes, Cabinets |
| Operating Temperature | 0°C ~ +50°C |
| Relative Humidity | 0% ~ 85% RH (Non-condensing) |
| Ingress Protection | IP20 |
| Power Supply | 1 × 3.6V AA ER14505 Lithium Battery (Not Included) |
| Battery Life | Up to 10 Years (Depending on Configuration and Environment) |
