SKU: ERSECO2LITE-L
Your answer to ultra-sustainable, ECO-friendly climate monitoring.
Details Additional Info Manual

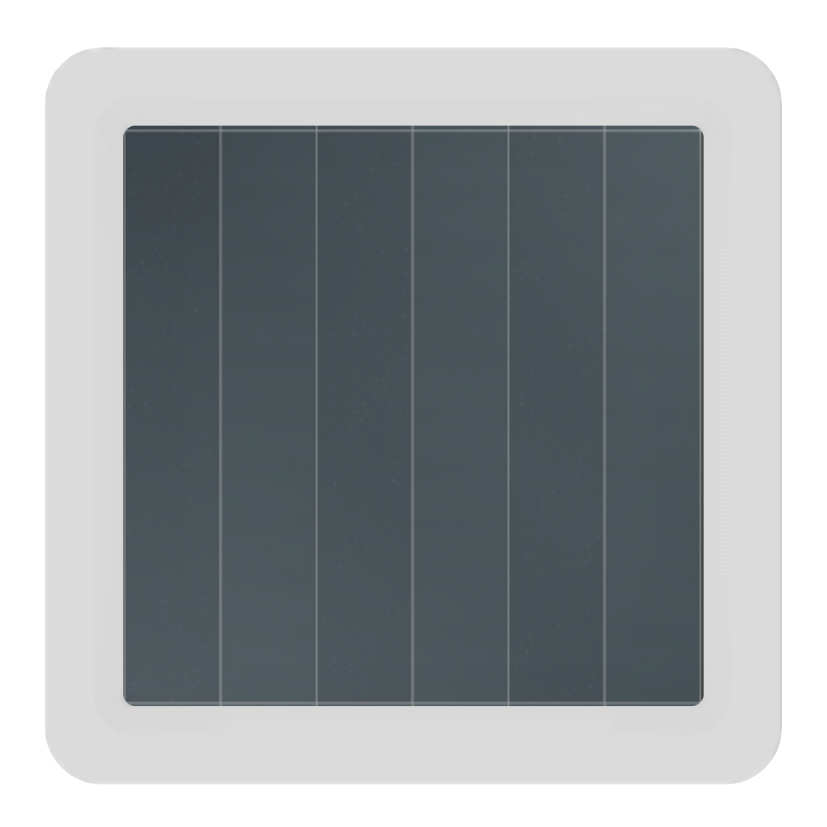

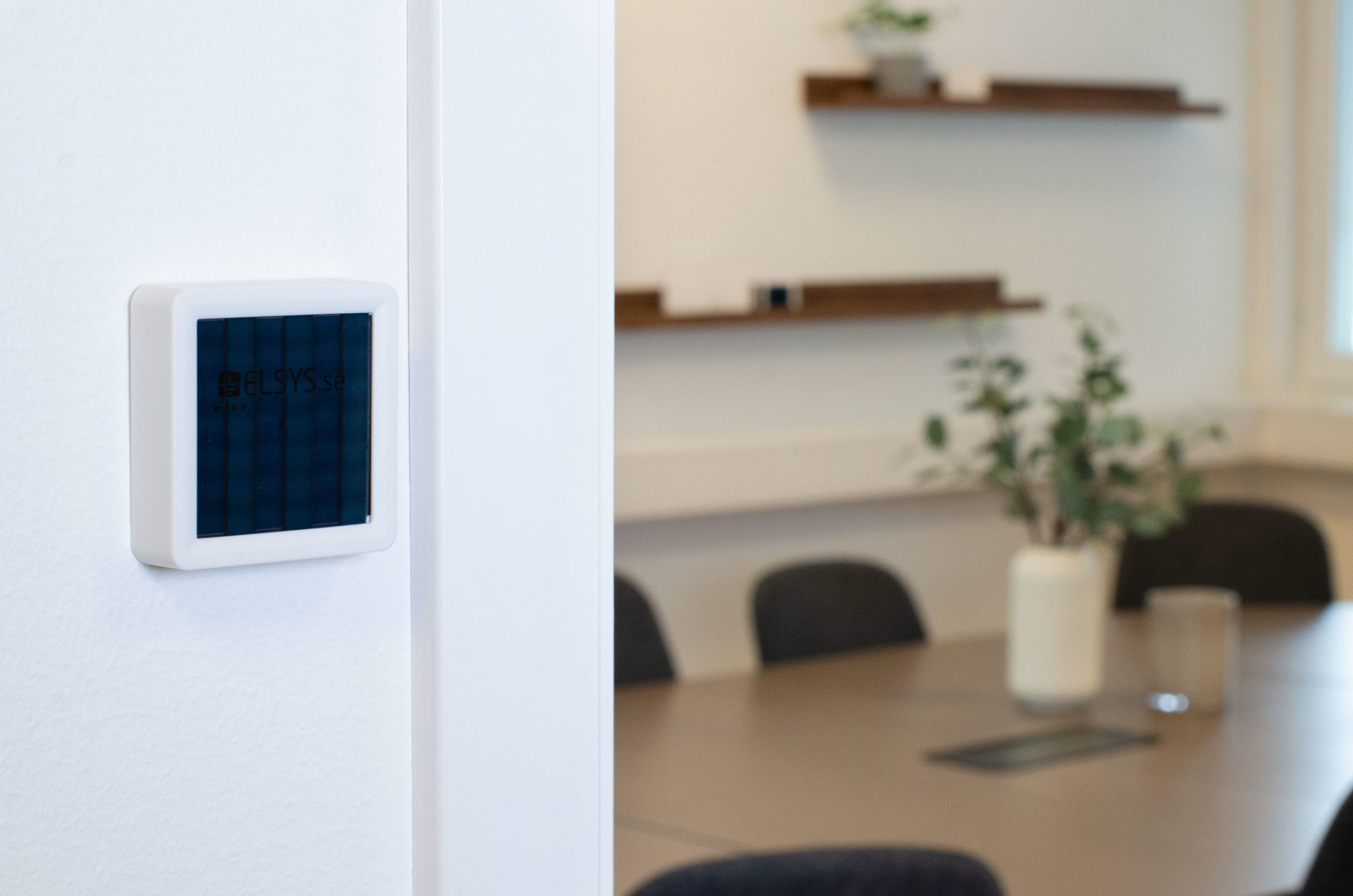

Introducing the Elsys Eco CO2 Lite LoRaWAN Sensor. Measure temperature, humidity and CO2 levels with this all-in-one climate sensor, which relies on solar power and LoRaWAN connectivity for environmentally friendly climate control. Made from biodegradable materials, you can keep your site's ambience in check without compromising on your sustainability goals.
Save on maintenance costs and reduce your carbon footprint while keeping your stakeholders comfortable and healthy with the device’s intuitive self-adapting feature. Lower consumption, lower network load, and reduced data usage. The device helps you stick to what counts, minimising redundant data. Solar powering gives you up to 30 days in the dark, meaning you’ve got high-impact tracking with minimal impact on the environment.
No WiFi required, with LoRaWAN connectivity helping you cover all bases. Even remote spaces with minimal or patchy network can keep tabs on the ambient conditions, for a workspace that puts stakeholder comfort and genuine environmental awareness at the top of the priority list.
We can supply a third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.4 |
| Device Type | Class A (Configurable) End-Device |
| Supported Regions | EU868 (Other frequencies available on request) |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm EIRP |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| CO² Sensor (NDIR) | |
| Range | 400 ~ 5,000 ppm |
| Accuracy | ± 30 ppm + ± 3% of reading (15 ~ 35°C, 0 ~ 80% RH) |
| Resolution | 1 ppm |
| Temperature Sensor | |
| Accuracy | ± 0.2°C (Typical) |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Accuracy | ± 2% RH at 25°C |
| Resolution | 1% RH |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Sampling Interval | Configurable via NFC or Downlink |
| Data Upload Interval | Configurable via NFC or Downlink |
| Power-Saving Mode | Adaptive Transmission — Only Sends Data When Measured Values Change |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Dimensions | 66 × 66 × 17 mm |
| Weight | 37.5 g |
| Housing & Material | Biodolomer (Biodegradable Plastic), White |
| Solar Cell | Organic Indoor Solar Cell (Built-in, No Batteries Required) |
| Installation | Wall Mounting via Screw or Adhesive Tape |
| Operating Temperature | 0°C ~ +40°C |
| Relative Humidity | 0% ~ 85% RH (Non-condensing) |
| Ingress Protection | IP20 |
| Power Source | Organic Indoor Solar Cell with Lithium-Ion Capacitor (LIC) Backup — No Replaceable Batteries |
| Dark Autonomy | Up to 30 Days in the Dark (Depending on Configuration and Environment) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
