HBI Eagle 300 Indoor Emergency Light Series

Product Description

Introducing the HBI Eagle Indoor Emergency Light 300 Series. Expertly engineered for absolute versatility, this high-performance LoRaWAN® device is the go-to multi-functional solution for modern built environments. Whether deployed as a striking exit sign, a reliable emergency lighting fitting, or robust general illumination, the Series 300 Eagle delivers crucial safety for building environments.

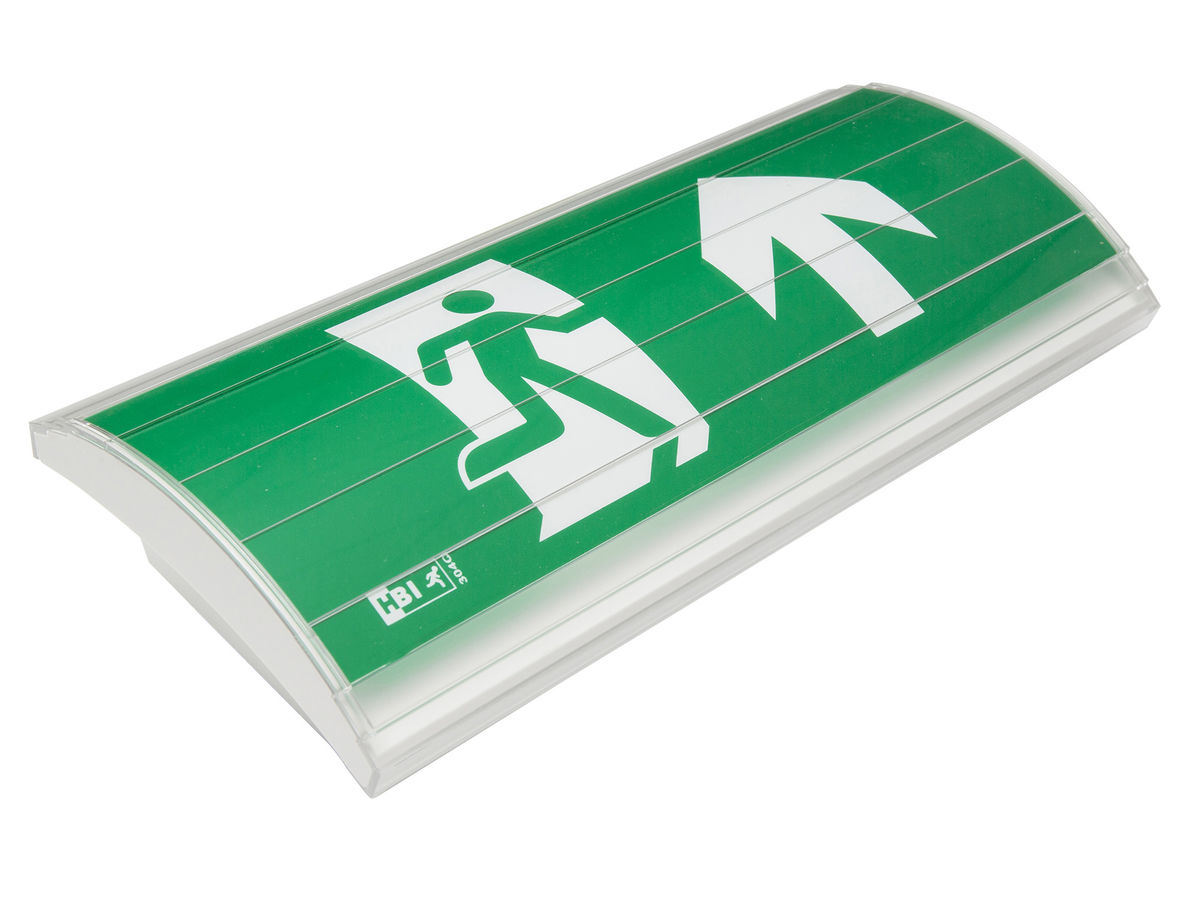

Mainly used as an indoor emergency light, the HBI Eagle is suitable as an indoor exit sign.

Suitable for applications, including:

Serviced Offices
Healthcare
Manufacturing
Hospitality
Education
Retail

Why use LoRaWAN® for Emergency Lighting?

No Mesh, No Repeaters: It uses a direct, long-range signal. This eliminates complex routing and cuts down on network failures.
Built for Small Data: Emergency lights only send tiny status updates. LoRaWAN is tailor-made for this.
Saves Batteries: It consumes very little power, keeping backup batteries alive when they matter most.
Easy and Scalable: You can scale it effortlessly without vendor lock-in. It retrofits into existing fixtures and works seamlessly with other technology.

Address your emergency compliance requirements effortlessly with LoRaWAN automated power and backup management. Operating dynamically via a long-life internal battery pack, the system automatically manages its state to provide a bright, dependable pathway routing during power interruptions and critical building evacuations. With automated digital records, it’s the perfect solution to demonstrate compliance and take action when needed without having to carry out unnecessary site visits.

Utilising LoRaWAN® technology, these models of the Series Eagle Indoor Emergency Light are completely wireless-ready for management. The device can transmit automated function test results and status data to a connected LoRaWAN® gateway, allowing for remote monitoring and efficient maintenance through your chosen network server or platform such as Checksight. Platforms such as Checksight enable HBI LoRaWAN Emergency Lights to automate emergency lighting compliance.

Variants Available

Part Number	Description
3Y0606C	Extremely Installation-friendly emergency light due to simple clamping construction of the interior and shade. Multifunctional use.
3Y0606F	Suitable for wall and ceiling mounting. Ideal for use in (basement) corridors and stairwells.
3Y0606BW	LoRaWAN® enabled Emergency Lighting device with long battery life, suitable for basements and stairwells.
3Y0606V	Ideal for use in office buildings, shops, restaurants, care and educational establishments.

Features

Easy installation via snap connections
Multifunctional use
Designed for long service life
Manually adjustable: continuous & emergency or emergency only
Light and motion sensor levels are adjustable
Long-life battery technology
Pictograms can be specified upon ordering to suit the installation environment, tailored to the project requirement.

Parameters

Optical
Light Source	6W LED
Colour Temperature	4000 K
Luminous Flux	585 lm (100%), 468 lm (80%), 351 lm (60%), 234 lm (40%), 117 lm (20%)
Luminous Flux (Emergency)	300 lm (1 h) ~ 100 lm (3 h)
Colour Rendering Index (Ra)	> 80
Optics	Fresnel
Reading Distance	25 m
Rated Lifetime	> 100,000 hrs (L80/B10)
Electrical
Supply Voltage	230V AC/DC
Functionality	Battery Pack, Low / High (Dimmable)
Power Factor	0.9
Insulation Class	Class II
Emergency & Control
Autonomy	1 Hour ~ 3 Hours (Adjustable)
Maintained / Non-Maintained	Adjustable
Autotest (ATS)	Yes
LoRa Node	Yes (LoRaWAN®)
Motion Sensor	Not Included
Light Sensor	Not Included
Battery Warming	Not Included

Family	Series 300 EAGLE
Application	Exit Sign
Assembly	Surface Mount, Wall
Housing Colour	Grey, RAL 7035
Housing Material	Polycarbonate
Ambient Temperature	Average 0°C ~ +25°C
Ingress Protection	IP42
Impact Resistance	IK08
EAN	8718309388492

Power Supply	230V AC/DC
Battery Pack	NiMh 3.6V, 2.2 Ah Long Life / High Temperature
