HBI Fortem 440 Emergency Lighting Series

Product Description

Discover a new world of Dynamic Emergency Lighting with the Series 440 Fortem from HBI. With LED lighting from LEDOLOGY and LoRaWAN® technology, this device guarantees safe and comfortable lighting with the highest energy savings. The Series 440 Fortem is designed to be durable, thanks to a circular design and features using the latest battery technology.

The HBI Fortem 400 Series is ideally suited for both indoor and outdoor environments, providing a durable emergency lighting and exit sign solution with excellent impact resistance. Its robust design makes it particularly suitable for demanding applications such as industrial facilities, swimming pools and gyms.

Suitable for applications such as:

Stairwells, porches, galleries and entrances
Basements, storerooms, car parks
Industrial and technical environments

Why use LoRaWAN® for Emergency Lighting?

No Mesh, No Repeaters: It uses a direct, long-range signal. This eliminates complex routing and cuts down on network failures.
Built for Small Data: Emergency lights only send tiny status updates. LoRaWAN is tailor-made for this.
Saves Batteries: It consumes very little power, keeping backup batteries alive when they matter most.
Easy and Scalable: You can scale it effortlessly without vendor lock-in. It retrofits into existing fixtures and works seamlessly with other technology.

Address your emergency compliance requirements effortlessly with LoRaWAN automated power and backup management. Operating dynamically via a long-life internal battery pack, the system automatically manages its state to provide a bright, dependable pathway routing during power interruptions and critical building evacuations. With automated digital records, it’s the perfect solution to demonstrate compliance, and take action when needed without having to carry out unnecessary site visits.

Utilising LoRaWAN® technology, these models of the HBI Series 440 Emergency Lighting Series are completely wireless-ready for management. The device can transmit automated function test results and status data to a connected LoRaWAN® gateway, allowing for remote monitoring and efficient maintenance through your chosen network server or platform such as Checksight.

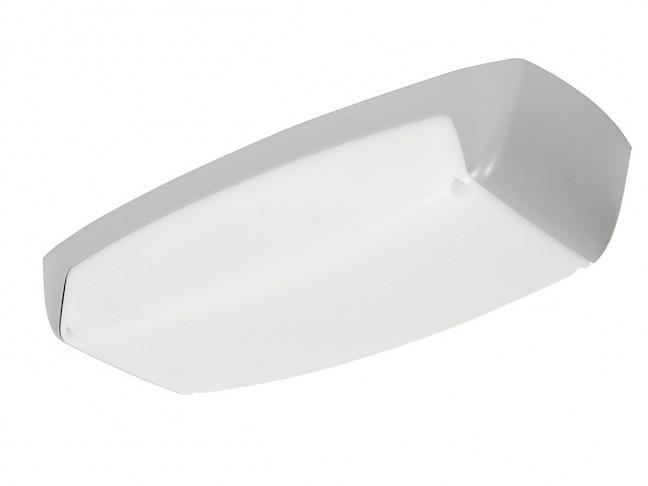

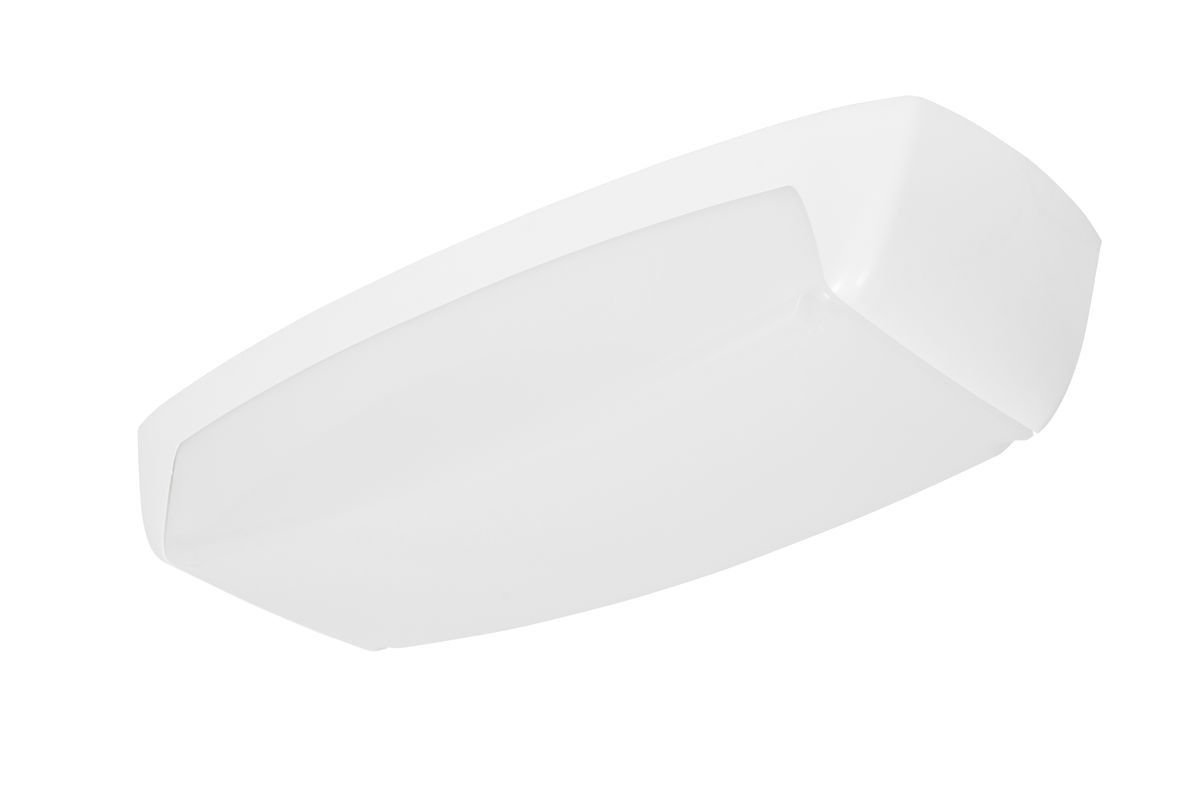

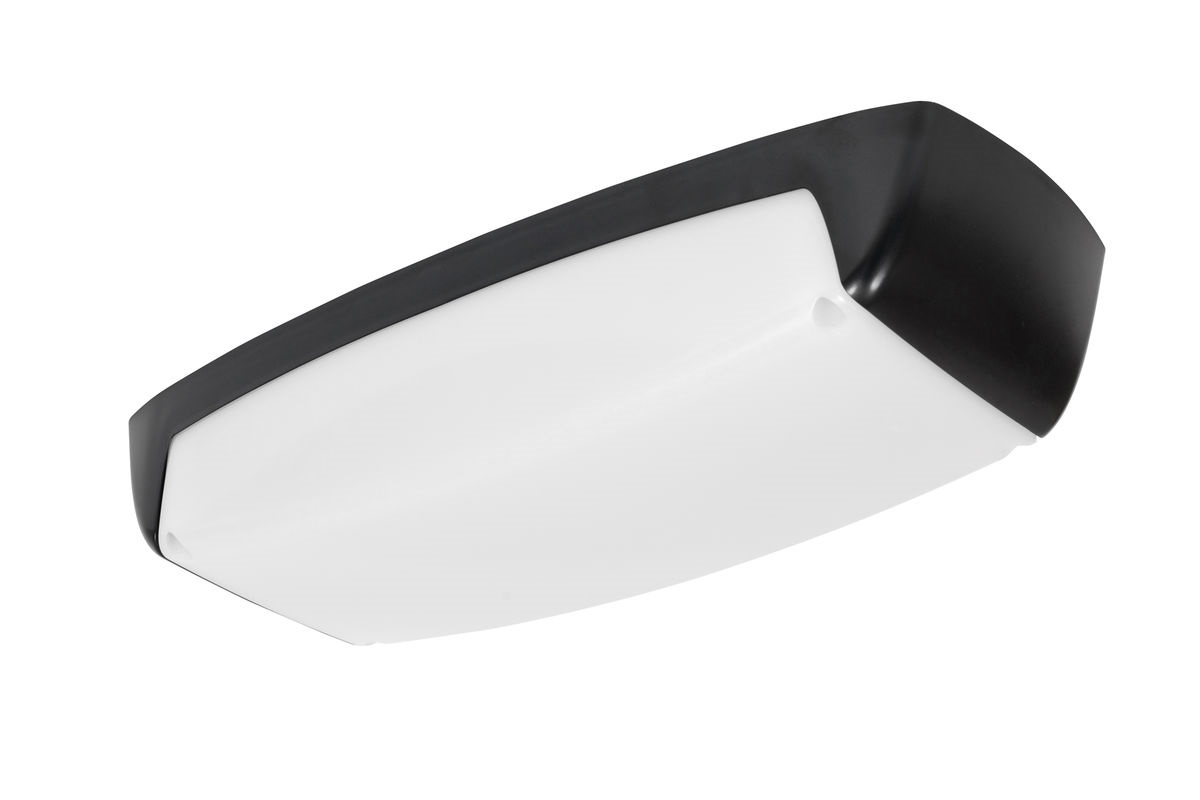

The HBI Fortem 440 Series is available in 3000K warm white and 4000K neutral white colour temperatures, with a choice of black, grey or white casings to suit different environments and installation requirements.

Variants Available

Part Number	Colour	Colour Temperature	LoRa
4XY0909B3K	Black	3000K	✓
4XY0909B	Black	4000K	✓
4XY0909BW	Black / White Tray	4000K	✓
4XY0909G3K	Grey	3000K	✓
4XY0909G	Grey	4000K	✓
4XY0909W3K	White	3000K	✓
4XY0909W	White	4000K	✓

Features

LoRaWAN® Compliant Device
Adjustable Light Levels (100%, 80%, 60%, 40%, 20%)
The sensitivity of sensors is adjustable
Battery life of up to 10 years
Can be used as both indoor and outdoor exit signs

Parameters

Optical
Light Source	9W LED
Colour Temperature	4000 K
Luminous Flux	750 lm (100%), 600 lm (80%), 450 lm (60%), 300 lm (40%), 150 lm (20%)
Colour Rendering Index (Ra)	> 80
Optics	Diffuser
Rated Lifetime	> 100,000 hrs (L80/B10)
Electrical
Supply Voltage	230V AC/DC
Functionality	Low / High (Dimmable)
Power Consumption	8 W (100%), 6.4 W (80%), 4.8 W (60%), 3.2 W (40%), 1.6 W (20%)
Power Factor	0.9
Insulation Class	Class II
Control & Sensors
Motion Sensor	Not Included
Light Sensor	Not Included
LoRa Node	Not Included

Family	Series 440 FORTEM
Application	General Lighting
Assembly	Surface Mount, Ceiling, Wall
Packaging Dimensions (L × W × H)	410 × 180 × 85 mm
Weight	1070 g
Housing Colour	White, RAL9003
Housing Material	Polycarbonate
Ambient Temperature	Average -20°C ~ +25°C
Ingress Protection	IP65
Impact Resistance	3 × IK10
EAN	8718309389666

Power Supply	230V AC/DC
Power Consumption	8 W (100%), 6.4 W (80%), 4.8 W (60%), 3.2 W (40%), 1.6 W (20%)

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® People Counting sensors to suit specific project requirements.
