SKU: PDTIOT-WAV02

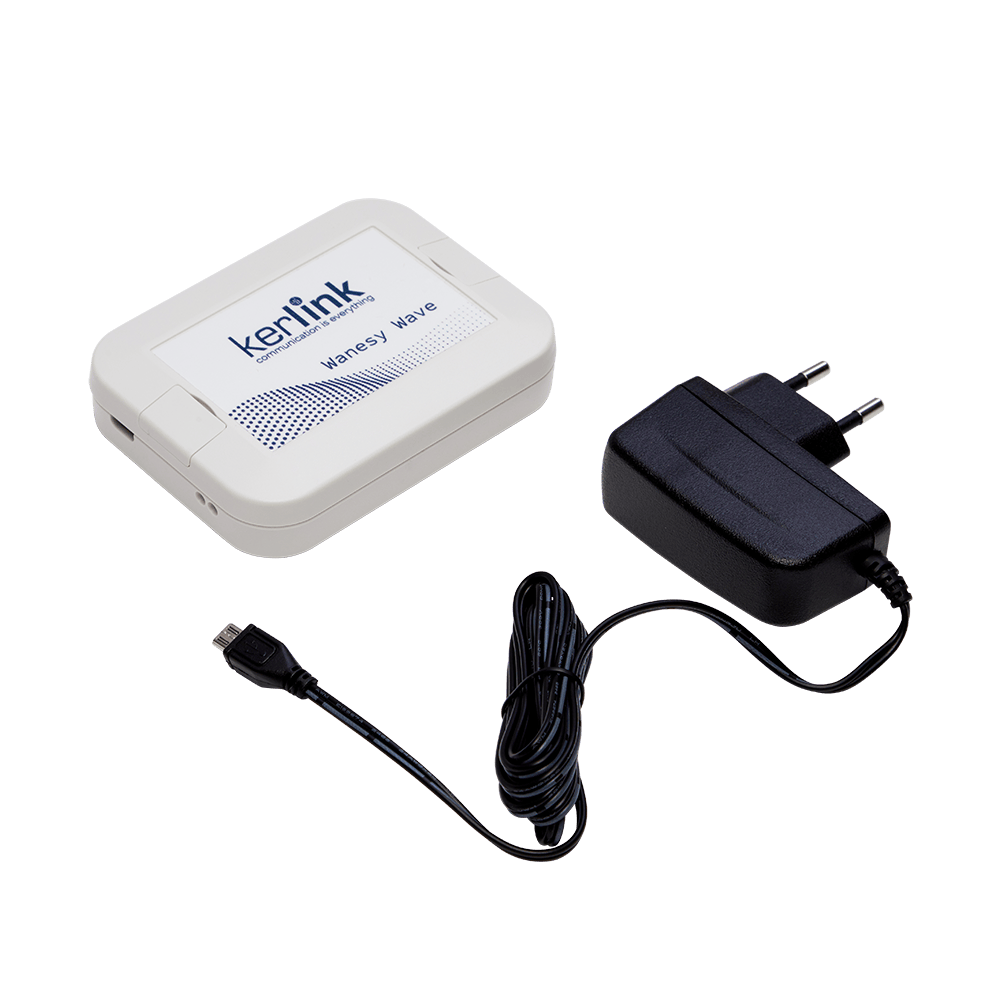

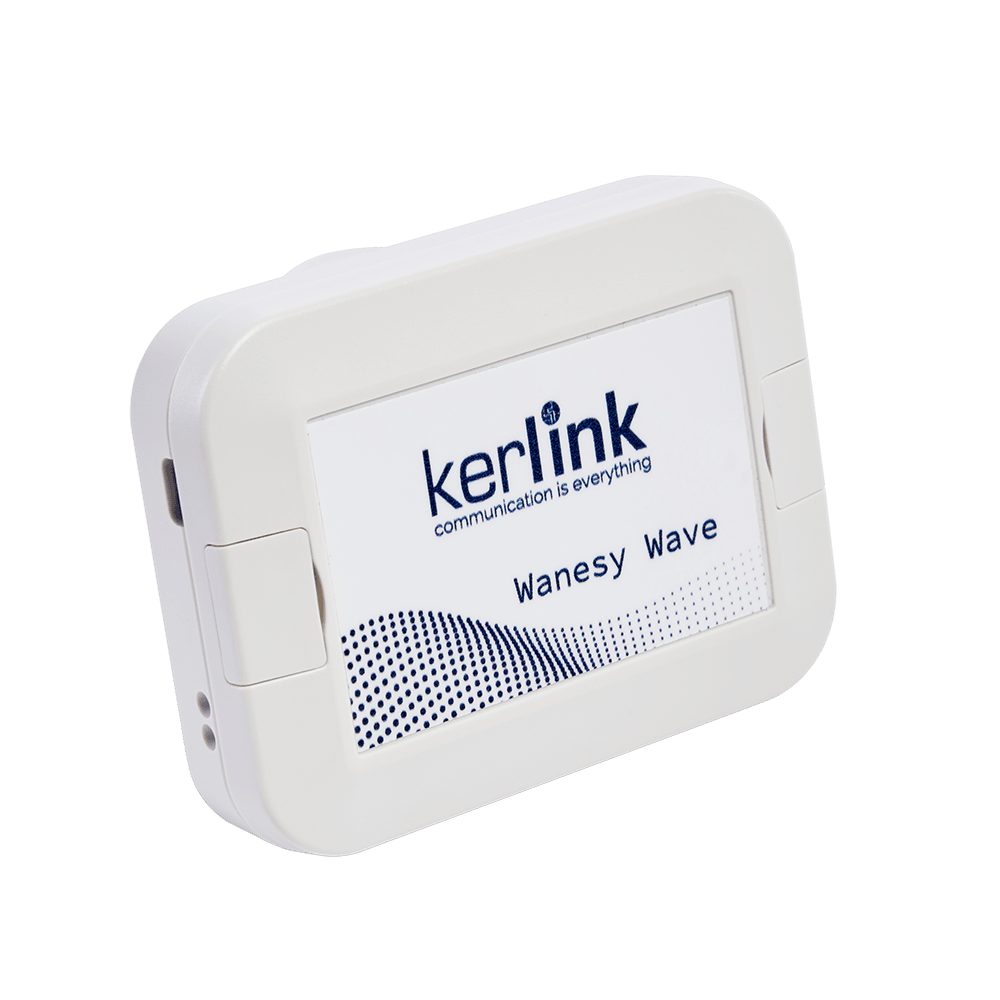

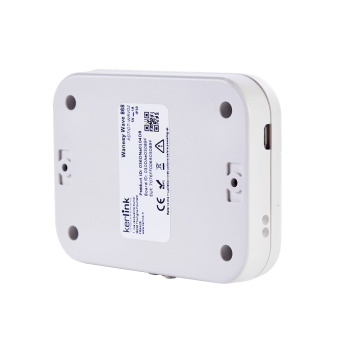

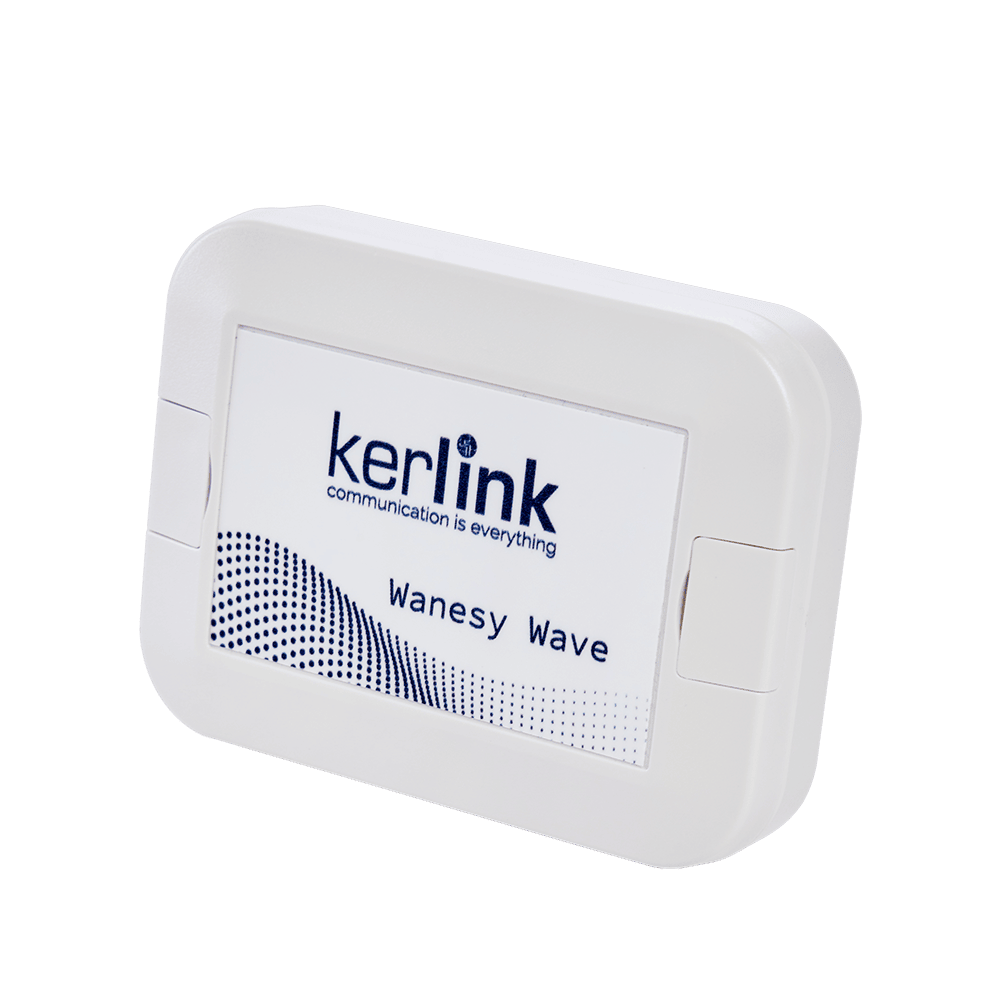

The Kerlink Wanesy Wave Indoor Positioning System (IPS) combines WiFi and BLE (Bluetooth Low Energy) with LoRaWAN to provide reliable tracking of people and assets indoors.
Details Additional Info Data Sheet
Variants:
The Kerlink Wanesy Wave Indoor Positioning System (IPS) combines WiFi and BLE (Bluetooth Low Energy) with LoRaWAN® to provide reliable tracking of people and assets indoors.
The Wanesy Wave acts as an anchor which can detect Bluetooth or WiFi signals from a range of devices. The anchor tracks these signals to report accurate asset locations within a certain area. It then anonymises the data and sends it on to the LoRaWAN® gateway. The data is then transferred through LoRa radio waves to your LoRaWAN® network server and then on to a cloud-based user interface.
Data is then sent to an analysis dashboard of your choice. From the user dashboard, you can see key parameters such as:
Ideal for a wide range of applications, including:
⚠ LoRaWAN® counters are not intended for real-time notification; recorded data will be periodically transmitted based on your chosen configuration. Sensor accuracy will rely on network resiliency and the device manufacturer.
| Variant | Wi-Fi Scanning | BLE Scanning | Smart Traffik Analytics | LoRaWAN Backhaul |
|---|---|---|---|---|
| Wanesy Wave | ✓ | ✓ | X | ✓ |
| Wanesy Wave with Smart Traffik | ✓ | ✓ | ✓ | ✓ |
| Wireless Connectivity | |
|---|---|
| Backhaul Connectivity | LoRaWAN® Backhaul |
| Supported LoRaWAN® Regional Parameters | EU868 (Others Available on Request) |
| TX Conducted Power | Up to 15 dBm (SX1261) or 22 dBm (SX1262) |
| RX Sensitivity | BLE Radio: Down to -97 dBm Wi-Fi Radio: Down to -98 dBm |
| Antenna | Integrated LoRa®, Wi-Fi and BLE Antennas |
| Dimensions | 100 × 75 × 22 mm |
| Weight | 74 g |
| Casing | IP30 |
| Operating Temperature | -20°C to +55°C |
| Primary Power Supply | 5V DC via USB Connector |
| Backup Power | 3.0V Backup Battery Solution for USB Power Disconnection Management |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
Our technical sales team are also happy to advise customers on the best LoRaWAN® Smart Tracking Solutions to suit specific project requirements.
Certifications
