Discover smart indoor ambience monitoring with the AM103 Series.
Details Additional Info Data Sheet Manual
Variants:
The Milesight AM103 series is a professional-grade solution designed specifically for monitoring indoor air quality. Ideal for a wide range of applications, these smart devices are housed in a discreet, modern enclosure that fits seamlessly into any indoor environment.
By combining multiple sensors into one compact device, the AM103 series monitors essential environmental factors including CO2 levels, temperature, and humidity. This allows for real-time tracking of air freshness and occupant comfort.

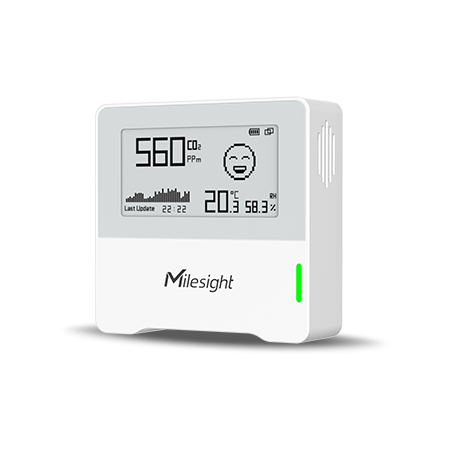

Equipped with an advanced E-Ink display, the Milesight AM103 offers exceptional clarity and visibility, even in areas with high sunlight glare. To maximise efficiency, the sensor features a "Smart Screen Mode"; the display stops updating if no motion is detected for 20 consecutive minutes, significantly conserving power and prolonging battery life.
Recorded data is transmitted over a LoRaWAN® network, helping to address any privacy concerns. Based on the standard LoRaWAN® protocol, the AM103 Series connects to a LoRaWAN® gateway and can then be visualised by your preferred dashboard or through Milesight's IoT Cloud.

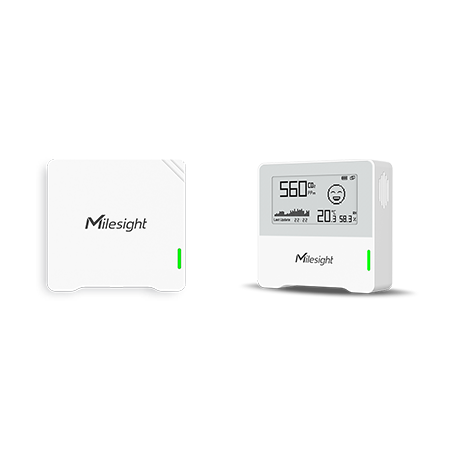

| Product Code | Colour | E-Ink Screen |
|---|---|---|
| AM103 | White | ✓ 2.13" Black & White |

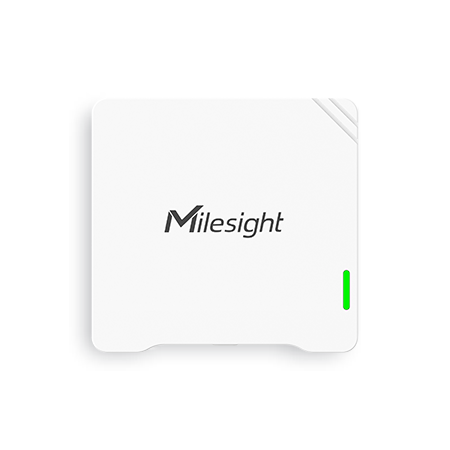

| AM103L | White | X |
| AM103 | AM103L | |
|---|---|---|
| Temperature Range | -20°C ~ 70°C | -20°C ~ 70°C |
| Temperature Accuracy | 0°C ~ 70°C (± 0.3°C), -20°C ~ 0°C (± 0.6°C) | 0°C ~ 70°C (± 0.3°C), -20°C ~ 0°C (± 0.6°C) |
| Temperature Resolution | 0.1°C | 0.1°C |
| Humidity Range | 0% ~ 100% RH | 0% ~ 100% RH |
| Humidity Accuracy | 10% ~ 90% (± 3%), below 10% and above 90% RH (± 5%) | 10% ~ 90% (± 3%), below 10% and above 90% RH (± 5%) |
| Humidity Resolution | 0.5% RH | 0.5% RH |
| CO2 Range | 400 ~ 5000 ppm | 400 ~ 5000 ppm |
| CO2 Accuracy | ± (30 ppm + 3% of reading) | ± (30 ppm + 3% of reading) |
| CO2 Resolution | 1 ppm | 1 ppm |
| Dimensions | 105 x 70.4 x 21.2 mm |
| Installation | Wall Mounting (Screws or 3M Tape) |
| Operating Temperature | 0°C ~ 45°C |
| Relative Humidity | 0% ~ 100% RH (Non-condensing) |
| Ingress Protection | IP30 |
| Power Supply | 2 x 1.5V AA Alkaline Batteries or via Type-C Port |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best indoor environment monitoring sensor to suit your specific project requirements.
