SKU: EG71-L08GL-868M

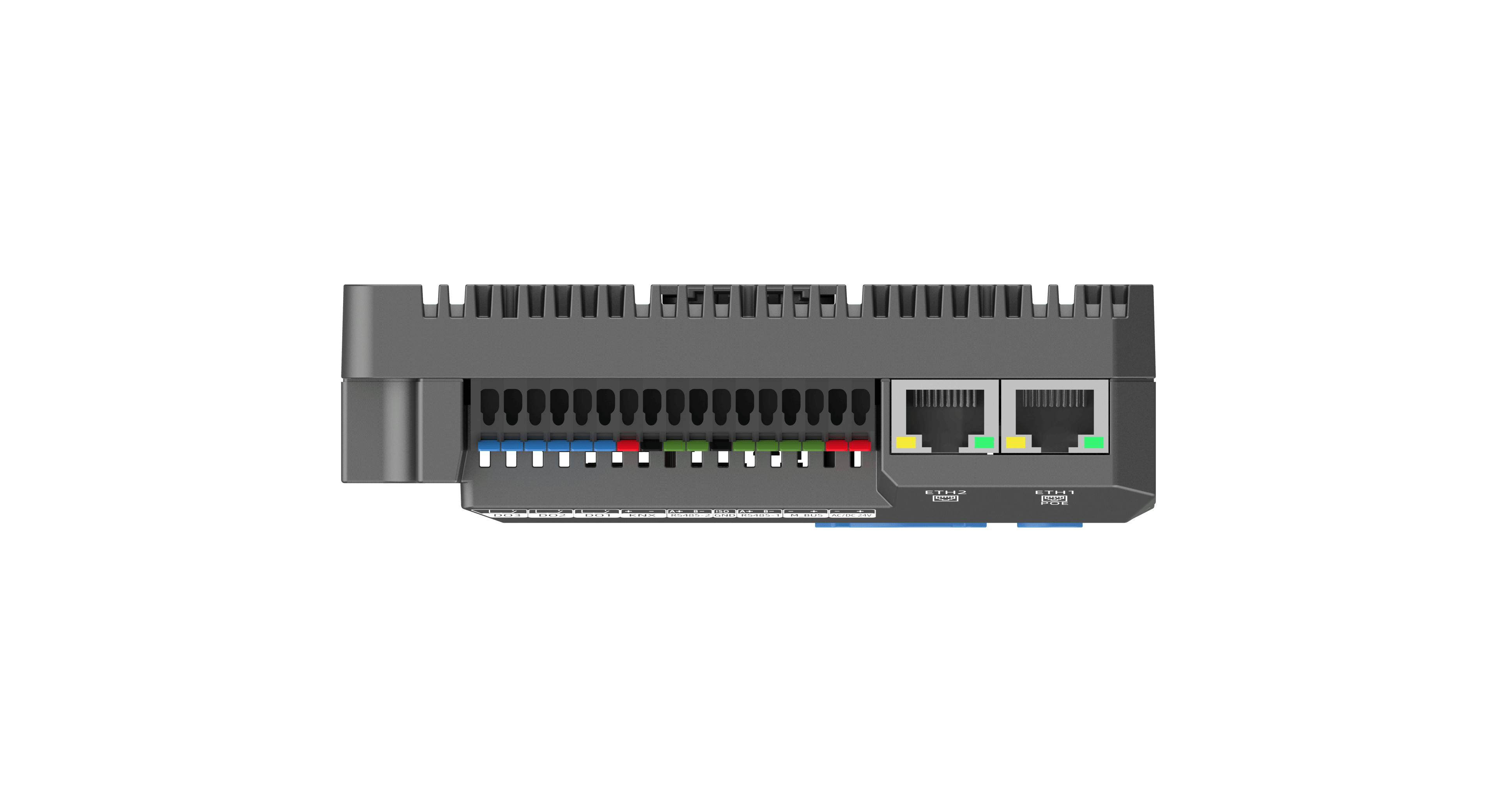

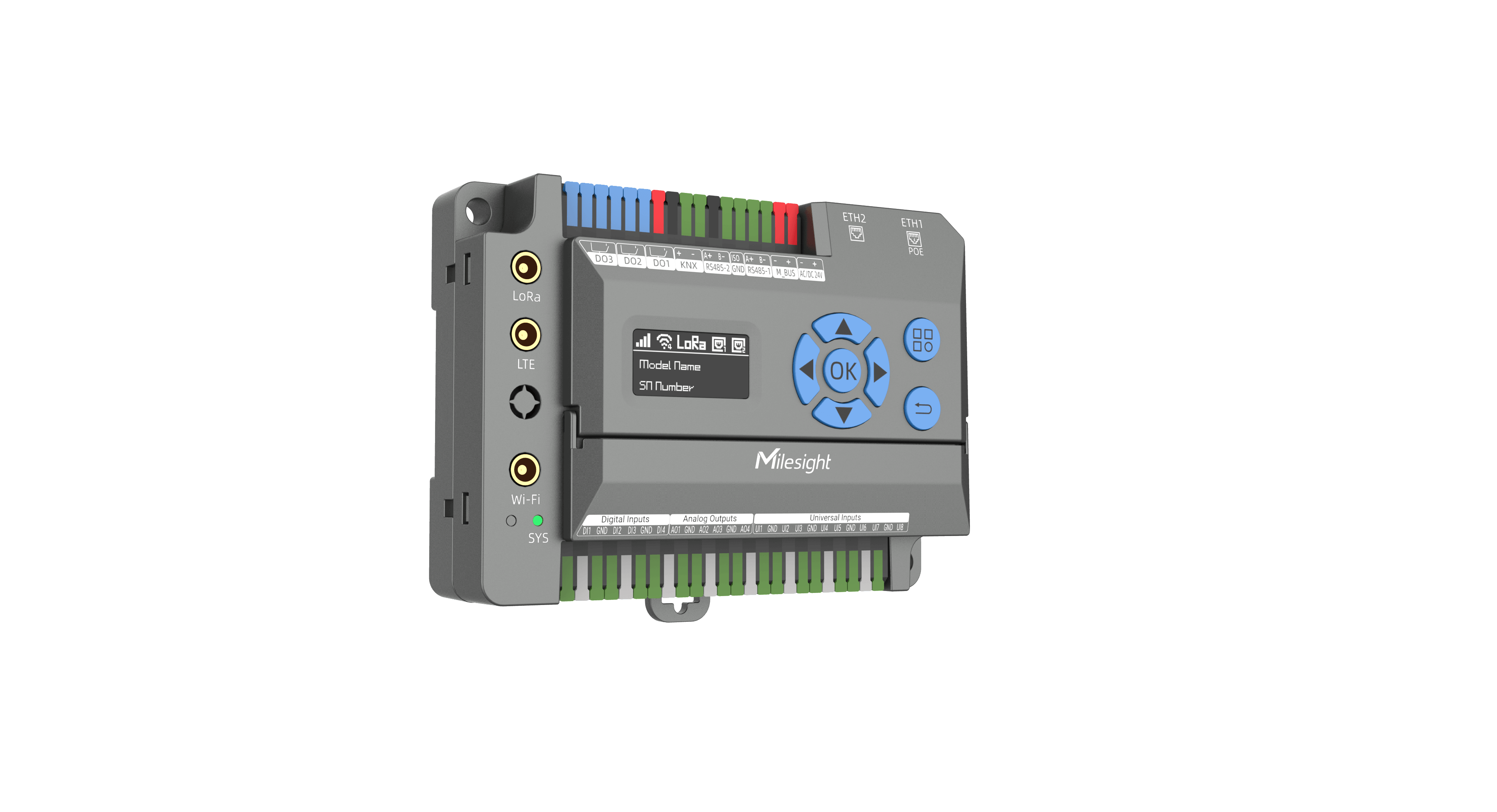

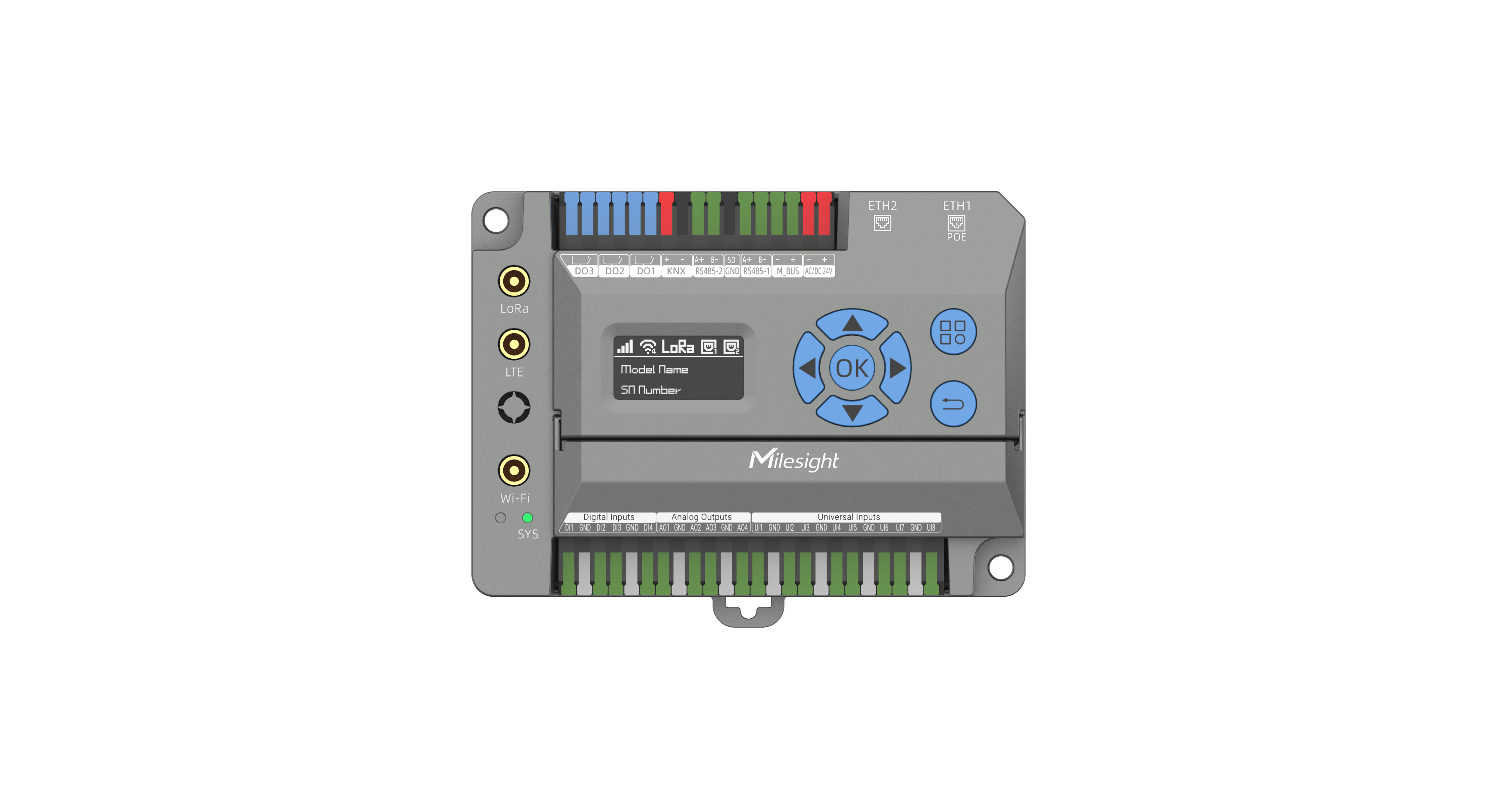

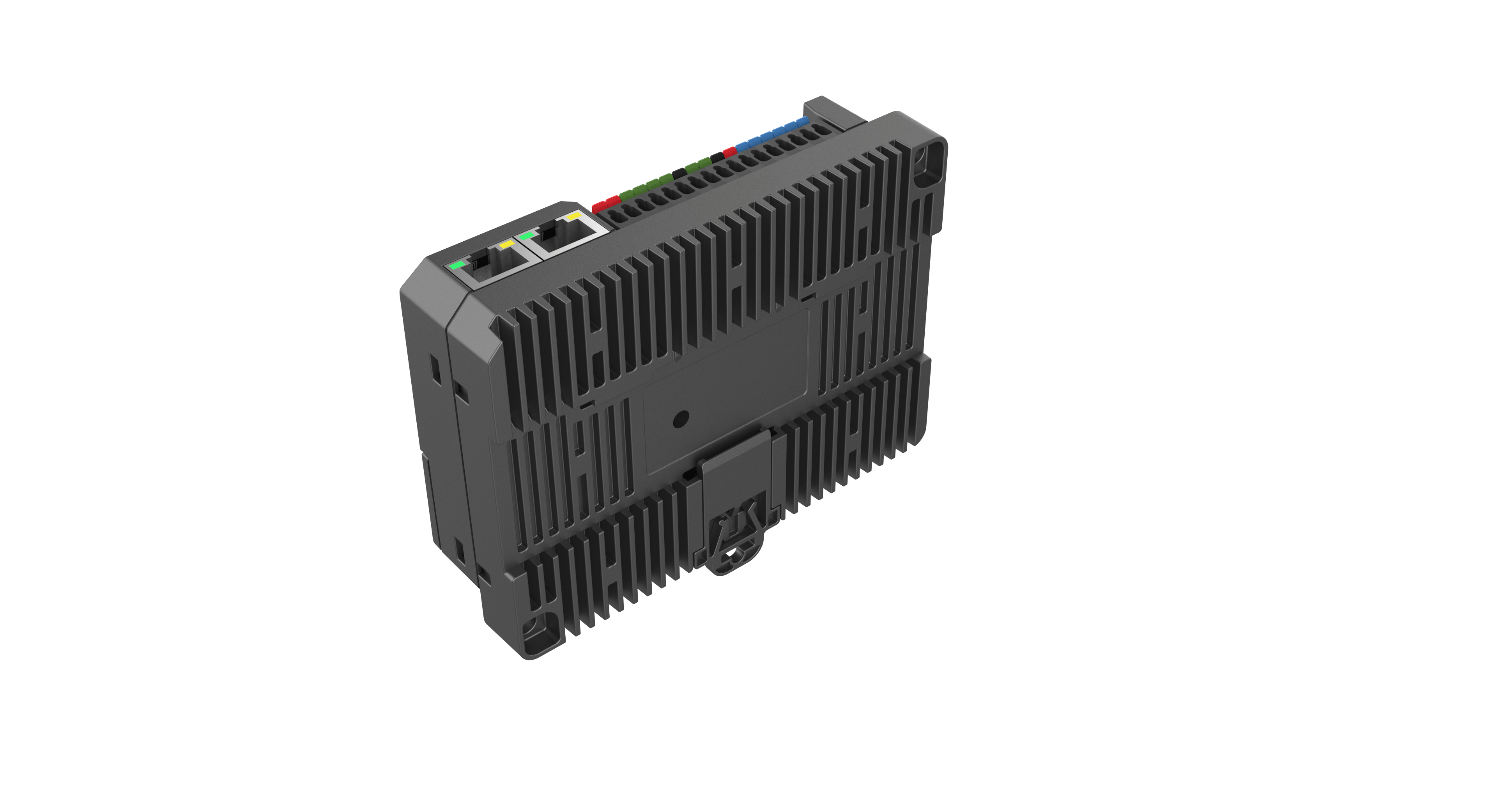

The Milesight EG71 Building IoT Gateway is an Industrial IoT gateway with LoRaWAN, edge computing, and multi-protocol connectivity, ideal for BMS environments.
Details Data Sheet Manual
Discover a new world of smart building integration with the Milesight EG71 Building IoT Gateway. Integrating wired and wireless connectivity into a single, compact device, this intelligent edge gateway simplifies data aggregation, protocol conversion and local control across your facility.
This device serves as an all-in-one hub that effortlessly bridges field-level sensors and legacy architectures with modern cloud or Building Management Systems (BMS). The EG71 minimises integration complexity and reduces on-site cabling, making it straightforward to deploy without altering your existing infrastructure. Not only this, the Milesight EG71 Building IoT Gateway is an ideal facilitator to retrofit LoRaWAN into existing BMS infrastructure.
Monitor and manage your building operations anytime, anywhere. Supporting major protocols, including Modbus, BACnet, MQTT, HTTP and KNX, the gateway facilitates local automation logic and on-site edge processing for rapid, automated system responses.
Ideal for a wide range of smart infrastructure environments, the Milesight EG71 Building IoT Gateway can be useful in:
| Processor | Quad-core 64-bit ARM Cortex-A53 @ 1.5 GHz |
| Memory | 2 GB DDR4 RAM |
| Storage | 32 GB eMMC |
| Expandable Storage | 1 × Micro SD Slot |
| LoRaWAN Channels | 8 channels (Half-duplex) |
| LoRaWAN Frequency Bands | EU868 (Other frequencies available on request) |
| LoRaWAN Sensitivity | -140 dBm @ 292 bps |
| Max TX Power | Up to 27 dBm |
| Ethernet | 2 × RJ45 (10/100/1000 Mbps, WAN/LAN configurable) |
| RS485 | 2 × RS485 ports |
| KNX | 1 × KNX/TP1 interface |
| M-Bus | 1 × M-Bus (under development) |
| Digital / Analog I/O | 8 × universal inputs, 4 × digital inputs, 3 × relay outputs, 4 × analog outputs |
| Display | 1.3-inch OLED (128 × 64) |
| Housing | PC + Aluminium Alloy |
| Dimensions | 123 × 90 × 36 mm |
| Operating Temperature | -40°C to +60°C |
| Ingress Protection | IP30 |
| Protocol Support | Modbus RTU/TCP, BACnet MS/TP & IP, KNX, MQTT(s), HTTP(s) |
| Edge Computing | Python SDK, Node-RED, Docker support |
| Network Security | OpenVPN, IPsec, PPTP, L2TP, WireGuard |
| Firewall Features | Access control, port mapping, MAC filtering, domain filtering |
| Device Management | Web UI, SSH/CLI, SNMP, remote platform management |
| Data Forwarding | MQTT, HTTP, BACnet/IP, Modbus TCP |
| Configuration | Web interface, NFC quick provisioning, remote deployment tools |
| Automation | Local edge logic, Node-RED flows, event-based control |
| Power Input | 24V DC/AC terminal block / 802.3af PoE / 5V USB Type-C |
| Power Consumption | Typical ~8.2W, Max ~11.2W |
| Backup Features | Watchdog, RTC, timer-based recovery systems |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® People Counting sensors to suit specific project requirements.
Certifications
