SKU: EM410-RDL-868M PN: EA
The Milesight EM410-RDL Distance Level Sensor can be used in areas such as sewers, rivers, reservoirs and storage tanks to monitor fill levels.
Details Additional Info Data Sheet Manual
Variants:
The Milesight EM410-RDL Distance Level Sensor is a high-performance, non-contact sensor designed for precision distance and liquid level monitoring. Using advanced millimetre-wave (mmWave) radar technology, it delivers consistent, stable readings over long ranges, even in the most challenging conditions.
The Milesight EM410-RDL is a high-performance, non-contact sensor utilising advanced 60GHz Millimetre Wave (mmWave) radar technology for precision distance and liquid level monitoring. With a highly focused 8° narrow beam angle, this advanced radar can penetrate non-conductive materials such as plastics and plants. This ensures uninterrupted, highly accurate measurements without requiring a direct line of sight, making it entirely unaffected by environmental factors like dust, steam, or overgrowth.
Ideal for a wide range of applications, including:
Built to withstand explosive atmospheres, the EM411-RDL integrates ATEX Zone 0 certification with a chemical-resistant PVDF housing and robust IP68 rating. This durable design ensures accurate monitoring and maintenance-free operation even in harsh conditions, effectively eliminating ignition risks and comprehensively safeguarding personnel and critical assets.
An ATEX version is available for the EM411-RDL only; contact us at contact@alliot.co.uk for more details.

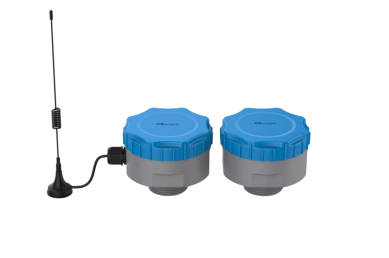

| Variant | Antenna | Protocol | Gateway Required | Battery Life |
|---|---|---|---|---|
| EM410-RDL External Antenna | External | LoRaWAN® | ✓ | Up to 10 Years |
| EM410-RDL Internal Antenna | Internal | LoRaWAN® | ✓ | Up to 10 Years |
| EM410-RDL (LoRaWAN®) | EM410-RDL-L0CEU (Cellular) | |
|---|---|---|
| Radar Distance Measurement | ||
| Technology | 60 GHz Millimetre Wave Radar | |
| Target | Liquids or Smooth Surface Solids | |
| Detection Angle | 8° | |
| Detection Range | 0.3 ~ 12 m | |
| Accuracy | Up to ± 2 mm1 / Up to ± 5 mm2 | |
| Resolution | 1 mm | |
| Wireless Transmission | ||
| Protocol | LoRaWAN® | LTE CAT 1 |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | B1/B3/B5/B7/B8/B20/B28 (EMEA, Australia & New Zealand) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) | N/A |
| Sensitivity | -137 dBm @ 300 bps | N/A |
| Mode | OTAA/ABP Class A | TCP, UDP, MQTT, AWS, Milesight Development Platform |
| SIM Slot | N/A | 1 × Nano SIM (4FF), 1.8V / 3V |
| Antenna | Internal Antenna (Standard) or External Antenna (Hardware Optional) External Antenna Version: 1 × 50 Ω SMB Male Connector |
|
| Additional Sensors & Features | ||
| Accelerometer | 3-Axis (Normal / Tilt Status Monitoring) | |
| LED Indicator | 1 × Internal LED Indicator | |
| Configuration | Mobile App via NFC or Bluetooth, Downlink | |
| Advanced Features | Distance Threshold Alarm, Distance Change Alarm, Blind Zone Alarm, Radar-Echo Curve, One-Click Diagnostic, Data Storage (2,000 Entries), Data Retransmission | |
| Cloud Compatibility | Milesight Development Platform, AWS IoT, ChirpStack, TTN | |
| EM410-RDL | EM410-RDL-L0CEU | |
|---|---|---|
| Dimensions | 101 × 87 mm ( 3.98 × 3.43 in) | |
| Weight | 400 g | |
| Housing & Colour | PVDF (UL94 V0), Blue & Grey | |
| Supported Tank Thread | G 1½” or NPT 1½” (Hardware Optional) | |
| Installation | Wall Bracket Mounting, Tank Threaded Installation | |
| Operating Temperature | -20°C ~ +60°C | -35°C ~ +70°C |
| Relative Humidity | 0% ~ 100% (Non-condensing) | |
| Ingress Protection | IP68 (1 m Underwater, 48 Hours) | |
| Regulatory | CE, FCC, RoHS | CE, RoHS |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl2 Replaceable Battery |
| Battery Life3 | LoRaWAN® Version: Around 5 Years Cellular Version: Around 5 Years (15-min Collection Interval, 1440-min Report Interval, 25°C) |
