SKU: EM500-LGT-868M-RY
Monitor changes in light intensity with the EM500-LGT sensor from Milesight.
Details Additional Info Data Sheet Manual

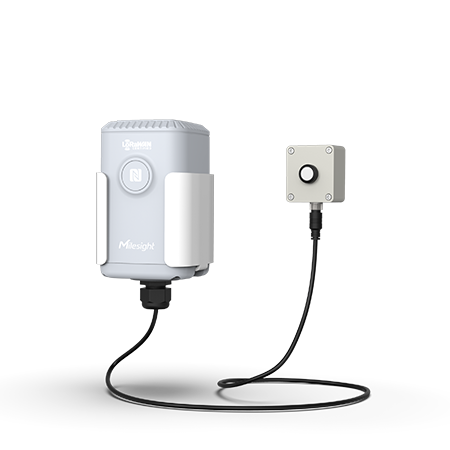

Accurately monitor the changes in light intensity with the EM500-LGT LoRaWAN® Light Sensor from Milesight.
Capable of measuring ranges from 0 to 100,000 LUX, the EM500-LGT LoRaWAN® light sensor has a 10-year battery life with a low maintenance cost.
Utilising LoRaWAN® technology, data recorded by the EM500-LGT sensor is transmitted via a connected LoRaWAN® Gateway and LoRaWAN® Network server to your chosen dashboard for visualisation and analysis.
Alliot can pre-configure your chosen devices to work straight out of the box, reducing the need for obtrusive and time-consuming installations.
Ideal for a wide range of applications, including:
We can supply a third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Light Intensity Sensor (Photodiode) | |
| Range | 0 ~ 100,000 Lux |
| Accuracy | ± 3% |
| Resolution | 1 Lux |
| Response Time | 1 s |
| Cable Length | 3 m |
| Software & Features | |
| Configuration | Mobile App via NFC or USB Type-C |
| Data Storage | Local Data Logging with Retransmission Support |
| Advanced Features | Threshold Alarm, Change Alarm, Data Retransmission, FUOTA |
| Cloud Compatibility | Milesight IoT Cloud, AWS IoT, ThingsBoard, ChirpStack, TTN |
| Transceiver Dimensions | 105.4 × 71 × 69.5 mm (4.15 × 2.80 × 2.74 in) |
| Light Sensor Dimensions | 64 × 58 × 34 mm (2.52 × 2.28 × 1.34 in) |
| Housing & Colour | ABS & PC (UV-Resistant), Grey |
| Installation | Pole, Wall or DIN Rail Mounting |
| Operating Temperature | -30°C ~ +60°C |
| Relative Humidity | 0% ~ 100% (Non-condensing) |
| Ingress Protection | IP67 (Transceiver), IP65 (Light Sensor) |
| Regulatory | CE, FCC, RoHS |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl2 Replaceable Battery |
| Battery Life1 | Up to 10 Years (10-min Interval, 25°C) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical team. Our technical team are also happy to advise customers on the best LoRaWAN® light sensors for their specific applications on an individual project basis.
Certifications
