SKU: EM500-PT100-868M-T050
The Milesight Industrial Temperature Sensor is a rugged, long-range LoRaWAN® solution designed to provide high-precision environmental monitoring and 10-year battery reliability in the harshest industrial conditions.
Details Additional Info Data Sheet Manual
Variants:

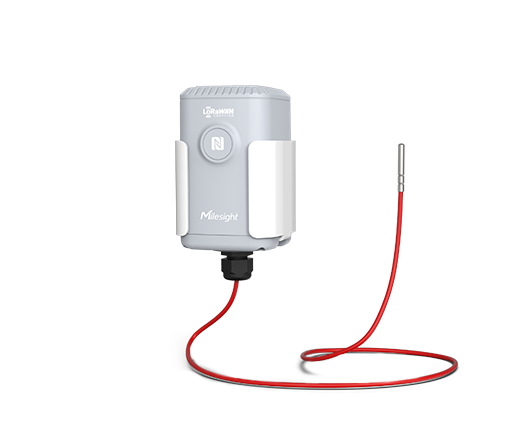

Measure temperatures between -200°C and 800°C with Milesight's EM500-PT100 industrial temperature sensor.
Featuring a platinum resistance temperature detector, the EM500-PT100 offers users a high degree of accuracy within 0.5 degrees. Ideal for use in industrial processes, cold chain management and laboratories, the resistance temperature sensor is widely used to monitor the temperatures within ovens, chimneys, and boiler temperature monitoring and medical medicine storage.
Compatible with Milesight's IoT Cloud Solution, data recorded by the EM500-PT100 can be easily accessed and managed from any location.
With a variety of terminal heads available, users of this resistance temperature sensor can select from straight tube, armoured, SMT, threaded or magnetic terminal heads. This sensor also has a customisable cable length, enabling users to adapt the sensor to suit their requirements.
Ideal for a wide range of applications, including:
| Product Code | Temperature Range | IP Rating |
|---|---|---|
| Milesight EM500 Industrial Temperature Sensor | -200°C to 50°C | IP67 |
| Milesight EM500 Industrial Temperature Sensor | -50°C to 200°C | IP67 |
| Milesight EM500 Industrial Temperature Sensor | -50°C to 200°C | IP67 |
| Milesight EM500 Industrial Temperature Sensor | -50°C to 800°C | IP67 |
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| PT100 Temperature Sensor | |
| Standard Range (T200 / T500 / T800) | |
| Measurement Range | T200: -50°C ~ +200°C T500: -50°C ~ +500°C T800: -50°C ~ +800°C (Customisable: -200°C ~ +800°C) |
| Accuracy | ± 0.5°C |
| Resolution | 0.1°C |
| Connection Type | 3-Wire |
| Probe Length | 1.5 m (Customisable) |
| Probe Type | Straight Tube (Bolt-on Ring, Magnet & Other Types Customisable) |
| Software & Features | |
| Configuration | Mobile App via NFC or USB Type-C |
| Data Storage | Local Historical Records with Retransmission Support |
| Advanced Features | Threshold Alarm, Data Retransmission, FUOTA |
| Cloud Compatibility | Milesight IoT Cloud, AWS IoT, ThingsBoard, ChirpStack, TTN |
| Dimensions | 105.4 × 71 × 69.5 mm (4.10 × 2.80 × 2.74 in) (Transceiver Only, Excluding Probe & Cable) |
| Housing & Colour | ABS & PC (UV-Resistant), Grey |
| Installation | Wall Mounting, Pole Mounting, DIN Rail Mounting |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0% ~ 100% RH (Non-condensing) |
| Ingress Protection | IP67 |
| Regulatory | CE, FCC, RoHS |
| Power Supply | 1 × 19000 mAh Li-SOCl2 Replaceable Battery |
| Battery Life1 | Over 10 Years (10-min Interval, 25°C) |
All of our products are available to customers throughout Europe. For more information on shipping costs, trade pricing and lead times, please contact our team.
Our technical sales team are also happy to advise customers on the best LoRaWAN® solution for their specific applications on an individual project basis.
£258.59 (RRP) +VAT
