SKU: EM500-PP-868M-G1/2M-4842
Designed for monitoring the pressure of tank levels and pipes. Maintain your equipment with the Pipe Pressure Sensor from Milesight.
Details Additional Info Data Sheet Manual

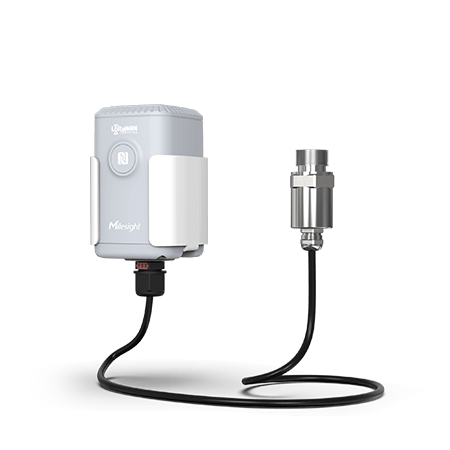

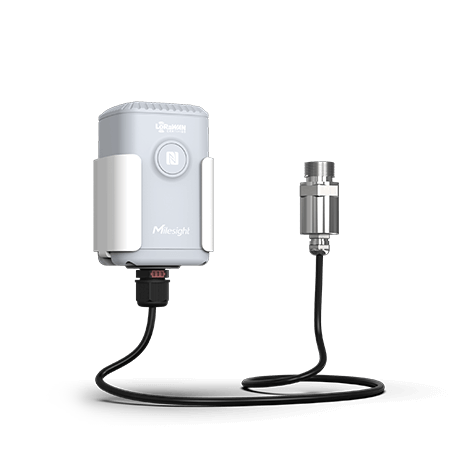

Designed for measuring pipe pressure in harsh environments, the Milesight EM500-PP LoRa pressure sensor is ideal for use in Smart Buildings, Pipelines and Tank systems. Providing high precision and corrosion resistance, this LoRa pressure sensor can be used to monitor pressure in pipes and tanks, oil and gas monitoring, water leak detection and pump monitoring.
Data is transmitted by a connected LoRaWAN® gateway, which is connected by a LoRaWAN® network. The data recorded can then be visualised on your chosen platform, including Milesight's IoT Cloud Solution. Data recorded outside of your set parameters can automatically raise alerts, enabling you to make prevent any damage or potential downtime which may occur as a result of leaks in pipes.
The Milesight EM500 Pipe Pressure Sensor is suitable for a range of applications, such as:
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Pressure Measurement | |
| Pressure Type | Gauge Pressure |
| Range | 0 ~ 1600 kPa (0 ~ 16 Bar) |
| Accuracy | ± 0.5% FS |
| Resolution | 1 kPa (0.01 Bar) |
| Overload | 150% FS |
| Long-term Stability | ± 0.3% FS / Year |
| Process Connection | G½” Male |
| Cable Length | 1.5 m |
| Software & Features | |
| Configuration | Mobile App via NFC or USB Type-C |
| Data Storage | Local Data Logging with Retransmission Support |
| Advanced Features | Threshold Alarm, Change Alarm, Data Retransmission, FUOTA |
| Cloud Compatibility | Milesight IoT Cloud, AWS IoT, ThingsBoard, ChirpStack, TTN |
| Transceiver Dimensions | 105.4 × 71 × 69.5 mm (4.15 × 2.80 × 2.74 in) |
| Pipe Sensor Dimensions | 67.5 × Ø 27 mm (2.66 × Ø 1.06 in) |
| Weight | Transceiver: 310 g (With Battery & Mounting Bracket) Pipe Pressure Sensor: 187 g (With Cable) |
| Housing & Colour | ABS & PC (UV-Resistant), Grey |
| Installation | Pole, Wall or DIN Rail Mounting |
| Operating Temperature | Transceiver: -30°C ~ +70°C Pipe Pressure Sensor: -10°C ~ +70°C |
| Relative Humidity | 0% ~ 100% (Non-condensing) |
| Ingress Protection | IP66 (Transceiver), IP67 (Pipe Pressure Sensor) |
| Regulatory | CE, FCC, RoHS |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl2 Replaceable Battery |
| Battery Life1 | Up to 10 Years (10-min Interval, 25°C) |
£665.36 (RRP) +VAT
