SKU: EM500-SMTC-868M-MEC20
Remotely monitor soil conditions with the Milesight EM500-SMTC/SMT Soil Moisture, Temperature and Electrical Conductivity Sensor
Details Additional Info Data Sheet Manual
An important tool for soil condition monitoring. Milesight's LoRaWAN® soil sensor is ideal for arable farming, grassland such as golf courses, greenhouses and areas where soil quality is of utmost importance.

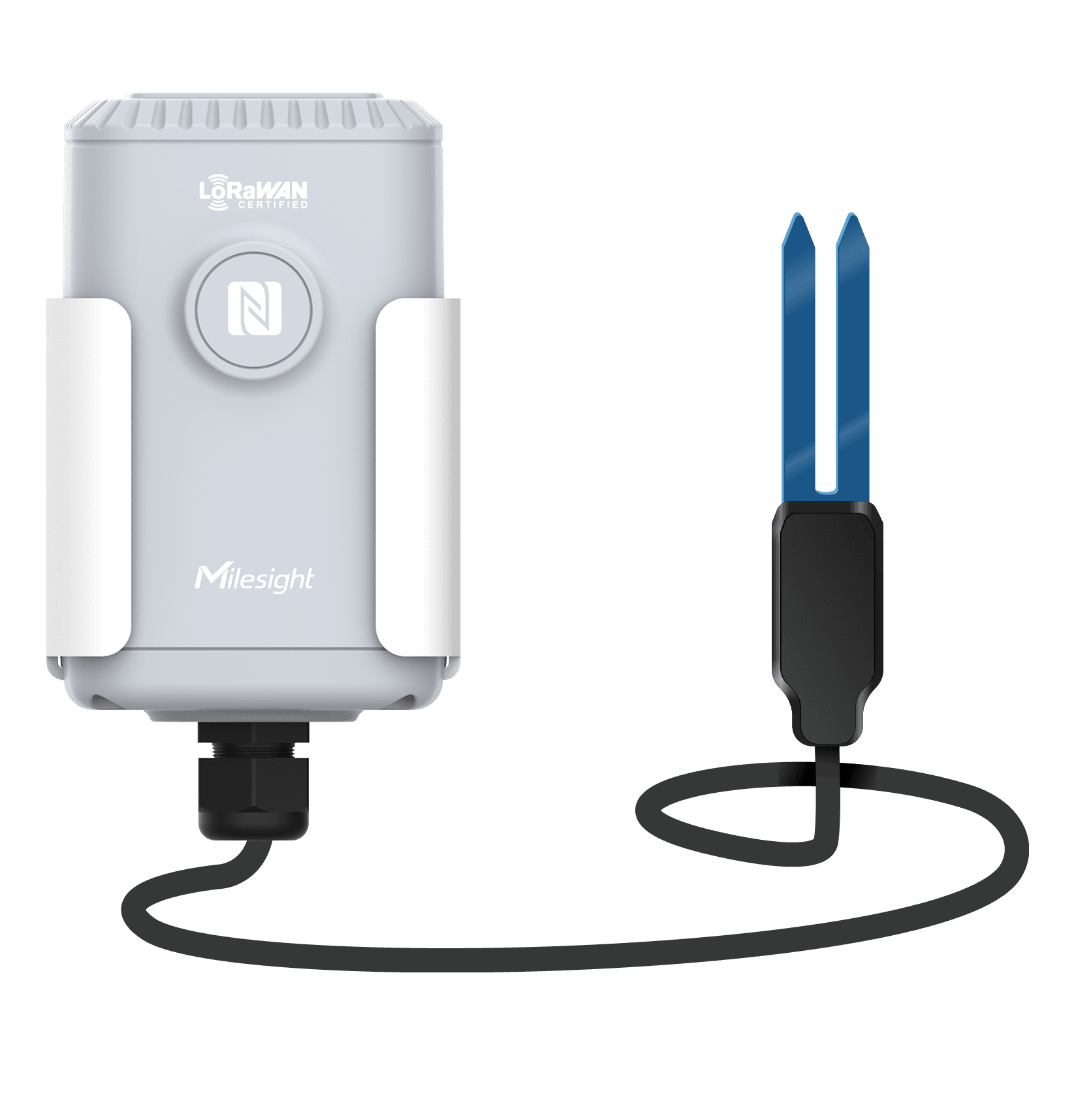

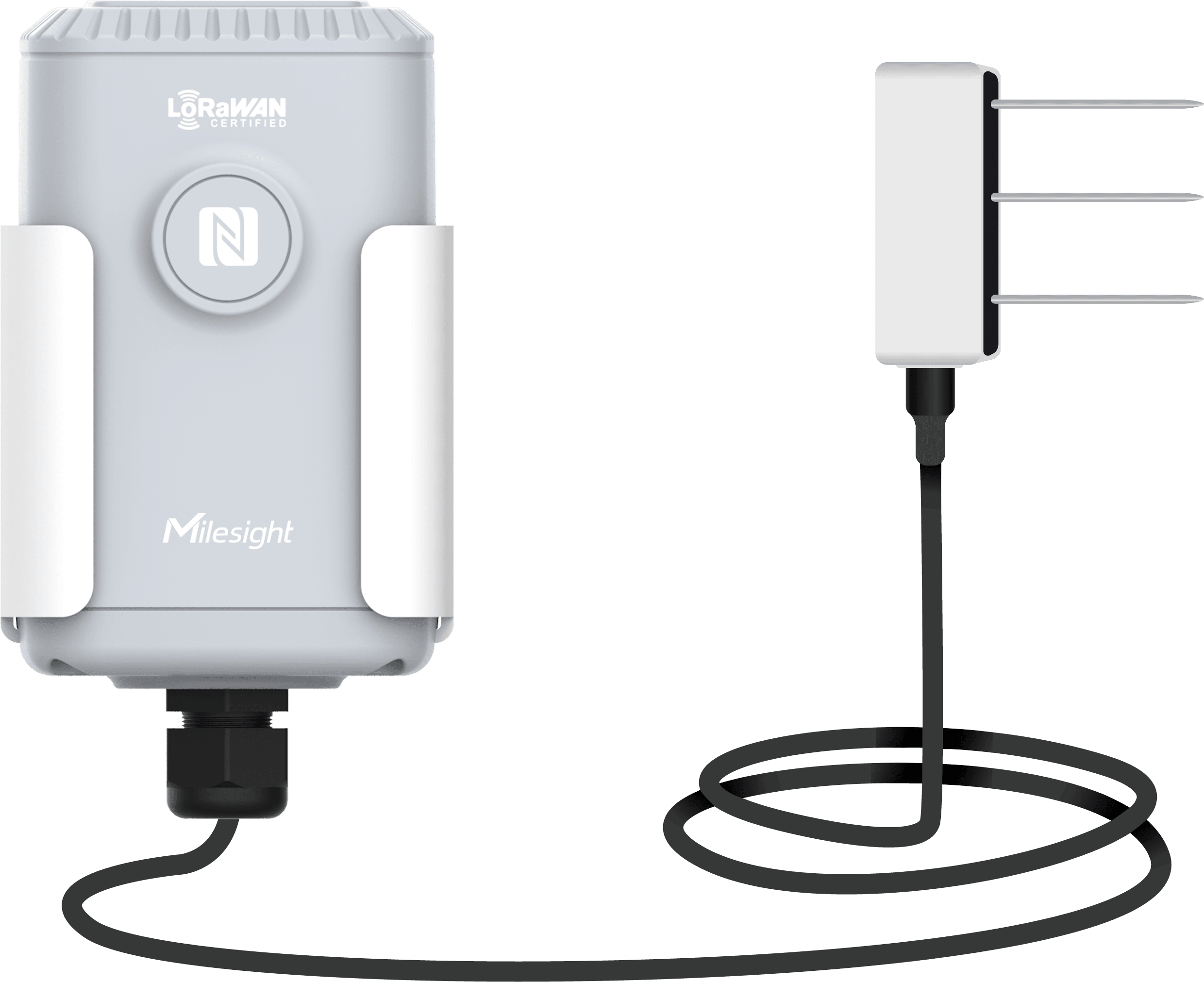

Available in two variations, users of this LoRaWAN® soil sensor can choose from the EM500-SMT soil moisture sensor or for advanced monitoring, the EM500-SMTC combines soil moisture, temperature and electrical conductivity sensors in one.
This simple-to-install device enables rapid monitoring of growing conditions and can be configured to alert you when action is required to maintain optimal conditions.
We can supply third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Soil Moisture Sensor | |
| Range | 0% ~ 100% RH |
| Accuracy | ± 2% (0 ~ 50%), ± 3% (50% ~ 100%) |
| Resolution | 0.01% |
| Temperature Sensor | |
| Range | -40°C ~ +80°C |
| Accuracy | ± 0.5°C |
| Resolution | 0.1°C |
| Electrical Conductivity Sensor | |
| Range | 0 ~ 20,000 μS/cm |
| Accuracy | ± 3% (0 ~ 10,000 μS/cm), ± 5% (10,000 ~ 20,000 μS/cm) |
| Resolution | 1 μS/cm |
| Software & Features | |
| Configuration | Mobile App via NFC or USB Type-C |
| Data Storage | Local Data Logging with Retransmission Support |
| Advanced Features | Threshold Alarm, Abnormal Value Prevention, Data Retransmission, FUOTA |
| Cloud Compatibility | Milesight IoT Cloud, AWS IoT, ThingsBoard, ChirpStack, TTN |
| Transceiver Dimensions | 105.4 × 71 × 69.5 mm (4.15 × 2.80 × 2.74 in) |
| Soil Probe Dimensions | 88 × 68 × 26 mm (3.46 × 2.68 × 1.02 in) |
| Housing & Colour | ABS & PC (UV-Resistant), Grey |
| Installation | Direct Soil Insertion (Horizontal or Vertical) |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0% ~ 100% (Non-condensing) |
| Ingress Protection | IP67 (Transceiver), IP68 (Soil Probe) |
| Regulatory | CE, FCC, RoHS |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl2 Replaceable Battery |
| Battery Life1 | Up to 10 Years (10-min Interval, 25°C) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical team.
Our technical team are also happy to advise customers on the best LoRaWAN® soil sensors for their specific applications on an individual project basis.
