SKU: TS101-868M-1

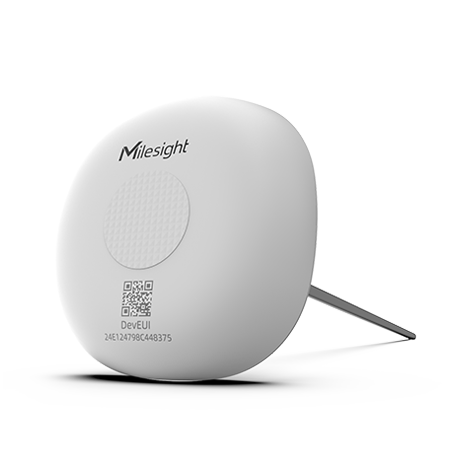

The Milesight TS101 is a durable, food-grade LoRaWAN insertion temperature sensor equipped with a long probe designed for deep monitoring in grain stacks, tobacco warehouses, and harsh storage environments.
Details Additional Info
Variants:
The Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter, designed for accurate and reliable temperature monitoring across a wide range of applications. Featuring a food-grade stainless steel probe and durable enclosure, the TS101 is ideal for environments where hygiene, reliability, and long-term performance are essential.
Suitable for applications such as:
Built for demanding environments, the TS101 features an IP67 waterproof rating, phosphine corrosion resistance, and an IK10-rated transceiver for excellent impact protection. It also supports local data storage for up to 1,200 records, along with data retrieval and retransmission to help prevent data loss.
With up to 10 years of battery life and simple wireless deployment, the TS101 provides a dependable, low-maintenance temperature monitoring solution.
This smart device transmits measured temperature data to a connected LoRaWAN® gateway. The data is then forwarded to your chosen third-party platform for monitoring, alarming, and trend analysis by a LoRaWAN® network server.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Temperature Sensor | |
| Measuring Range | -30°C ~ +70°C |
| Accuracy | ± 0.5°C (Typical) |
| Resolution | 0.1°C |
| Software & Features | |
| Configuration | Mobile App via NFC or Internal Power Button |
| Data Storage | Up to 1,200 Records with Retransmission Support |
| Advanced Features | Abrupt Temperature Change Alarm, Data Retrievability, Data Retransmission, FUOTA |
| Compliance | Food-Grade, Phosphine Corrosion Resistant |
| Transceiver Dimensions | Ø 92 × 92 × 26 mm |
| Probe Dimensions | Ø 7 × 400 mm (Stainless Steel, Food-Grade) |
| Housing & Material | ABS & PC (Food-Grade, Phosphine Corrosion Resistant) |
| Probe Material | 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant) |
| Installation | Insert Installation |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0% ~ 95% (Non-condensing) |
| Ingress Protection | IP67 |
| Impact Protection | IK10 (Transceiver) |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery |
| Battery Life1 | Up to 10 Years (SF7, EU868 & US915) Around 4.8 Years (SF10, EU868) Around 5.5 Years (SF10, US915) |
