SKU: TS301-868M
The Milesight TS30X series offer enhanced temperature sensors designed for mission-critical monitoring in cold chain and legionella compliance.
Details Additional Info Data Sheet Manual
Variants:
Ensure precise temperature monitoring across critical environments with the Milesight TS302 Dual Channel Temperature Sensor. This advanced LoRaWAN® resistance temperature sensor features an integrated LCD display and dual probe connectivity, making it the ideal solution for industries where accurate, traceable temperature data is non-negotiable.

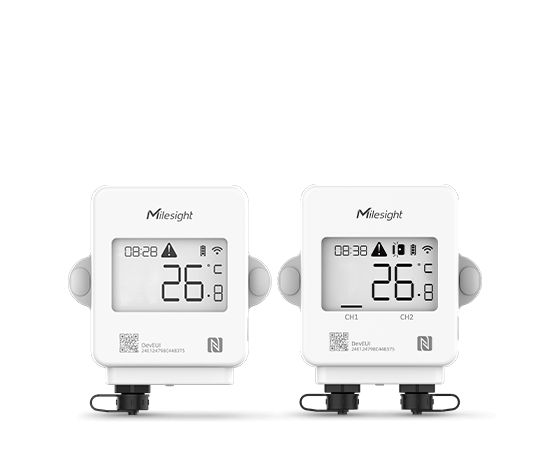

The TS301 serves as a precision single-point instrument for temperature monitoring, while the TS302 is a multi-purpose powerhouse, capturing both temperature and door status simultaneously.
Suitable applications include:

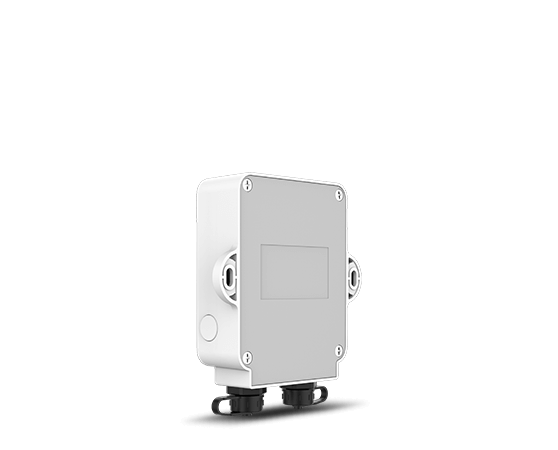

The TS302 stands out with its low-power LCD display, providing clear at-a-glance temperature readings without draining the battery. Powered by two replaceable 4000mAh Li-SOCl₂ batteries, the device offers an impressive battery life of 5 to 15 years depending on configuration. Its rugged IP65-rated enclosure, with a dust-protected USB port, makes it well suited to harsh environments such as freezer rooms, production floors, and outdoor cold chain applications. The compact ear-like bracket design also makes wall mounting quick and straightforward.
Recorded data is transmitted wirelessly over a LoRaWAN® network, offering long-range connectivity of up to 2km in urban areas and 15km in rural environments, while keeping power consumption to a minimum. Based on the standard LoRaWAN® protocol, the TS302 connects to a LoRaWAN® gateway and can be visualised through your preferred dashboard or via Milesight's IoT Cloud. The device can also be configured quickly in the field via NFC using the Milesight mobile app.
| Product Code | Channels | Probe / Sensor Connection | Protocol |
|---|---|---|---|
| TS301 | Single Channel | 1 × PT100 Temperature Probe or 1 × Door Magnetic Sensor | LoRaWAN® |

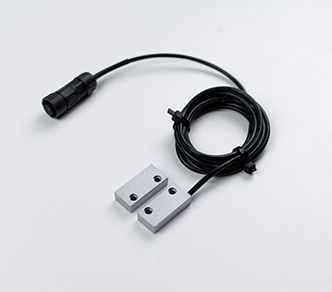

| TS302 | Dual Channel | 1 × PT100 Probe + 1 × Door Magnetic Sensor simultaneously, or 2 × PT100 Temperature Probes | LoRaWAN® |
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Sensor Interface | |
| Connector Type | 5-Pin M12 A-Coded Male Connector |
| Connector Channels | 2 × Connectors for two Temperature/Humidity Sensors, or Temperature/Humidity Probe + Magnet Switch Sensor1 |
| Compatible Probes | PT100 (Regular, Food Grade, Low Temperature, Pipe), DS18B20, TH Probe (Temperature & Humidity) |
| Software & Features | |
| Configuration | Mobile App via NFC or Downlink |
| Data Logging | Up to 10,000 Measurements (Exportable as CSV or PDF) |
| Advanced Features | Threshold Alarm, Change Alarm, Data Retrievability, Data Retransmission, FUOTA |
| Compliance | HACCP, 21 CFR Part 11B, EN12830 |
| Dimensions | 109.35 × 75 × 29 mm (4.31 × 2.95 × 1.14 in) |
| Weight | 185g |
| Display | LCD Segment Code Screen |
| Installation | Wall Screw Mounting, Magnetic Mounting (Optional) |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0% ~ 95% (Non-condensing) |
| Ingress Protection | IP65 |
| Regulatory | CE, FCC, EN12830, RoHS |
| Power Supply | 2 × 4000 mAh ER18505 Li-SOCl2 Replaceable Batteries or 5V / 1A via USB Type-C |
| Battery Life2 | With Temperature/Humidity Probe + Magnet Sensor (10 Triggers per Day): Over 3.9 Years (SF10, EU868), Over 3.2 Years (SF10, US915) With Two Temperature/Humidity Probes: Over 2.7 Years (SF10, EU868), Over 2.4 Years (SF10, US915) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® People Counting sensors to suit specific project requirements.
