SKU: UC100-868M

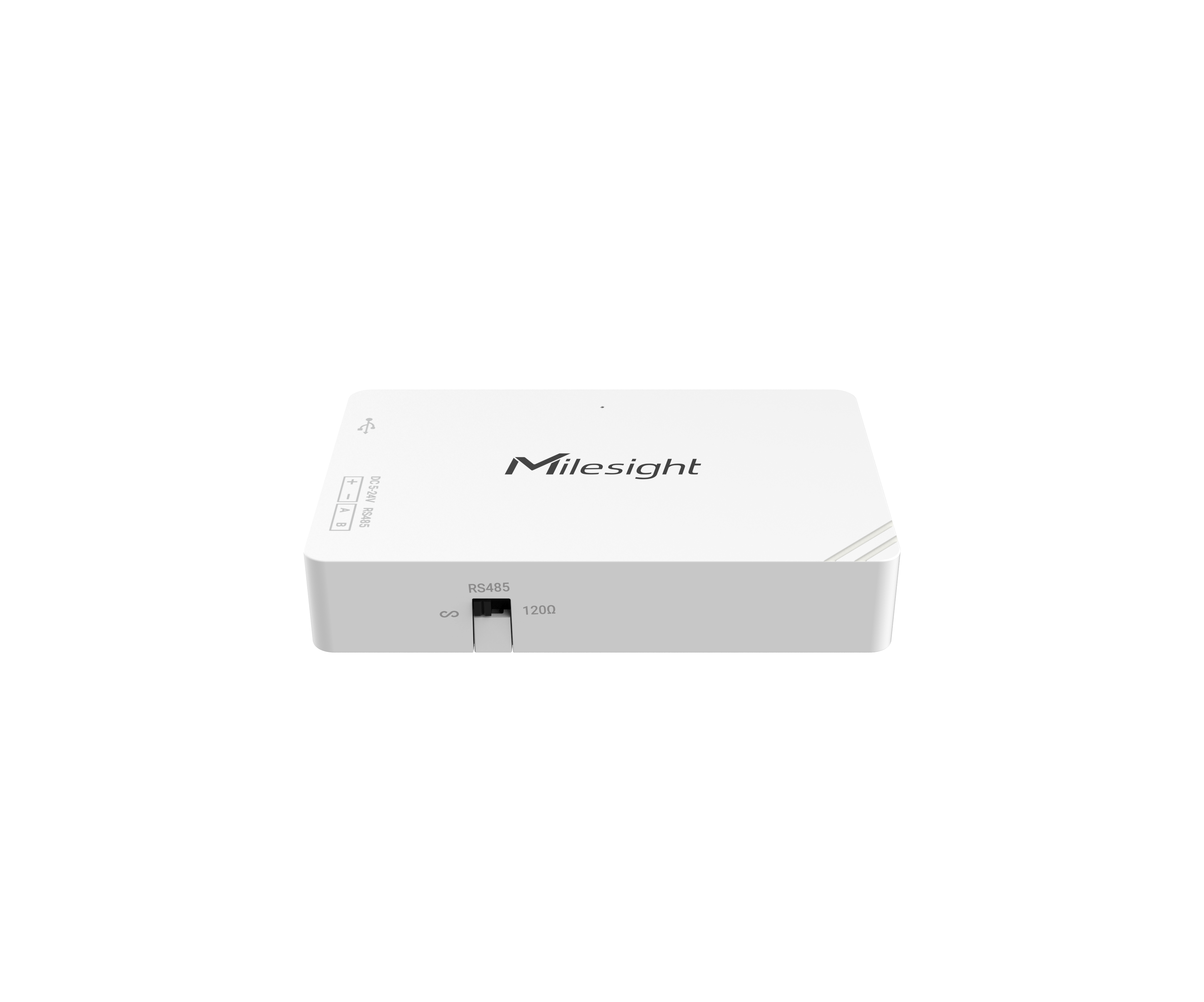

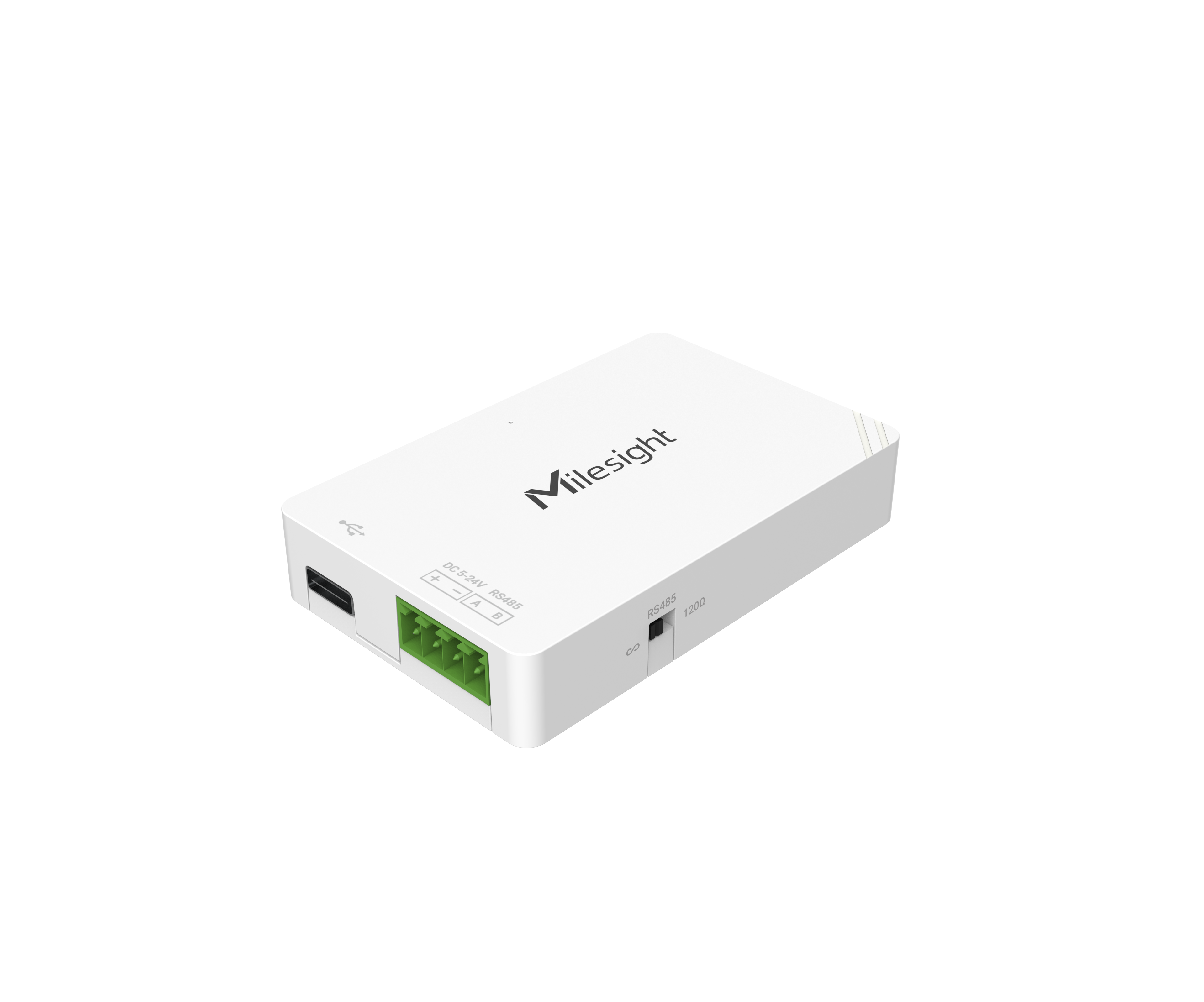

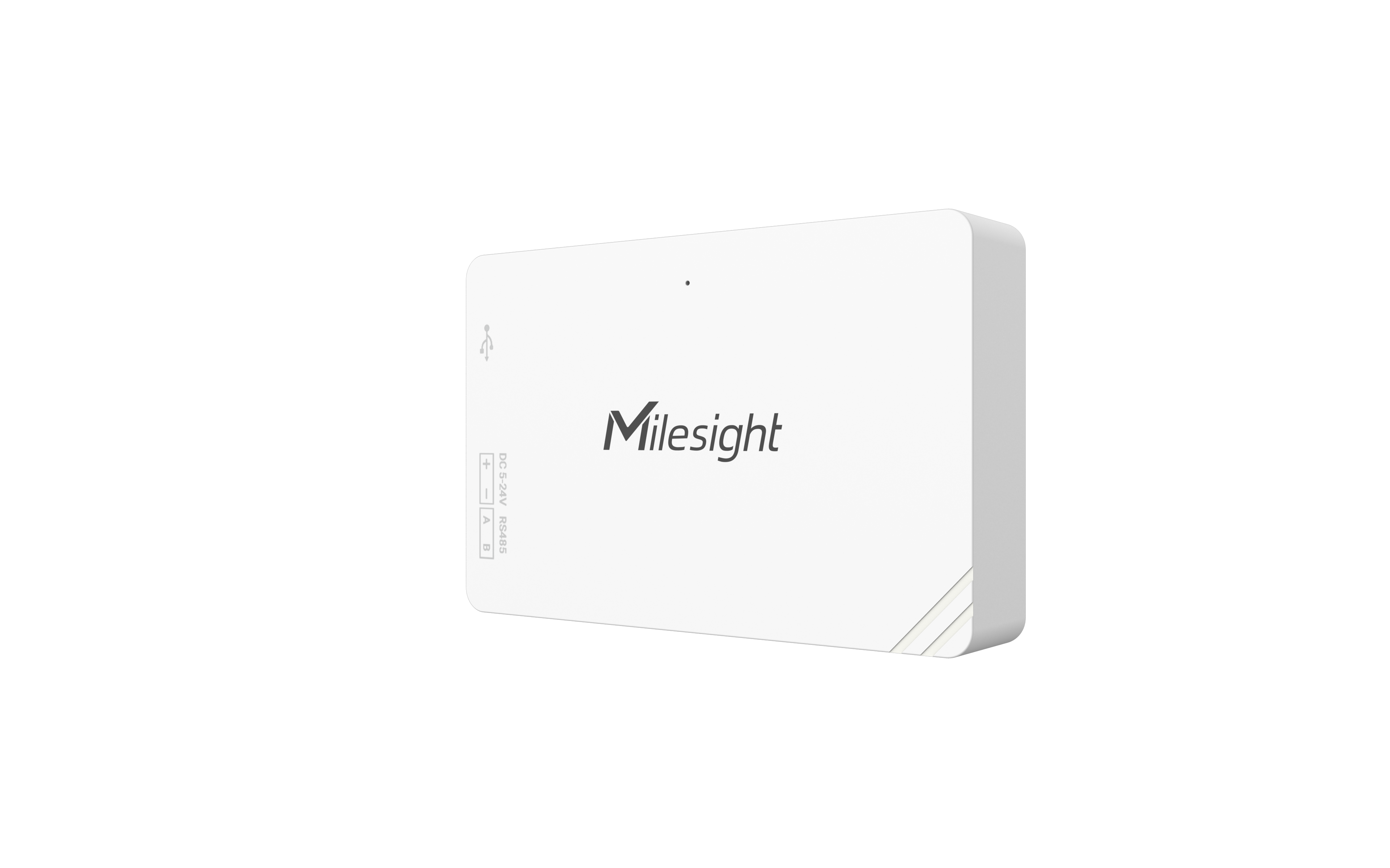

The Milesight UC100 is an IoT controller used for the remote control and data acquisition from Modbus RS485 devices via LoRaWAN® network.
Details Additional Info Data Sheet Manual
The Milesight UC100 IoT Controller is more than just a controller; it's the central nervous system for your smart environment. Allowing seamless integration of different IoT systems. By bridging various protocols and devices the UC100 brings everything together, enabling a unified ecosystem.
The Milesight UC100 can be used in tandem with other systems to maximise your energy usage, security and your overall efficiency. With the ability to integrate with other systems, this device can be used in a wide range of areas such as:
One of the standout features of The UC100 IoT Controller is that it is designed for scalability enabling the addition of new devices or systems as needs evolve without compromising performance or efficiency. Serving as a convertor from Modbus RS485 to LoRaWAN® users can connect up to 16 Modbus RTU devices to seamlessly integrate them with into a LoRaWAN® solution. Recorded data is transmitted to a connected LoRaWAN® gateway. The data is then sent to the smartphone app and/or your chosen third-party platform for visualisation by a LoRaWAN® network server.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A, Class C |
| Data Interface | |
| Interface Type | 1 × RS485 |
| Baud Rate | 1200~115200 bps |
| Protocol | Modbus RTU (supported as Master or Slave) |
| Dimensions | 70 × 45 × 13 mm (2.76 × 1.77 × 0.51 in) |

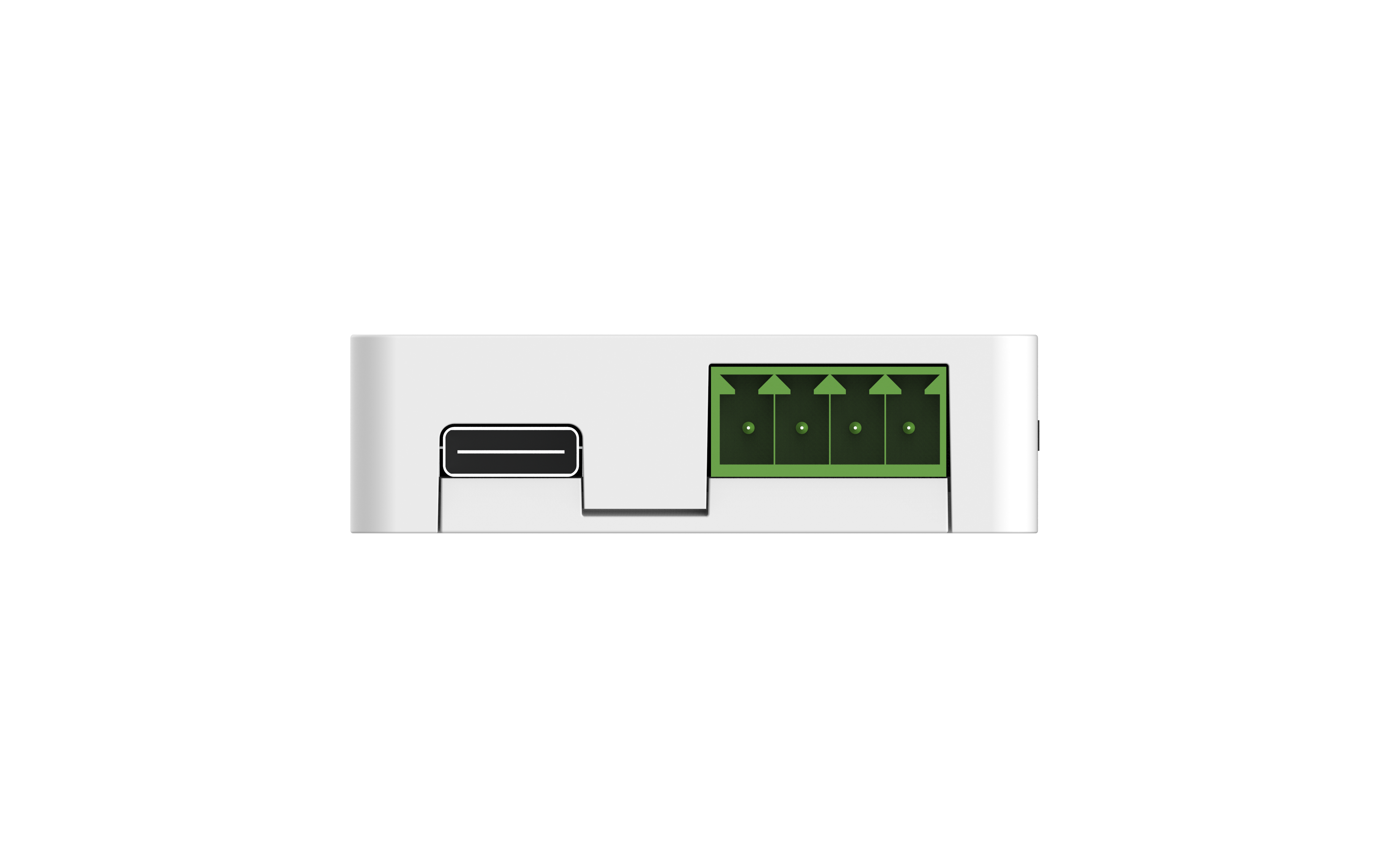

| Connector | 3.5 mm Terminal Block |
| Configuration Interface | 1 × Type-C USB |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP30 |
| Material & Colour | White, PC + ABS (Flame Retardant) |
| Installation | Desktop, Wall Mounting |
| Power Supply | 1. 5–24 VDC via Terminal Block 2. 5V via USB Type-C Port |
| Power Consumption | ≤ 0.5 W |
All of our products are available to customers throughout Europe. For more information on shipping costs, trade pricing and lead times, please contact our team.
Our technical sales team are also happy to advise customers on the best LoRaWAN® Modbus Convertors for their specific applications on an individual project basis.
