SKU: UR41-L08EU

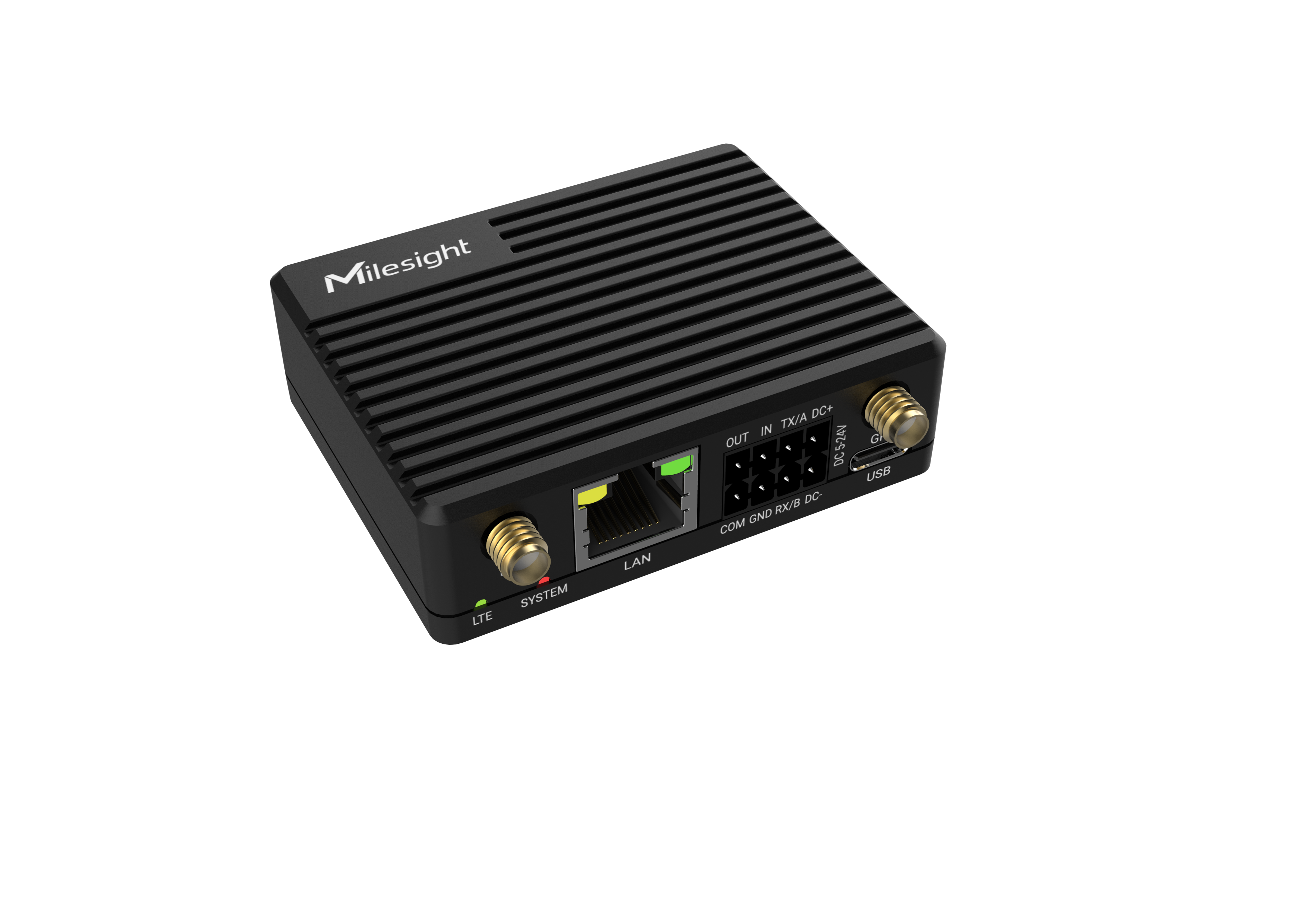

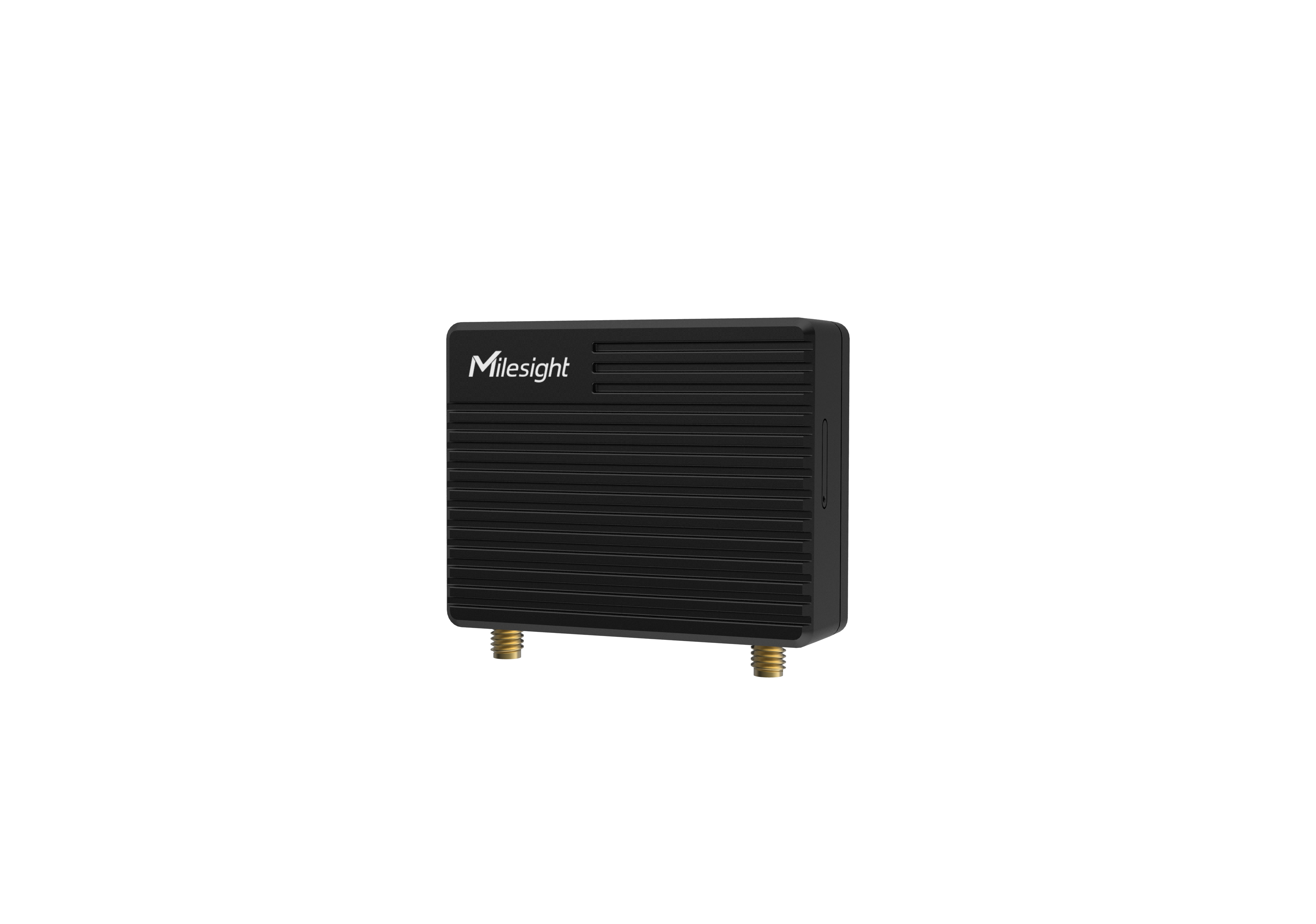

The Milesight UR41 is an ultra-compact, credit-card-sized industrial 4G router. Designed for IoT and M2M deployments, available through Alliot.
Details Additional Info Data Sheet Manual
The Milesight UR41 is a compact, industrial-grade 4G router designed to deliver stable mobile connectivity and secure data transmission in demanding environments. Built to bridge the gap between field equipment and the cloud, it features a robust selection of industrial interfaces, including DI/DO, RS232, and RS485, enabling seamless local data access for varied machinery and sensors.
The Milesight UR41 is a highly efficient, pocket-sized cellular router that simplifies IoT deployment by safely connecting your industrial hardware to high-speed 4G networks.
Suitable for a wide range of applications, including:
| Network | 4G LTE (Cat 4), WCDMA and GSM |
| SIM Slot | 1 × Nano SIM (4FF) |
| Cellular Antenna Connector | 1 × 50 Ω SMA Connector (SMA Female Centre Pin) |
| Ethernet Port | 1 × RJ45 10/100 Mbps LAN Port |
| Duplex Mode | Auto-sensing Full or Half Duplex |
| Ethernet Isolation | 1.5 kV RMS |
| GNSS Technology | GPS, GLONASS, BeiDou, Galileo and QZSS |
| GNSS Antenna Connector | 1 × 50 Ω SMA Connector (SMA Female Centre Pin) |
| Positioning Accuracy | 2.5 m CEP (Open Air) |
| Serial Port | 1 × RS232 or 1 × RS485 (Software Selectable) |
| Serial Connector | 3.5 mm Terminal Block |
| Termination Resistor | 120 Ω Resistor Switch (RS485) |
| Baud Rate | 300 bps to 230,400 bps |
| Digital I/O | 1 × Digital Input and 1 × Digital Output with Galvanic Isolation |
| Digital Input | Dry Contact |
| Digital Output | Wet Contact, up to 0.3 A @ 30 VDC |
| Ingress Protection | IP30 |
| Housing | Metal Enclosure, Black Finish |
| Dimensions | 70 × 55 × 22 mm (Antenna Connectors Excluded) |
| Weight | 103 g |
| Installation | Desktop, Wall Mounting or DIN Rail Mounting |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0% to 95% RH (Non-Condensing) |
| Protocol Support | IPv4, IPv6, TCP, UDP, DHCP, DNS, HTTP, HTTPS and SNMP |
| VPN Support | OpenVPN, IPsec, GRE and PPTP/L2TP |
| Routing Functions | Static Routing, NAT and Port Forwarding |
| Firewall | Integrated Firewall with Access Control Features |
| Management | Web-Based User Interface and Remote Device Management |
| Diagnostics | Real-Time Monitoring, Logging and Device Diagnostics |
| Firmware Updates | Local and Remote Firmware Upgrade Support |
| Power Input | 5–24 VDC via 2-Pin 3.5 mm Terminal Block or 5 VDC via USB Type-C Port |
| Standby Power Consumption | 6.3 mA @ 12 V |
| Idle Power Consumption | 78 mA @ 12 V |
| Data Transmission Consumption | 226 mA @ 12 V |
Certifications
