SKU: VS341-868M

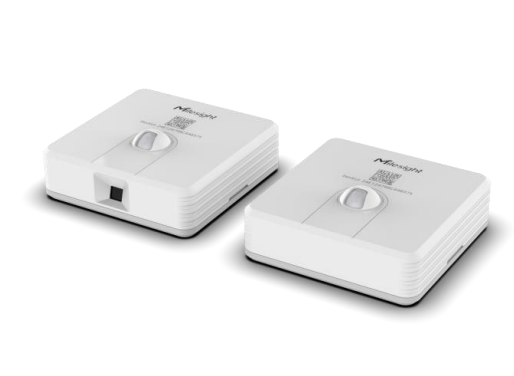

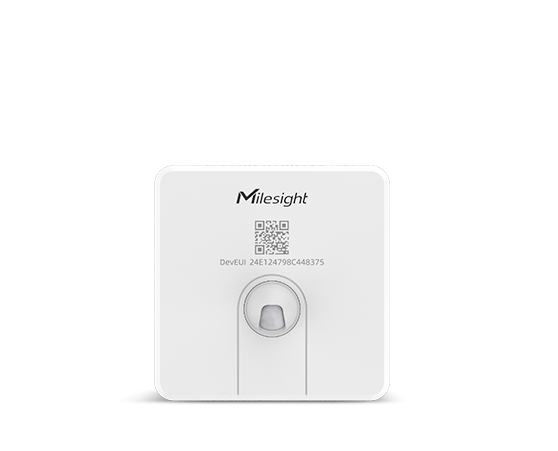

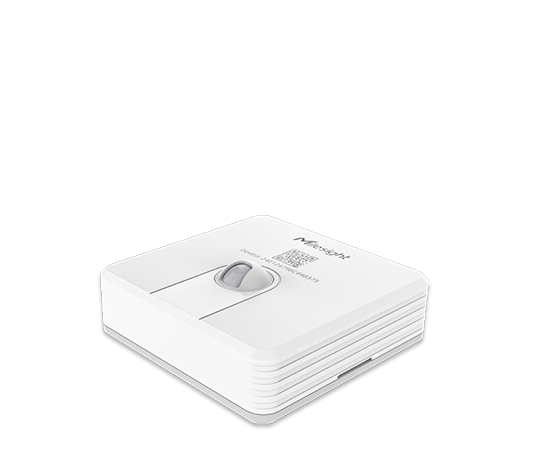

The Milesight VS34x series offers desk & seat occupancy sensors, designed to bring high accuracy and quick occupancy status detecting.
Details Additional Info Data Sheet Manual
Variants:
The Milesight VS34X sensors' impressive desk & seat occupancy detection capability frees up human resources, enabling efficient management.
Based on dual technology, the sensor is capable of reaching up to 98% high accuracy. It satisfies general requirements and further makes accurate detection possible, beating the most similar products.
Acting as a bridge between your LoRaWAN® sensors and Network Server, LoRaWAN® gateways receive packets of data from your deployed sensors and transmit them to your chosen platform via the connected Network Server, ready to visualise and interpret.
This sensor is suitable for applications such as:
| Product Code | Detection Method | Use Case | Region | Thermal Detection |
|---|---|---|---|---|
| VS340 Desk & Seat Occupancy Sensor EU868 | Pressure-Based | Desk & Seat Occupancy | EU868 | X |
| VS341 Desk & Seat Occupancy Sensor with Thermopile IR EU868 | Pressure + Thermopile IR | Desk & Seat Occupancy | EU868 | ✓ |
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | EU868 |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
| Dimensions | 73 x 73 x 26 mm (2.87 x 2.87 x 1.02 in) (excluding PIR cover) |
| Weight | 90g |
| Colour & Material | White & Grey, PC & ABS (Flame Retardant) |
| Installation | 3M Tape Mounting, Wall Screw Mounting |
| Operating Temperature | -20°C ~ +60°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Power Supply | 1 x 4000 mAh ER18505 Li-SOCl2 Battery |
| Battery Life2 | Around 5 Years (100 Triggers per Day, 25°C) |
Certifications
