SKU: VS370-868M

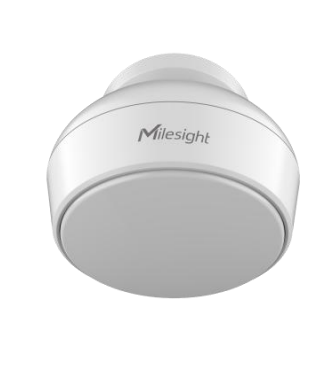

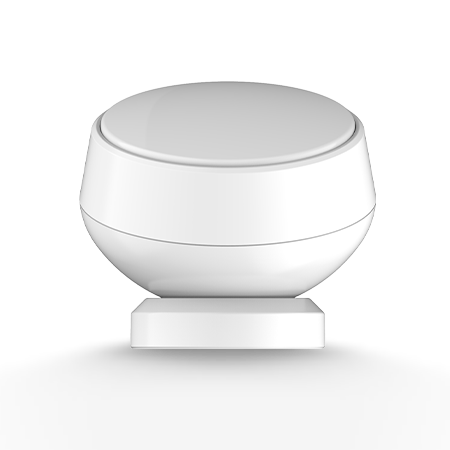

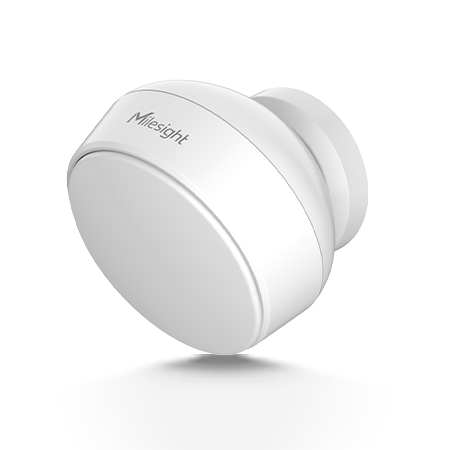

The Milesight VS370 Radar Human Presence Sensor is an advanced LoRaWAN®-based device designed to detect human presence with exceptional accuracy.
Details Additional Info Data Sheet Manual
The Milesight VS370 Radar Human Presence Sensor is a high-accuracy occupancy sensor tailored for meeting rooms of various sizes. Featuring Radar and PIR technology, it ensures accurate detection without privacy concerns.
The Milesight VS370 enhances the completeness of our solutions for smart offices and smart buildings alike.
Recorded data is transmitted over a LoRaWAN® network, helping to secure any privacy concerns. Based on the standard LoRaWAN® protocol, the VS370 connects to a LoRaWAN® gateway and can then be visualised by your preferred dashboard or through Milesight's IoT Cloud.
The Milesight VS370 is suitable for small, medium, and large meeting rooms. With the flexibility of its advanced technological structure, it efficiently avoids interference from decor and layouts.
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Dimensions | Ø 70 × 48.5 mm (Ø 2.76 × 1.91 in) |
| Weight | Body: 89.6g, Magnetic Bracket: 38.2g |
| Colour & Material | White, ABS (UL94 V1) |
| Installation | Wall Mounting via Magnetic Bracket |
| Operating Temperature | 0°C ~ 30°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Batteries |
| Battery Life | Around 5 Years (50 Triggers per Day, 25°C) |
Certifications
