SKU: WS101-868M PN: SOS
The Milesight WS101 is a LoRaWAN®-based smart button for wireless controls, triggers and alarms.
Details Additional Info Data Sheet Manual
Variants:
The Milesight WS101 is a LoRaWAN® button for wireless controls, triggers and alarms.
This compact, battery-powered device is easy to install, and given its discreet form factor, it is ideal for users to carry around with them. Supporting multiple press actions, the WS101 smart button can be configured to control devices or trigger actions. For SOS alarms, the Milesight WS101 can also be supplied with a red button for easy identification.
Ideal for applications, including:
The WS101 is compatible with Milesight's IoT Cloud solution, enabling users to easily access data. With a built-in LED indicator and buzzer for press actions, network status and low battery indication, the WS101 is a simple-to-use device.
Please note that LoRaWAN® is not suitable for emergency responses, which may require immediate attention.
| Variant | Colour | Primary Use | SOS / Emergency Alarm |
|---|---|---|---|

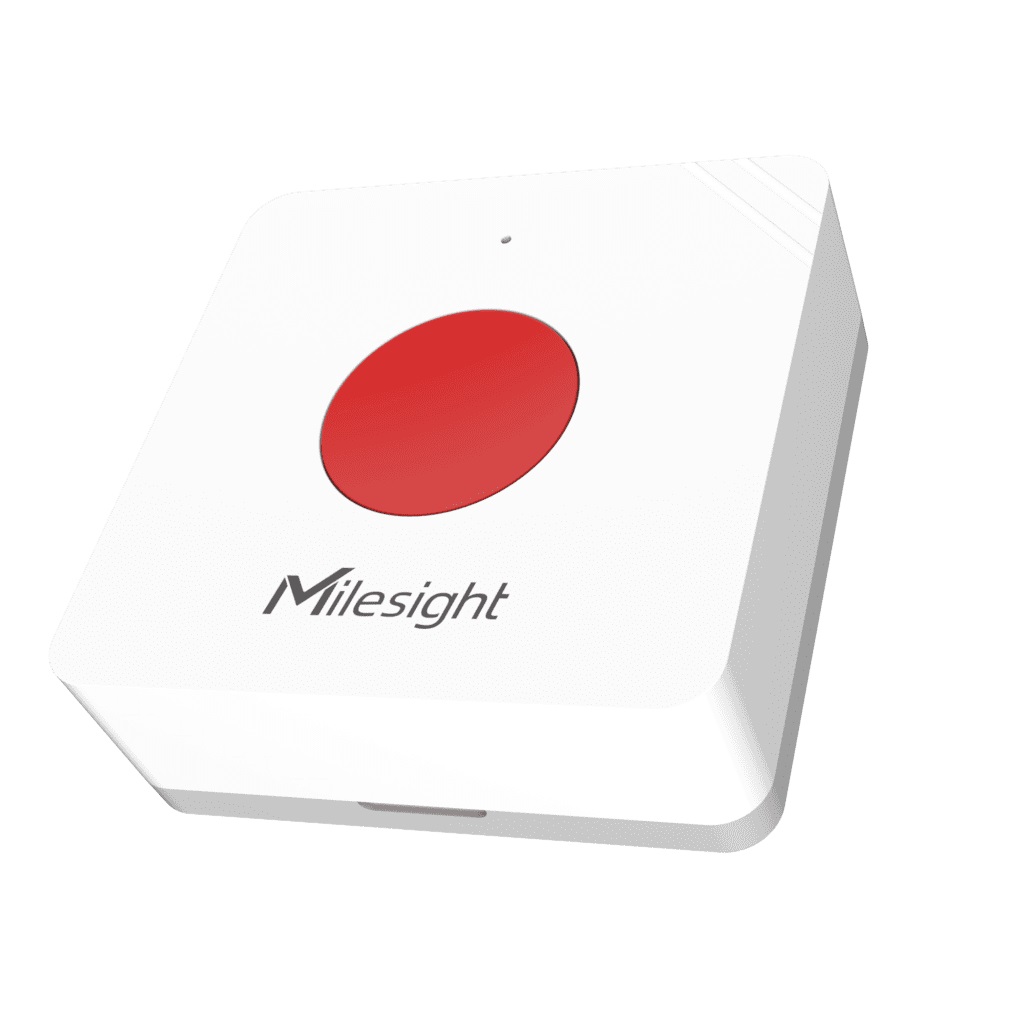

| WS101 Smart Button SOS | Red | Emergency / SOS Alarm | ✓ |

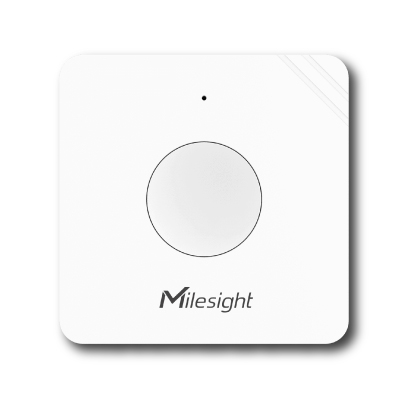

| WS101 Smart Button Scene | White | Scene Control / Device Trigger | X |
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Button & Interface | |
| External Button | 1 × Press Button (Short Press, Long Press, Double Press) |
| Internal Button | 1 × Reset Button |
| LED Indicator | 1 × Status / Alarm Indicator (Red / Green) |
| Buzzer | ✓ |
| Software & Features | |
| Configuration | Mobile App via NFC or Downlink |
| Advanced Features | Milesight D2D Controller, Customisable Press Actions, FUOTA |
| Dimensions | 50 × 50 × 18 mm (1.97 × 1.97 × 0.71 in) Button: Ø 20 mm (Ø 0.79 in) |
| Colour & Material | White or Red, Anti-Flame Polycarbonate |
| Installation | 3M Tape Mounting, Wall Screw Mounting, Portable |
| Operating Temperature | -20°C ~ +60°C |
| Relative Humidity | ≤ 90% (Non-condensing) |
| Ingress Protection | IP30 |
| Regulatory | CE, FCC, RoHS |
| Power Supply | 1 × 1650 mAh ER14335 Li-SOCl2 Replaceable Battery |
| Battery Life2 | Up to 9.5 Years (SF7, EU868) Up to 7.7 Years (SF10, EU868) Up to 9.3 Years (SF7, US915) Up to 7.1 Years (SF10, US915) (1080-min Interval, 10 Presses per Day, 25°C) |
