SKU: WS202-868M

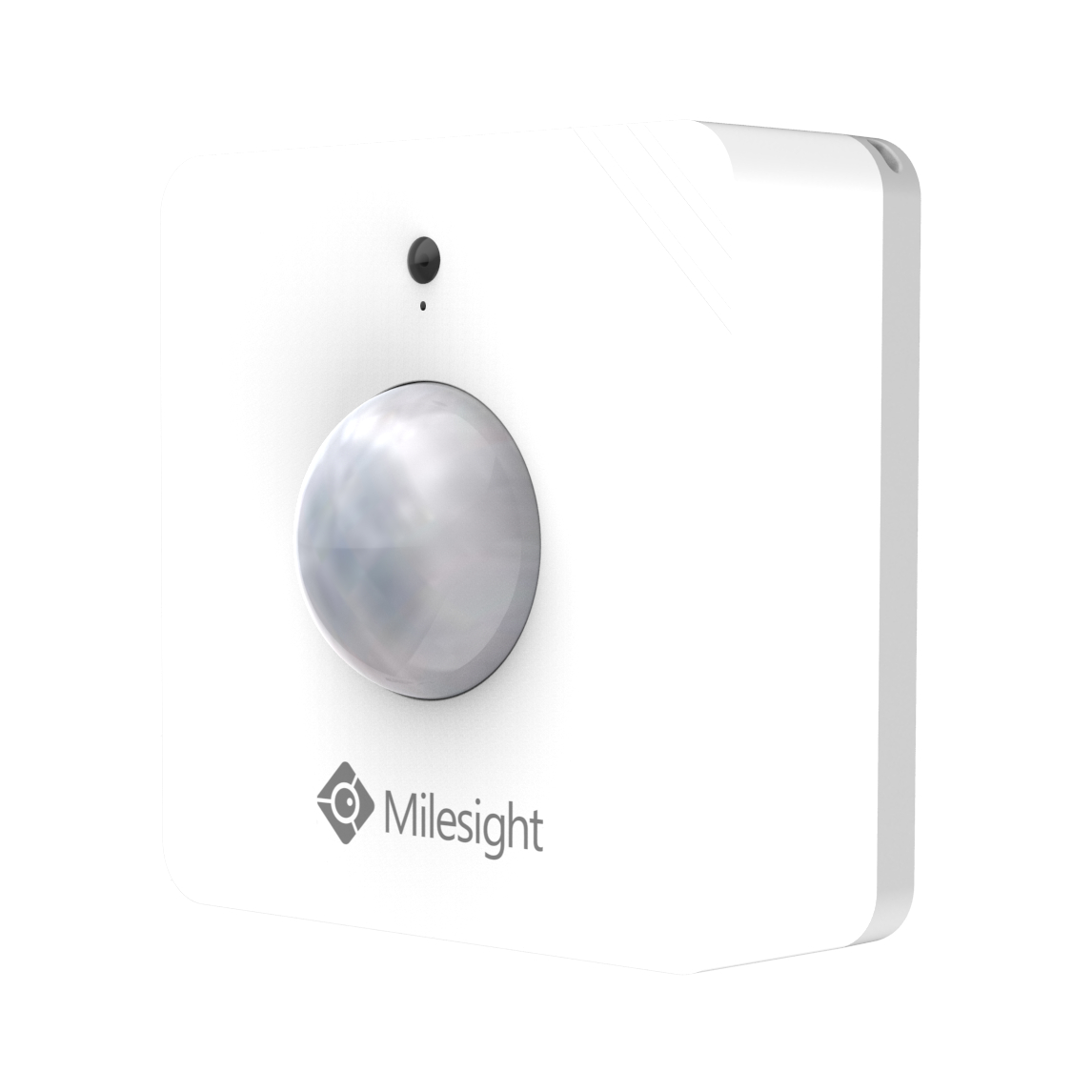

The Milesight WS202 combines a PIR motion detection with brightness measurement in one compact sensor.
Details Additional Info Data Sheet Manual
The Milesight WS202 light control sensor is ideal for smart buildings and offices. Combining motion and light sensors in one, the WS202 light control sensor can be used alongside an automatic lighting control system.
With an ultra-wide detection range of up to 8m distance, 120° horizontal and 100° vertical, one sensor can cover a wide area.
Featuring a compact form factor, this wireless light control sensor is simple to install. It can be used to automate alarms for activity in unoccupied areas or to trigger other sensors or appliances, such as automatic lighting systems, to power up.
Data collected is transmitted to a connected LoRaWAN® gateway and can then be visualised and remotely managed by the Milesight IoT Cloud Solution.
The WS202 is suitable for a wide range of applications, such as:
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| PIR Motion Sensor | |
| Detection Area | 120° Horizontal, 100° Vertical |
| Detection Distance | Up to 8 m |
| Status Output | Occupied / Vacant |
| Light Sensor | |
| Detection Range | 1 ~ 60,000 Lux |
| Status Output | Bright / Dark (Custom Threshold Configurable) |
| Software & Features | |
| Configuration | Mobile App via NFC or Downlink |
| Advanced Features | Milesight D2D Controller, Threshold Alarm, Automatic Lighting Control |
| Dimensions | 50 × 50 × 23.8 mm (1.97 × 1.97 × 0.94 in) |
| Weight | 37g (With Battery) |
| Colour & Material | White, PC & ABS (Flame Retardant) |
| Installation | 3M Tape Mounting, Wall Screw Mounting, Ceiling Mounting |
| Operating Temperature | -30°C ~ +60°C |
| Relative Humidity | ≤ 90% (Non-condensing) |
| Ingress Protection | IP30 |
| Regulatory | CE, FCC, RoHS |
| Power Supply | 1 × 2400 mAh ER14250 Li-SOCl2 Replaceable Battery |
| Battery Life1 | Around 4 Years (30-min Interval, 30 Triggers per Day, 25°C) |
Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
Certifications
