SKU: WT101-868M

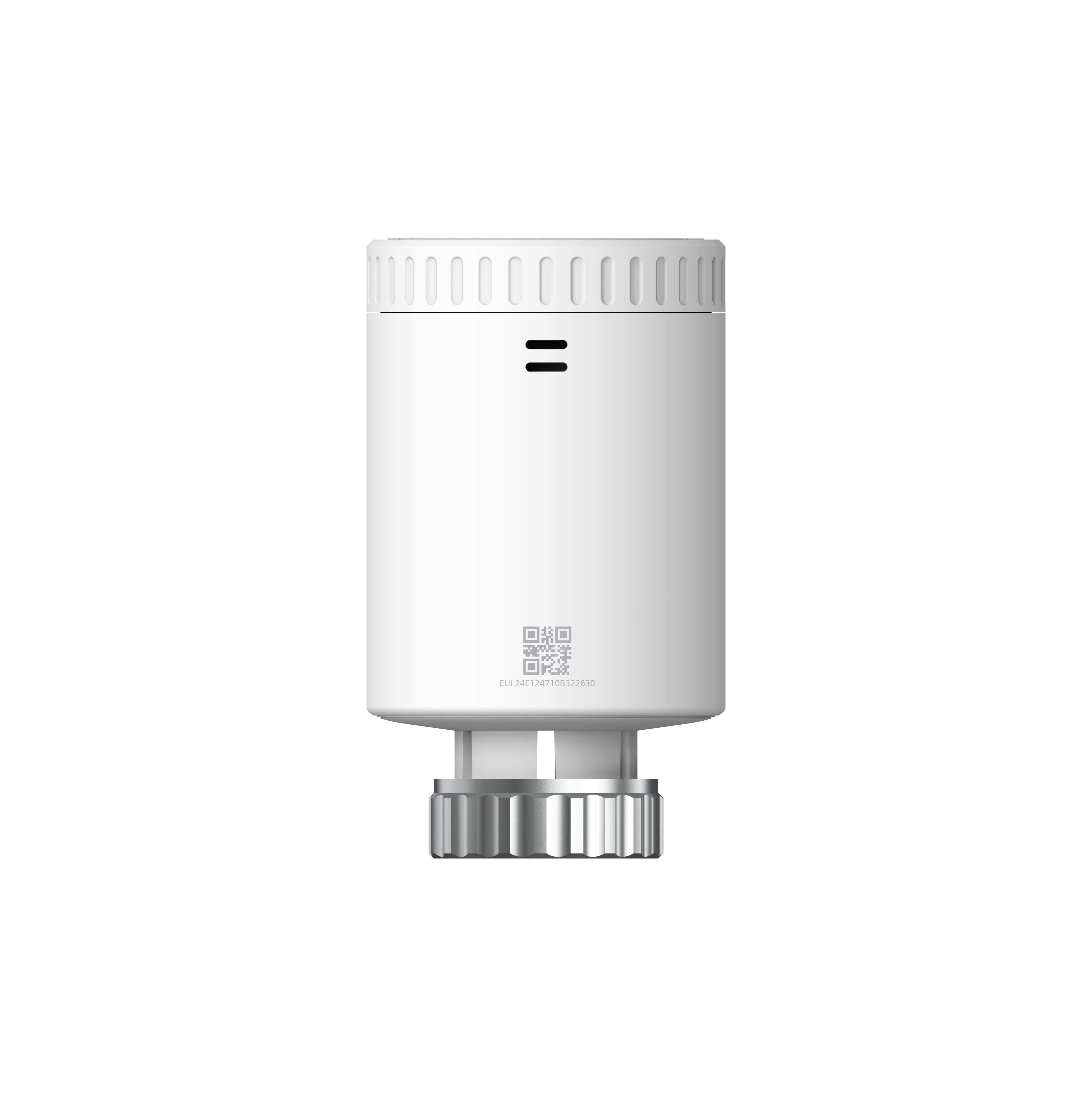

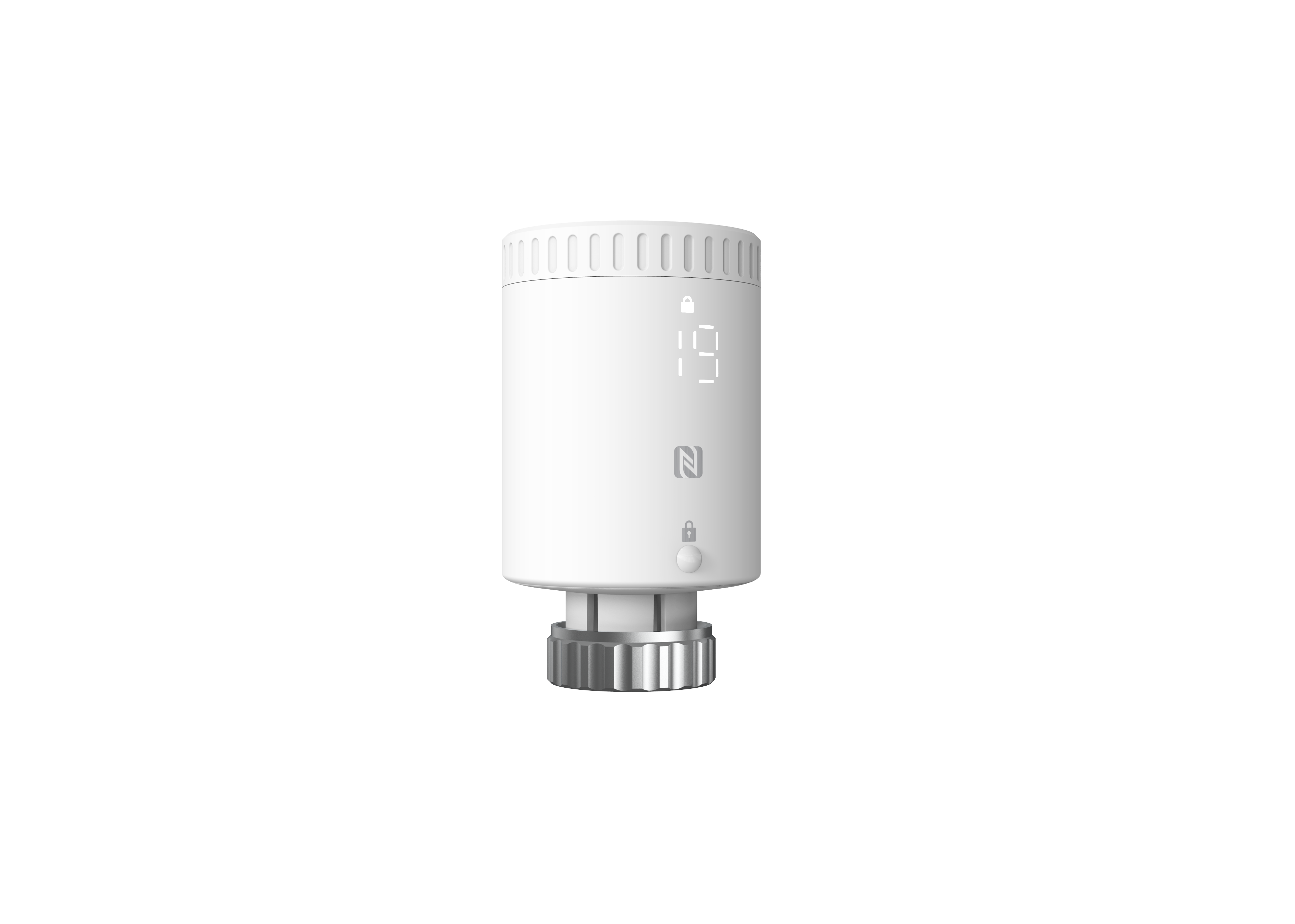

The Milesight WT101 Smart Radiator Thermostat can be adapted to suit any radiator.
Details Additional Info Data Sheet Manual
Utilising LoRaWAN® technology, this wireless device will transmit recorded data to your connected LoRaWAN® gateway via a LoRa network server. This data can then be visualised on your preferred dashboard to control room temperatures and trigger other sensors or appliances to activate.
Precision Temperature Settings: Experience unparalleled temperature precision with the Milesight WT101. Set the exact temperature for each room, creating personalised comfort zones to suit individual preferences. This not only enhances comfort but also optimises energy consumption.
Protection in Public Areas: The smart radiator thermostat offers a child-lock feature to enable you to tamper-proof your device. With an integrated LED display, the temperature can also be easily viewed by people using the room.
Easy Installation: Installing the Milesight WT101 is a breeze. The user-friendly design ensures a hassle-free setup process, allowing you to start enjoying the benefits of smart heating in no time. Elevate your heating use and indoor conditions with the Milesight WT101 Smart Radiator Thermostat. With this product, there is a tamper-proof casing available too, further protecting your Smart Thermostat.
Ideal for a wide range of applications such as:
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
| Temperature Sensor | |
| Sensor Type | NTC |
| Range | -20°C ~ 60°C |
| Accuracy | ± 0.5°C (0°C ~ 50°C) |
| Resolution | 0.1°C |
| Valve Control | |
| Actuator | Stepping Motor |
| Default Valve Fitting | M30 × 1.5 mm |
| Optional Adapters | RA, RAV, RAVL, Giacomini, M28 (Comap, Herz, TA) |
| Advanced Features | Automatic Temperature Control, Valve Opening Control, Heat Plans, Freeze Protection, Open-window Detection, Tamper Alarm |
| Dimensions | Ø 52 × 90 mm (Ø 2.05 × 3.54 in) |
| Weight | 170g (With Batteries) |
| Material & Colour | Stainless Steel & ABS, White |
| Installation | Latching onto Valve |
| Display | LED Display with White Light |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C (Without Batteries) |
| Relative Humidity | 0% ~ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Regulatory | CE, RoHS |
| Power Supply | 2 × 1.5V Li-FeS2 AA Replaceable Batteries (3000 mAh in Total) |
| Battery Life1 | Around 8 Years (SF7, EU868) Around 5 Years (SF10, EU868) (10-min Interval, Control Once During 5-month Heating Season, 25°C) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our team are happy to advise customers on the best smart radiator thermostats for their specific applications on an individual project basis.
