SKU: WTS506-868M
Discover accurate, reliable and continuous weather monitoring with the Milesight IoT Weather Station.
Details Additional Info Data Sheet Manual
The Milesight IoT weather station offers precise measurements for temperature, humidity, air pressure, wind speed, and direction, ensuring you get reliable data for your specific location. This compact, cutting-edge device brings the power of meteorological monitoring right into your hands.
The WTS506 Milesight Weather Station is made of aluminium and features an integrated rainfall gauge. It’s suitable for agriculture, environmental monitoring, and research where precise data on solar radiation, UV index, and precipitation are critical.
In the agricultural field, the weather plays a crucial role in the quality of food produced. By using the Milesight IoT Weather Station, you can monitor temperature, humidity, and precipitation levels in real-time. This data helps you determine the ideal time for harvesting. For instance, specific temperature and humidity conditions might be optimal for the ripening process.
Outside of agricultural applications, the Milesight IoT Weather Station can be used in:
The station can even communicate with other IoT devices and systems, allowing for a holistic view of data. This integration capability enables you to combine weather data with other relevant information, fostering a comprehensive understanding of various environmental factors and their interdependencies.

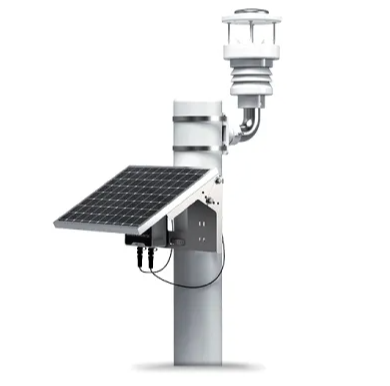

Consisting of three key components, the Milesight IoT Weather Station is made up of: WTS sensors, WTS hub and a solar panel for sustainable installation.
Utilising LoRaWAN® technology, the Milesight IoT Weather Station is completely wireless. The smart device transmits recorded data to a connected LoRaWAN® gateway. The data is then sent to the smartphone app and/or your chosen third-party platform for visualisation by a LoRaWAN® network server.
| Wireless Transmission (WTS Hub) | |
|---|---|
| Protocol | LoRaWAN® |
| Antenna | Internal Antenna |
| Frequency | EU868 (Other frequencies available on request) |
| Tx Power | 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| Mode | OTAA/ABP Class A |
| Temperature Sensor | |
| Range | -40°C ~ +60°C |
| Accuracy | ± 0.3°C |
| Resolution | 0.1°C |
| Humidity Sensor (Capacitive) | |
| Range | 0% ~ 100% RH |
| Accuracy | ± 3% RH |
| Resolution | 0.1% RH |
| Barometric Pressure Sensor | |
| Range | 300 ~ 1100 hPa |
| Accuracy | ± 0.5 hPa |
| Resolution | 0.01 hPa |
| Wind Speed Sensor (Ultrasonic) | |
| Range | 0 ~ 60 m/s |
| Accuracy | ± 0.3 m/s (0 ~ 10 m/s), ± 3% (10 ~ 60 m/s) |
| Resolution | 0.01 m/s |
| Wind Direction Sensor (Ultrasonic) | |
| Range | 0° ~ 360° |
| Accuracy | ± 3° |
| Resolution | 1° |
| Rainfall Sensor (Piezoelectric) | |
| Range | 0 ~ 400 mm/h |
| Accuracy | ± 10% |
| Resolution | 0.1 mm |
| Software & Features | |
| Configuration | Mobile App via NFC or USB Type-C |
| Data Storage | Up to 19,000 Records with Retransmission Support |
| Advanced Features | Threshold Alarm, Data Retransmission, FUOTA |
| Cloud Compatibility | Milesight IoT Cloud, AWS IoT, ThingsBoard, ChirpStack, TTN |
| WTS506 Sensor Dimensions | Ø 160 × 263 × Ø 73 mm |
| WTS Hub Dimensions | 176 × 100 × 62 mm (6.93 × 3.94 × 2.44 in) |
| Solar Panel Dimensions | 235 × 155 × 17 mm (9.25 × 6.10 × 0.67 in), 15 W |
| Housing & Colour | WTS506 Sensor: Aluminium Alloy, Black WTS Hub: ABS & PC, White |
| Installation | Pole Mounting (Pole Diameter 30 ~ 50 mm) |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 0% ~ 95% (Non-condensing) |
| Ingress Protection | IP65 (WTS506 Sensor), IP67 (WTS Hub) |
| Regulatory | CE, FCC, RoHS |
| Power Supply | 15 W Monocrystalline Silicon Solar Panel with 2 × 2550 mAh Rechargeable Battery Backup |
| Battery Backup Duration | Up to 7 Days Without Sunlight |
£258.59 (RRP) +VAT
