SKU: R718CK2

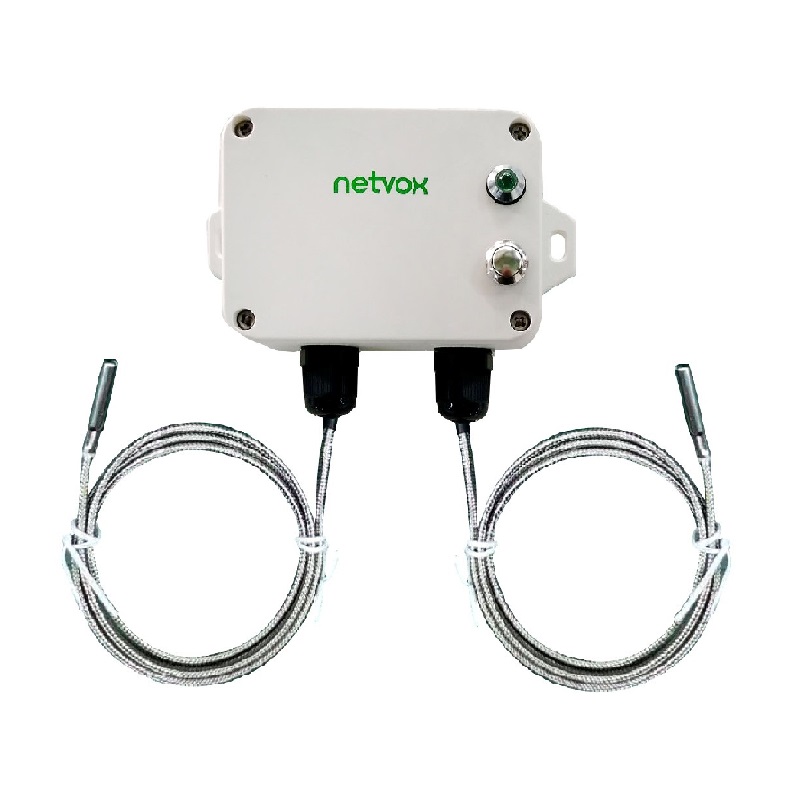

Netvox’s dual element LoRaWAN thermocouple temperature sensor measures two points simultaneously to gauge differences and changes in temperature.
Details Additional Info Data Sheet Manual
Variants:
Netvox's dual element LoRaWAN® thermocouple temperature sensor measures two points simultaneously to gauge differences and changes in temperature. The temperature readings are sent to a centralised monitoring system via the LoRaWAN® gateway at pre-configured intervals.
We can supply third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.
| Input Power | 2 x 3.6V ER14505 AA lithium batteries (3.6V2400mah/section) |
| Battery Life | 5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, Txpower = 20dBm, LoRa spreading factor SF = 10) |
| Sleeping Mode | 36uA |
| Wake Up Mode | 6.3mA/3.3V |
| Transmitting Current (Max) | 120mA/3.3V |
| Receiving Current (Max) | 11mA/3.3V |
| Low Voltage Threshold | 3.2V |
| Battery Voltage Measurement Accuracy | ±0.1V |
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor=12, Bit Rate=293bps) -121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Built-in Antenna |
| Communication Range | 10 km (line-of-sight, actual transmission distance depends on the environment) |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU868 (others are available on request) |
| Dimensions | Main Body: 112mm x 88.19mm x 32mm |
| Weight | 141g |
| Environment Temperature Range | -20°C ～ 55°C |
| Environment Humidity Range | <90% RH (No Condensation) |
| Storage Temperature | -40°C ～ 85°C |
| Measurement Accuracy | Type K thermocouple: -40~375°C +-1.5°C |
| Thermocouple Wire Length | 1 Metre |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN thermocouple sensors to suit specific project requirements.
£258.59 (RRP) +VAT
