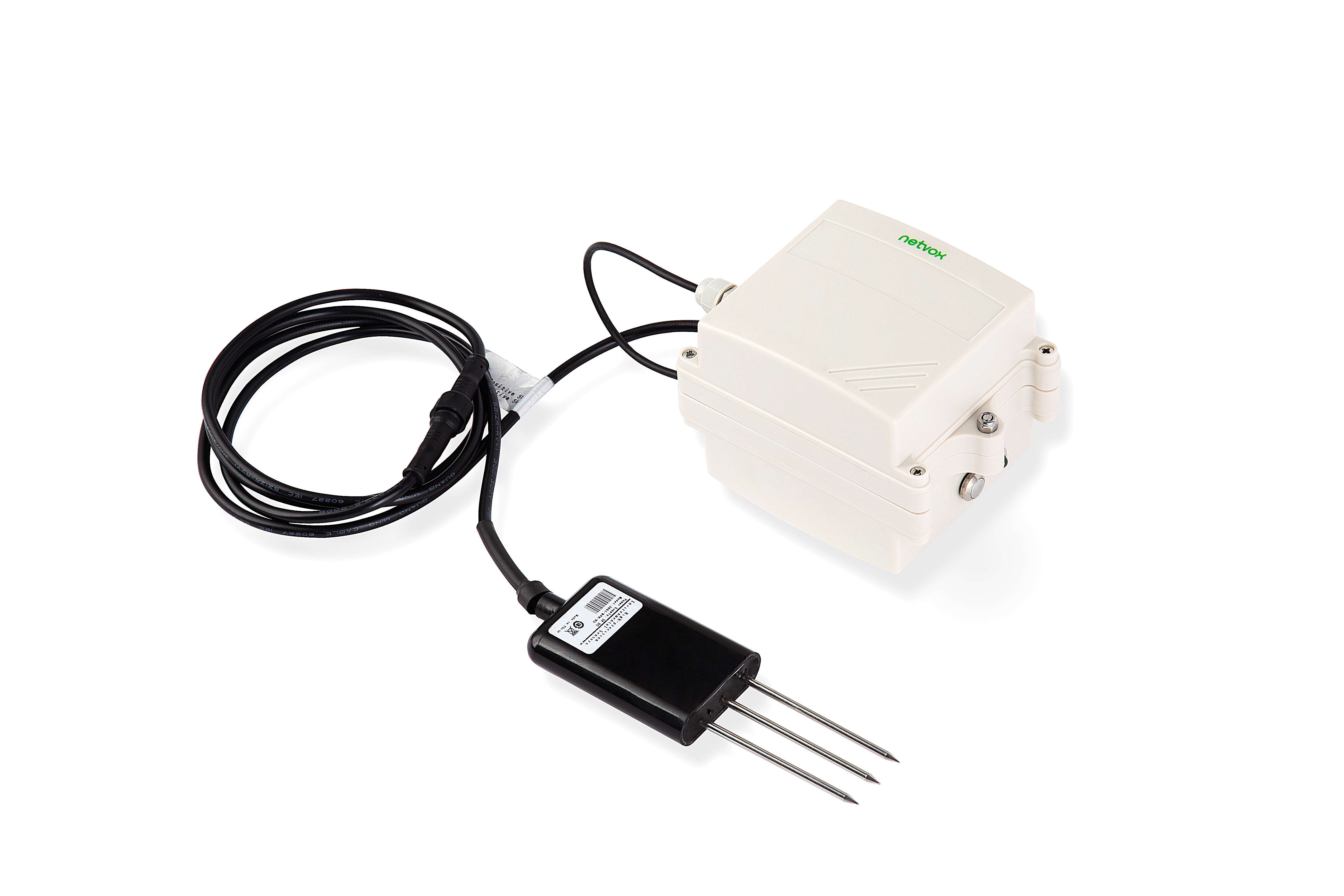

Netvox Wireless Soil NPK Sensor

Product Description

R72632A can detect and send soil nitrogen (N), phosphorus (P) and potassium (K) data. It is a wireless communication mode, adopts SX1276 wireless communication module.

Features

Apply SX1276 wireless communication module
2 x 3.6v ER34615 power supply
LoRaWAN™ Class A compatible
Soil nitrogen (N), phosphorus (P) and potassium (K) detection
Frequency Hopping Spread Spectrum (FHSS)
Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Improved power management for longer battery life

Parameters

Power Supply	2x3.6V ER34615 lithium batteries
Operating Voltage	6.8v to 7.2v
Standby Current	≤400uA
Wakeup Current	6.3mA
Receiving Current (max)	11mA @3.3V
Transmitting Current (max)	120mA/3.3V
Battery Voltage Accuracy	±0.1V
Low Voltage Threshold	6.8V
Detection Range of Soil NPK	0-1999 mg/kg

Frequency Range	863MHz-928MHz 470MHz-510MHz
TX Power	US915 20dbm； AS923 16dbm； AU915 20dbm； CN470 19.15dbm； EU868 16dbm； KR920 14dbm； IN865 20dbm；
Receiving Sensitivity	-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	Built-in antenna
Communication Distance	Up to 10 km (visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate	LoRa: 0.3kbps～50kbps FSK: 1.2kbps～300kbps
Modulation	LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band	EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, IN865-867,CN470-510

Dimension	Main Body: 117 mm x 89.05 mm x 82 mm NPK Sensor: 137mm x 45mm x 15mm
Sensor Wiring	1.25m
Environment Temperature Range	-20℃ to 55℃
Storage Temperature Range	-40℃ to 85℃
Environment Humidity Range	<90%RH (No condensation)
