SKU: 50-70-098

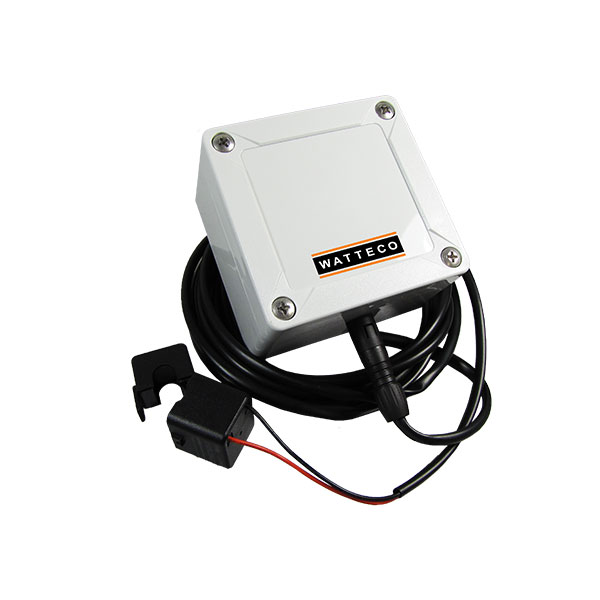

The WATTECO INTENS’O sensor measures the electrical current that flows through the AC power supply of any equipment.
Details Additional Info Data Sheet Manual
The WATTECO INTENS’O sensor measures the electrical current that flows through the AC power supply of any equipment. The sensor is used to determine the equipment status according to one or more configurable current thresholds. Data is transmitted over a public or private LoRaWAN® radio network.
| Battery | Up to 10 years |
| Current Transformer: | Clamp 41 x 29.5 x 26mm; for insulated conductor up to Ø9mm Remote on 3m cable (Ø4.1mm) – connected to the sensor by a plug-in connector with ext. Ø 12mm |
| Transformation Ratio: | 1 : 1000 |
| Monitoring Range: | 0 – 20A RMS on 110, 230, 380 or 400VAC, 50/60Hz power supply 0.1A resolution in the range of 1 to 20A |
| Maximum Current: | 10A RMS |
| MDielectric insulation of the clamp: | 1000V – 1mA – 1 minute |
£86.67 (RRP) +VAT
