Watteco Lev'O + Liquid for Toran'O

SKU: 50-70-209

The WATTECO LEV’O+ Liquid Level solution is used to determine the level of a tank, cistern or cavity, to accurately monitor variations in the level of the liquid.

£367.37 (RRP) +VAT

Product Description

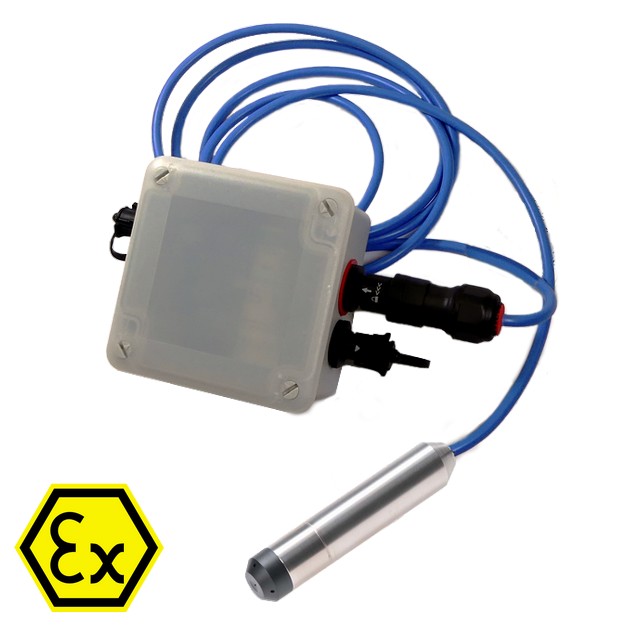

The WATTECO LEV’O+ Liquid Level solution is used to determine the level of a tank, cistern or cavity, to accurately monitor variations in the level of the liquid and does not require knowledge of its geometric dimensions. By measuring the relative pressure of the liquid (water, fuel, oil, liquid fertiliser, etc.), LEV’O+ transmits the data over a public or private LoRaWAN® radio network, thus enabling the application to establish the relationship between the analogue value and the height of the liquid.

PLEASE NOTE: This device requires the use of the WATTECO TORAN’O which is available to purchase separately.

Features

LoRaWAN® Compliant
Easy to deploy & use
Remote level measurement probe on 5m cable
RED & RoHS Certified

Parameters

Pressure Mode	Relative thanks for the IP55 connection box
Pressure range Max. deviation at 25°C Resolution	0.0 – 0.3 bar ± 0.8% of full scale 0.1% of full scale
Sealing Material	Fluoro-elastomer (not suitable for drinking water)
Output / Power Supply	4 – 20mA / 10 – 30 VDC
Electrical Connection	2 metres after the junction box (Other lengths available on request)
Output Interface	4-pin Amphenol – Plug & Play with TORAN’O device
Ex-protection	ATEX zone 1 area when it’s conncted to the TORAN’O
IP Rating	IP68

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
