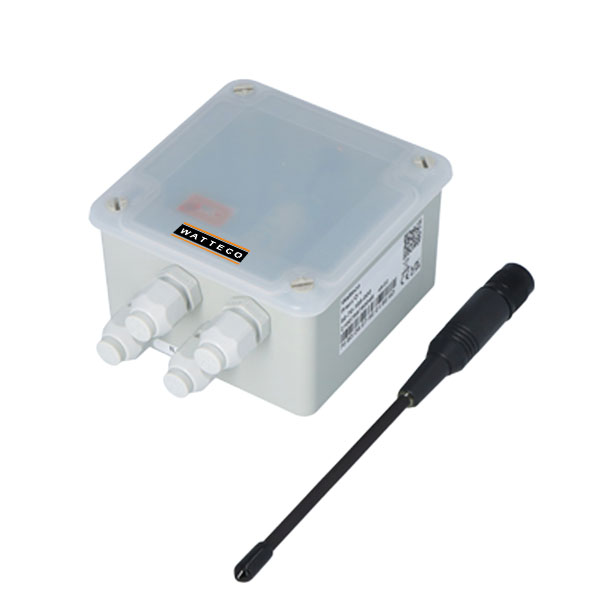

Watteco PRESS'O+

PRESS’O + is a LoRaWAN® Class A transceiver designed to transfer data collected from 0-10V and 4-20mA analog interfaces. It allows to transform an existing sensor or gauges to a wireless sensor.

The PRESS'O+ sensor is a long range, low power consumption, high performance and high quality LoRaWAN® Class A device that transforms any type of 0-10V, 4-20mA analog sensor into a wireless sensor. PRESS'O+ can also remotely report the I/O status (On/Off switching) of industrial equipment such as pressure switches, pumps, fans, valves, heaters… The PRESS'O+ digital input is compatible with Pulse S0 interface to remotely read metering data from a meter. PRESS'O+ is designed for users looking to remotely monitor and measure any kind of fluid level.

A specific embedded electronic system is used to manage the power supply of the gauge connected to the sensor. PRESS'O+ can operate either from a 3.6V lithium battery or from an external 9V-24V/500mVpower supply. The measured parameters can be locally stored, concatenated and compressed. This unique batch mechanism significantly reduces the amount of data transmitted for demanding applications and drastically increases the autonomy up to 5 years (24 measurements per day & 1 transmission per day) when operating on battery.
