SKU: 50-70-150

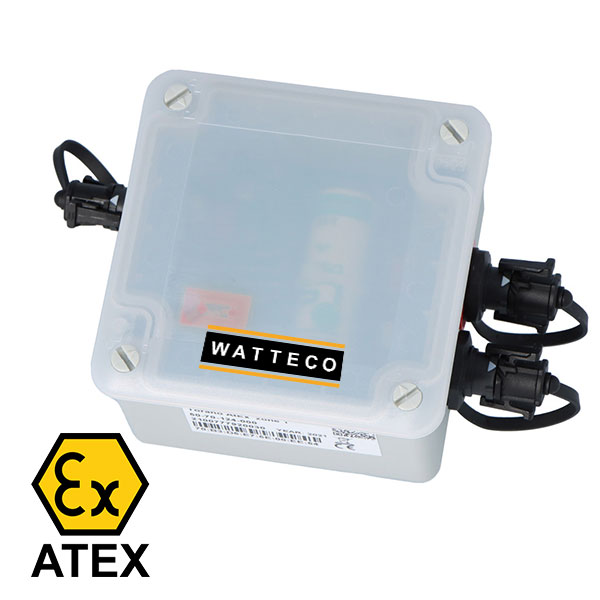

The WATTECO Toran?O ATEX ZONE 1 sensor is used to report status changes, pulse count values and analog measurements of equipment in an AtEx 1 sensitive zone such as water, gas, electricity or thermal energy meters, mechanical pressure switches, pressuretransducers.
Details Additional Info Data Sheet
The WATTECO Toran’O ATEX zone 1 sensor is used to report status changes, pulse count values and analogue measurements of equipment in an ATEX 1 sensitive zone such as water, gas, electricity or thermal energy meters, mechanical pressure switches, pressure transducers. It allows existing equipment to communicate over a public or private LoRaWAN® network.
Compatible with the Lev’O+ LPG sensor and the Lev’O Liquid Level Sensor.
| Battery | Up to 8 years |
| Inputs: SO and intrinsic safety parameters | Uo=6.33V; Io=33μA; Po=23uW; Co=650μF [IIB]; Co=28μF|IIC]; Lo=1H [IIB]; Lo=1H [IIC]. Ui=25V; Ii=450mA; Ci=3.3nF, Li=0H |
| Input: 4-20mA and intrinsic safety parameters | U0 = 18.9V; I0 = 91mA; P0 = 430mW; C0 = 1.6μF [IIB]; C0 = 262nF [IIC]; L0 = 17mH [IIB]; L0 = 4mH [IIC]. |
| Input: 0-5V and intrinsic safety parameters | Uo=6.51V; Io=67mA; Po=108mW; Co=500μF [IIB]; Co=22μF|IIC]; Lo=33mH [IIB]; Lo=8mH [IIC]. |
| Transmitting Current (Max) | 127mA/3.3V |
| Battery Voltage Measurement Accuracy | ±0.1V |
| Current Measurement Accuracy | <+-1% |
| Current Measurement Accuracy Range | 10A to 630A (depending on the current transformer configuration) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
Our technical sales team are also happy to advise customers on the best Pulse Counters to suit specific project requirements.
Certifications
