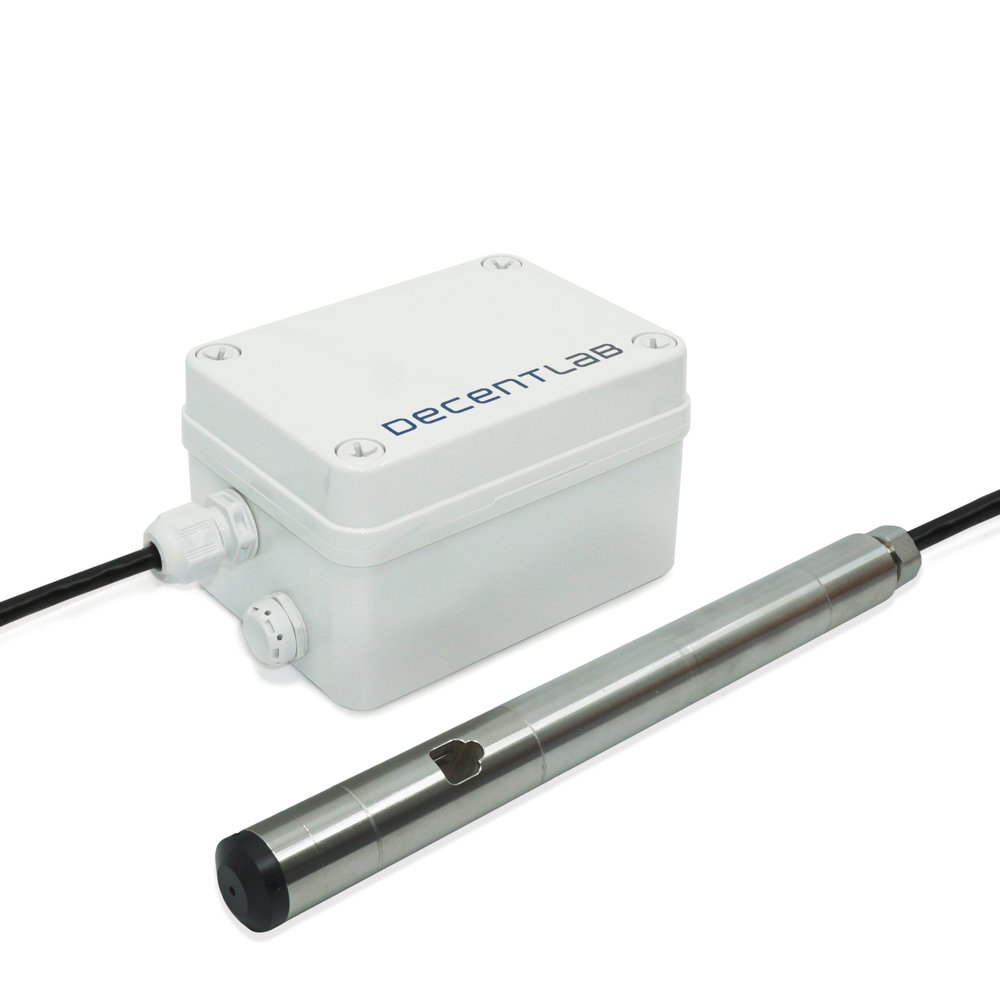

DecentLab High-precision pressure / liquid level temperature and electrical conductivity sensor for LoRaWAN

Product Description

The Decentlab LoRaWAN®-enabled high-precision piezoresistive pressure sensor/depth gauge including temperature and conductivity sensors. Providing pressure measurements between 0 - 1 bar (0 ... 10 m); up to 30 bar (300 m) on request. This smart device also has an electrical conductivity range of 0 - 20 mS/cm (other ranges on request). With a cable length of 10 m (custom lengths on request) and an RS-485 interface for robust operation in harsh environments, this device can be customised to have cable lengths of several hundred metres. The Decentlab pressure and electrical condutivity sensor is compatible with LoRaWAN® networks of any provider. Simply place and measure; no setup required. Ideal for applications such as:

• Level/depth and conductivity monitoring in tanks for liquids
• Water quality monitoring in fish farms
• Groundwater level and quality monitoring
• Level/depth monitoring in wells up to 300 metres deep
• Water depth and temperature monitoring in running or open water
• Relative pressure measurements
• Absolute pressure measurement (on request)

Configurable via command line interface and downlink command interface this sensor can be left unattended for several years without replacing batteries. Housed in a robust polycarbonate enclosure, this device is weatherproof, impact and UV-resistant with an IP67 rating.

Features

• LoRaWAN® Compatible
• Requires standard alkaline (C-type) batteries
• CE compliant
• Wireless range up to 10 km (line of sight), approx 2 km (suburban areas)
• Suitable for monitoring outdoor environments

Parameters

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® Pressure & Electrical Conductivity Sensor to suit specific project requirements.
