SKU: ERSELITE-L
The Elsys ERS Eco is a revolutionary LoRaWAN® sensor designed for indoor environmental monitoring, specialising in measuring temperature and humidity. It is the ideal choice for businesses and homes looking to combine precision monitoring with sustainable practices.
Details Additional Info Data Sheet

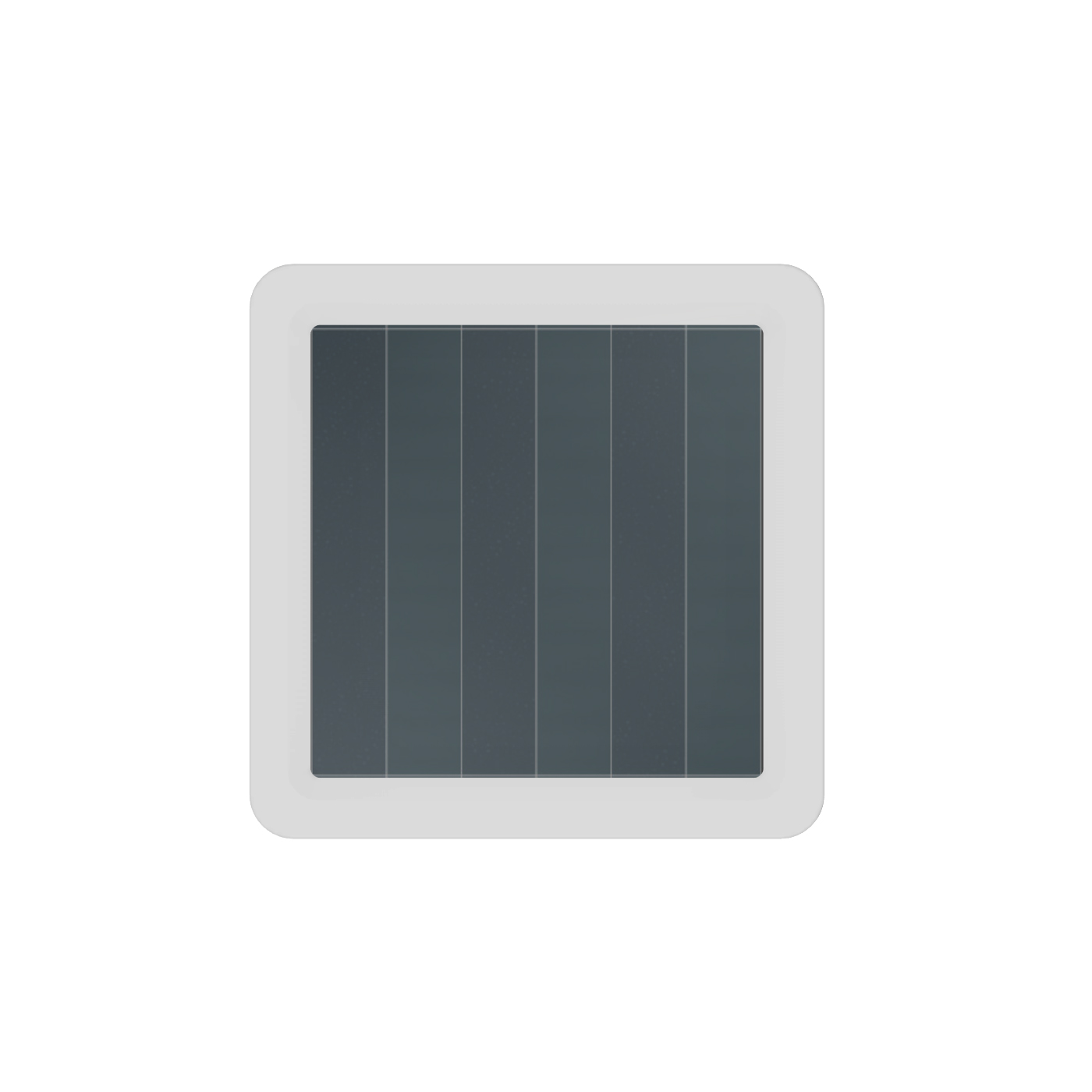

The Elsys ERS Eco Sustainable Environment Sensor is a revolutionary LoRaWAN® sensor designed for indoor environmental monitoring, specialising in measuring temperature and humidity. It is the ideal choice for businesses and homes looking to combine precision monitoring with sustainable practices.
What sets the ERS Eco apart is its environmentally friendly design. Powered entirely by an organic indoor solar cell, it eliminates the need for batteries, significantly reducing electronic waste. Additionally, its enclosure is made from biodegradable materials, ensuring a minimal environmental footprint while providing reliable and accurate monitoring.
The ERS ECO Sustainable Environment Sensor is highly versatile, making it find use in a wide range of applications, including:
In today's interconnected world, the ability to monitor and control devices remotely is highly valuable. The ECO sensor excels in this aspect by offering seamless integration with smart home systems and mobile devices.
*This smart device transmits recorded data to a connected LoRaWAN® gateway. The data is then sent to your chosen third-party platform for visualisation by a LoRaWAN® network server.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.4 |
| Device Type | Class A (Configurable) End-Device |
| Supported Regions | EU863-870, IN865 |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| Temperature Sensor | |
| Accuracy | ± 0.2°C (Typical) |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Accuracy | ± 2% RH at 25°C |
| Resolution | 0.1% RH |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Sampling Interval | Configurable via NFC or Downlink |
| Data Upload Interval | Configurable via NFC or Downlink |
| Power-Saving Mode | Adaptive Transmission — Only Sends Data When Measured Values Change |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Dimensions | 66 × 66 × 17 mm |
| Weight | 50 g |
| Housing & Material | Biodegradable Material, White |
| Solar Cell | Organic Solar Cell (Built-in, Charges from Standard Indoor Lighting) |
| Installation | Wall Mounting via Screw or Adhesive Tape |
| Operating Temperature | 0°C ~ +50°C |
| Relative Humidity | 0% ~ 85% RH (Non-condensing) |
| Ingress Protection | IP20 |
| Power Source | Organic Solar Cell with Lithium-Ion Capacitor (LIC) Backup — No Replaceable Batteries |
| Dark Autonomy | Up to 50 Days in the Dark (Depending on Configuration and Environment) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
