SKU: ERSVOC

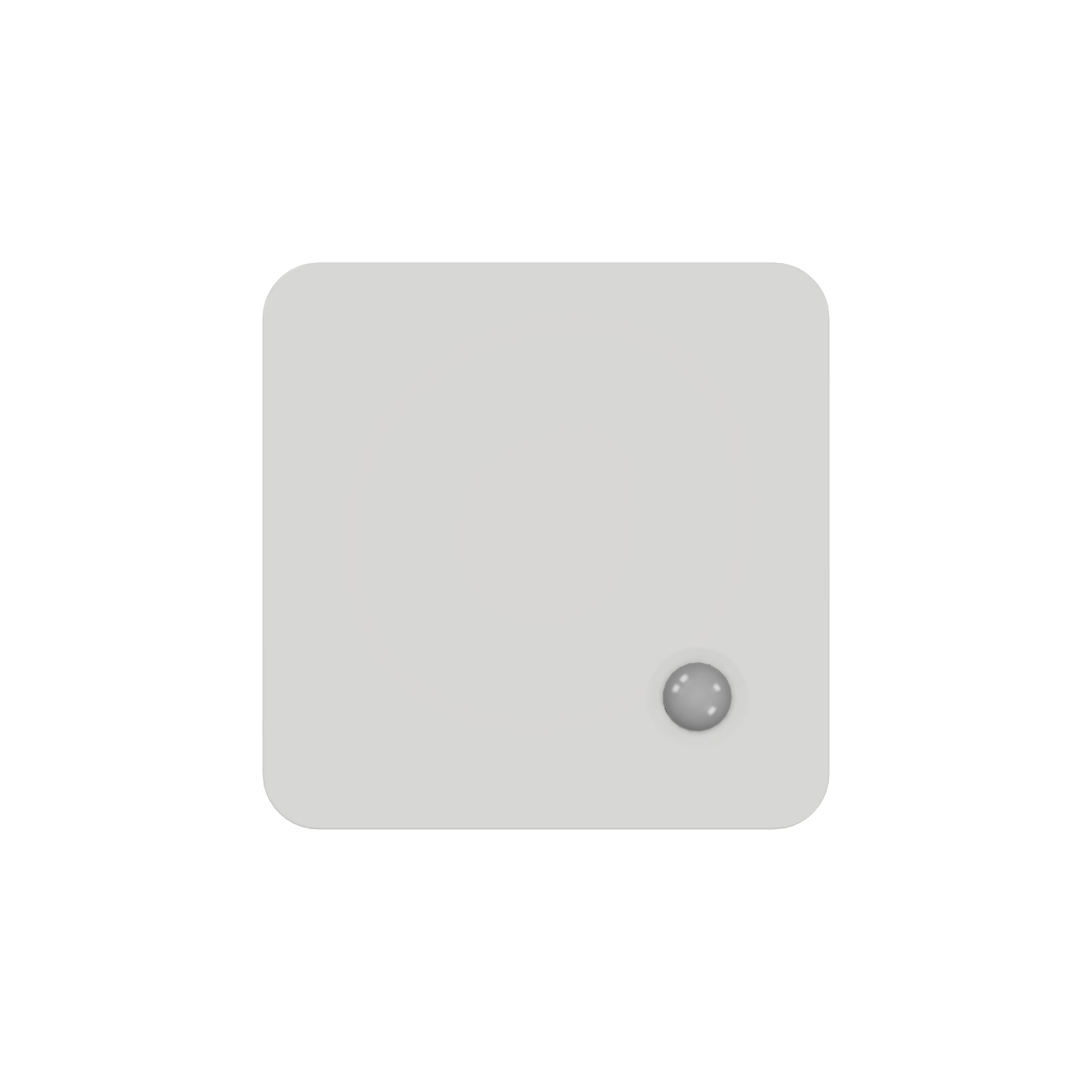

Improve indoor environments with the Elsys ERS VOC air quality sensor. Combining multiple sensors in one smart device, the Elsys ERS VOC monitors: VOC (Volatile Organice Compound) levels, light, temperature, motion, and humidity.
Details Data Sheet Manual
Variants:

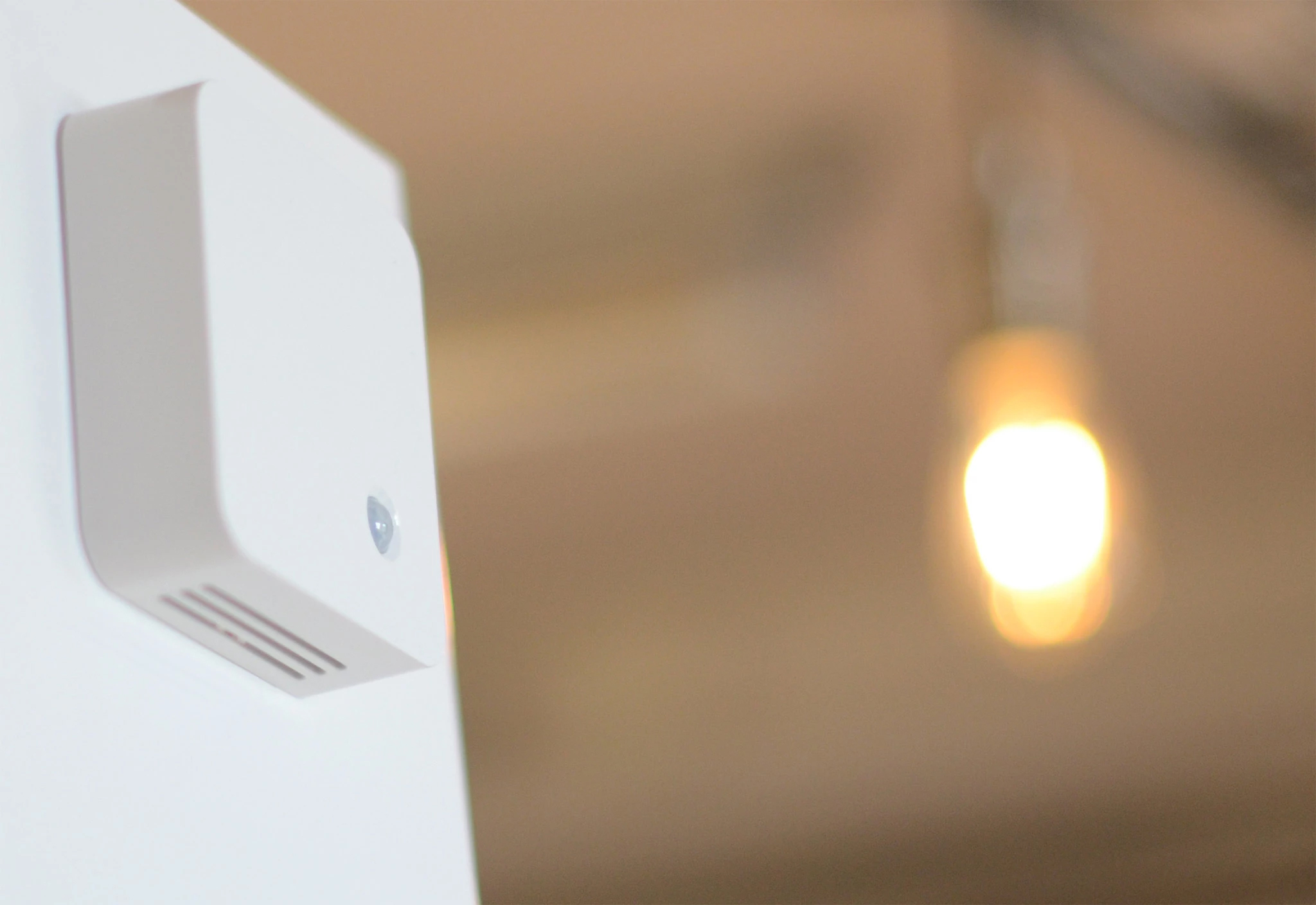

Improve indoor environments with the Elsys ERS VOC air quality sensor. Ideal for mounting in Smart Buildings, the ERS VOC features a discrete form factor, making it ideal for areas where aesthetics are important.
Combining multiple sensors in one smart device, the Elsys ERS VOC monitors:
Air quality monitoring has become an important measurement in the workplace and public areas. Measuring the volatile organic compound in the ambient air helps in monitoring the general air quality indoors.
Utilising LoRaWAN® technology, the Elsys ERS VOC connects to a nearby LoRaWAN® gateway, which then transmits data via a LoRaWAN® Network. Recorded data can then be visualised on your chosen IoT platform, enabling you to optimise room efficiencies.
With a configurable traffic light feature, users of the Elsys VOC air quality sensor can set this sensor to raise a visual alert when CO2 levels or any other value exceed its threshold. Users are able to configure the light colour, frequency, and light intensity of the traffic light feature.
Ideal for the wide range of applications, the Elsys ERS LoRaWAN VOC Sensor is used in:
These sensors are battery-operated (with 2 x AA standard size 3.6V lithium batteries) to offer maintenance-free monitoring, enabling a complete wireless solution.
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® 1.0.3 |
| Device Type | Class A / C (Configurable) End-Device |
| Supported Regions | EU868 (Other frequencies available on request) |
| Supported Features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Link Budget | 137 dBm (SF7) ~ 151 dBm (SF12) |
| Tx Power | Max. 14 dBm EIRP (Region Specific) |
| Wireless Security | End-to-End Encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| VOC Sensor (Metal-Oxide) | |
| Measurement Range | 0 ~ 60,000 ppb (Ethanol / Hydrogen in Air) |
| IAQ Index Range | 0 ~ 500 |
| Run-In Period | Minimum 48 Hours for Accurate Data Reporting |
| Temperature Sensor | |
| Accuracy | ± 0.2°C (Typical) |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Accuracy | ± 2% RH at 25°C |
| Resolution | 1% RH |
| Light Sensor | |
| Range | 0 ~ 65,535 lux |
| Accuracy | ± 10% or ± 10 lux (whichever is greater) |
| PIR Motion Sensor | |
| Detection | Passive Infrared Motion Detection |
| Blanking Time | 8 Seconds After Motion Event |
| Software & Features | |
| Configuration | NFC via Smartphone App (ELSYS Sensor Settings) or Downlink |
| Sampling Interval | Configurable via NFC or Downlink |
| Data Upload Interval | Configurable via NFC or Downlink |
| Traffic Light Indicator | Configurable Threshold, Colour, Frequency & Intensity |
| Regulatory | CE (RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU), FCC, IC |
| Dimensions | 86 × 86 × 27 mm |
| Weight | 60 g (Excluding Batteries) |
| Housing & Material | PC & ABS, White |
| Installation | Wall Mounting — 1.6 m Height Recommended, Ventilation Openings Vertical |
| Operating Temperature | 0°C ~ +50°C |
| Relative Humidity | 0% ~ 85% RH (Non-condensing) |
| Ingress Protection | IP20 |
| Power Supply | 2 × 3.6V AA ER14505 Lithium Batteries (Not Included) |
| Battery Life | Up to 5 Years (Depending on Configuration and Environment) |
All of our products are available to customers throughout Europe. For more information on shipping costs, trade pricing and lead times, please contact our team.
Our technical sales team are also happy to advise customers on the best LoRaWAN® air quality solution for their specific applications on an individual project basis.
