SKU: PDTIOT-IFE03

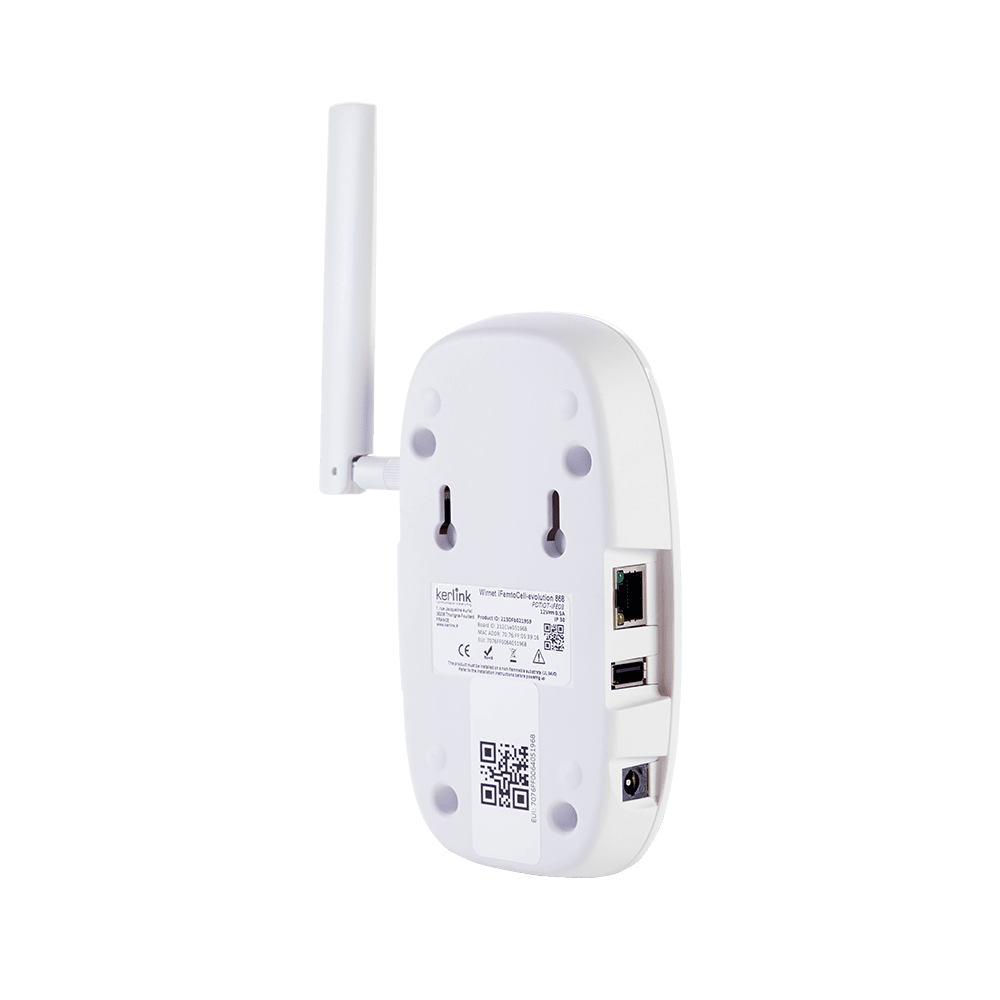

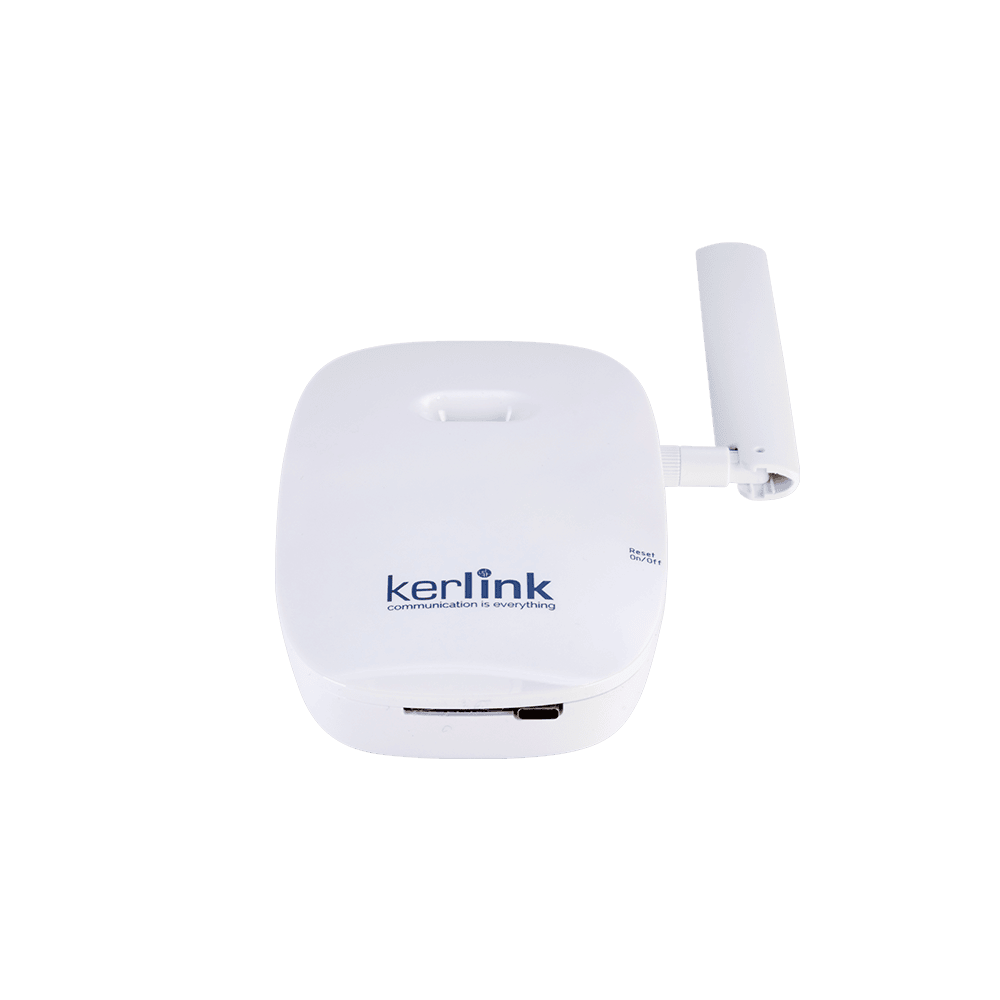

The Kerlink Wirnet iFemtoCell Evolution is a carrier-grade, indoor LoRaWAN gateway designed for enterprise, industrial, and smart-city/smart-building IoT applications
Details Additional Info Data Sheet
The Kerlink Wirnet iFemtoCell Evolution is a carrier-grade indoor LoRaWAN gateway. Built for smart buildings, smart cities, and industrial IoT, it delivers exceptional signal penetration in challenging areas like basements and elevators, while supporting standalone, self-operating private networks.
Pre-configured Plug & Play installation options are available to help accelerate your time to market from initial pilot kit testing right through to commercial scalable deployments.
The gateway can be installed in demanding environments (basements, underground, parking, etc.). The gateway can secure software architecture, ensuring reliable connectivity for the core of your IoT solutions.
The Kerlink iFemtoCell Evolution is suitable for a variety of applications, including:
| LoRaWAN® | |
|---|---|
| Protocol | LoRaWAN® (Class A, B & C) |
| Frequency | EU863-870 MHz (UK ISM Band) |
| Channels | 8 × RX (125 kHz, Multi Spreading Factor) + 1 × RX (250 kHz or 500 kHz, Mono Spreading Factor) + 1 × RX (FSK) + 1 × TX = 10 RX + 1 TX |
| Tx Power | 5 dBm ~ 24 dBm (Adjustable) |
| RX Sensitivity | Up to -140 dBm (SF12) |
| Antenna Connector | 1 × SMA or RP-SMA Female, 50 Ω |
| Rejection Filters | Built-in High-Rejection Filters |
| Backhaul Connectivity | |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Cellular | 4G LTE Worldwide Module with 3G / 2G Fallback |
| SIM Slot | 1 × Mini SIM (Nano SIM Adapter Included) |
| Processing & Memory | |
| Processor | ARM Cortex A9 |
| RAM | 256 MB DDRAM |
| Storage | 8 GB eMMC (6 GB User-Available) |
| Security & Management | |
| Secure Boot | Signed Firmware (SecureBoot) |
| Secure Storage | Keys & Certificates in Secured Area (ProvenCore™) |
| VPN | OpenVPN, IPsec |
| Watchdog | Hardware Watchdog with Automatic Recovery |
| Zero-Touch Provisioning | Supported (Magic Link) |
| Remote Management | The Things Stack, ChirpStack, Actility, LORIOT, Daizy |
| Dimensions | 160 × 90 × 35 mm |
| Weight | 163 g (Gateway Only) |
| Colour & Material | White, Plastic Enclosure |
| Key Difference vs iFemtoCell | 4G / 3G / 2G Cellular Backhaul replaces Built-in Wi-Fi (Shares Same Form Factor & Software) |
| Installation | Desktop or Wall Mounting |
| Operating Temperature | -20°C ~ +55°C (Without Power Supply) |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Ingress Protection | IP30 (Indoor Use Only) |
| Regulatory | CE, UKCA, RoHS |
| Power Supply | 1. 90 ~ 264 VAC / 12 VDC AC Adapter (5.5 × 2.5 mm Jack, Included) 2. 5V DC via USB Type-C Port 3. Uninterrupted Power Supply Accessory (5 h or 24 h Autonomy, Optional) |
| Typical Power Consumption | 5 W |
| Maximum Power Consumption | 12.5 W |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
