SKU: EM300-CL-868M
The Milesight EM300-CL is a non-contact capacitive liquid level sensor designed specifically for monitoring hand wash levels in restrooms using LoRaWAN®
Details Additional Info Data Sheet Manual

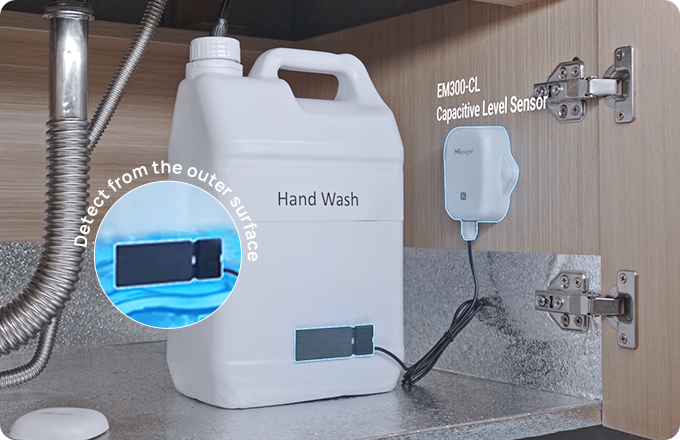

The Milesight EM300-CL is a non-contact liquid level sensor based on LoRaWAN®, which relies on the capacitive sensing principle. It is mainly used to monitor hand wash in restrooms and send out alarms when there is insufficient hand wash left. An alarm will be triggered when the hand wash level approaches the electrode detection sheet, signalling hand wash insufficiency. It can be seamlessly integrated with containers of different shapes and sizes to alert and ensure handwash is replenished on time, promoting the good operation of smart hygiene and cleaning management system. In addition, with LoRaWAN® technology supports low power consumption, allowing the built-in high-capacity battery to last for several years without replacement. Moreover, EM300-CL is compatible with both Milesight’s gateway and Milesight IoT Cloud to achieve remote monitoring and smart data management, allowing water conservation.
Ideal for a wide range of applications, including:
| Dimensions | Transceiver: 105.6 × 85.2 × 27 mm (4.15 × 3.35 × 1.06 in) Electrode Detection Sheet: 56.8 x 25.5 x 0.2mm (2.24 × 1 × 0.0079 in) |
| Weight | 110g (with 1 battery) |
| Frequency | EU868 (Other frequencies available on request) |
| TX Power | 16dBm(868 MHz)/20dBm(915 MHz)/19dBm(470 MHz) |
| Technology | LoRaWAN® |
| Input Power | 1 × 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries) |
| Battery Life | >10 years (Trigger 3 Alarms per Day, 25℃) |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® sensors to suit specific project requirements.
Certifications
