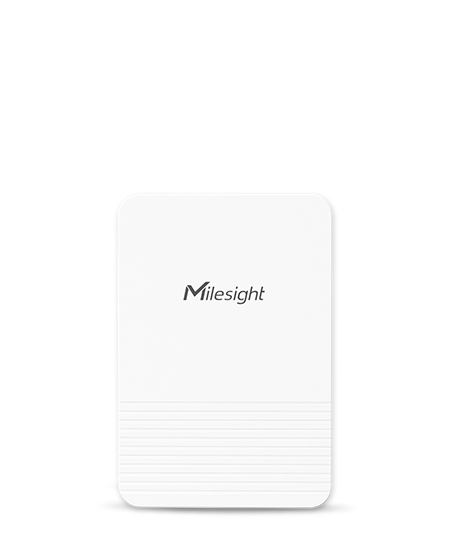

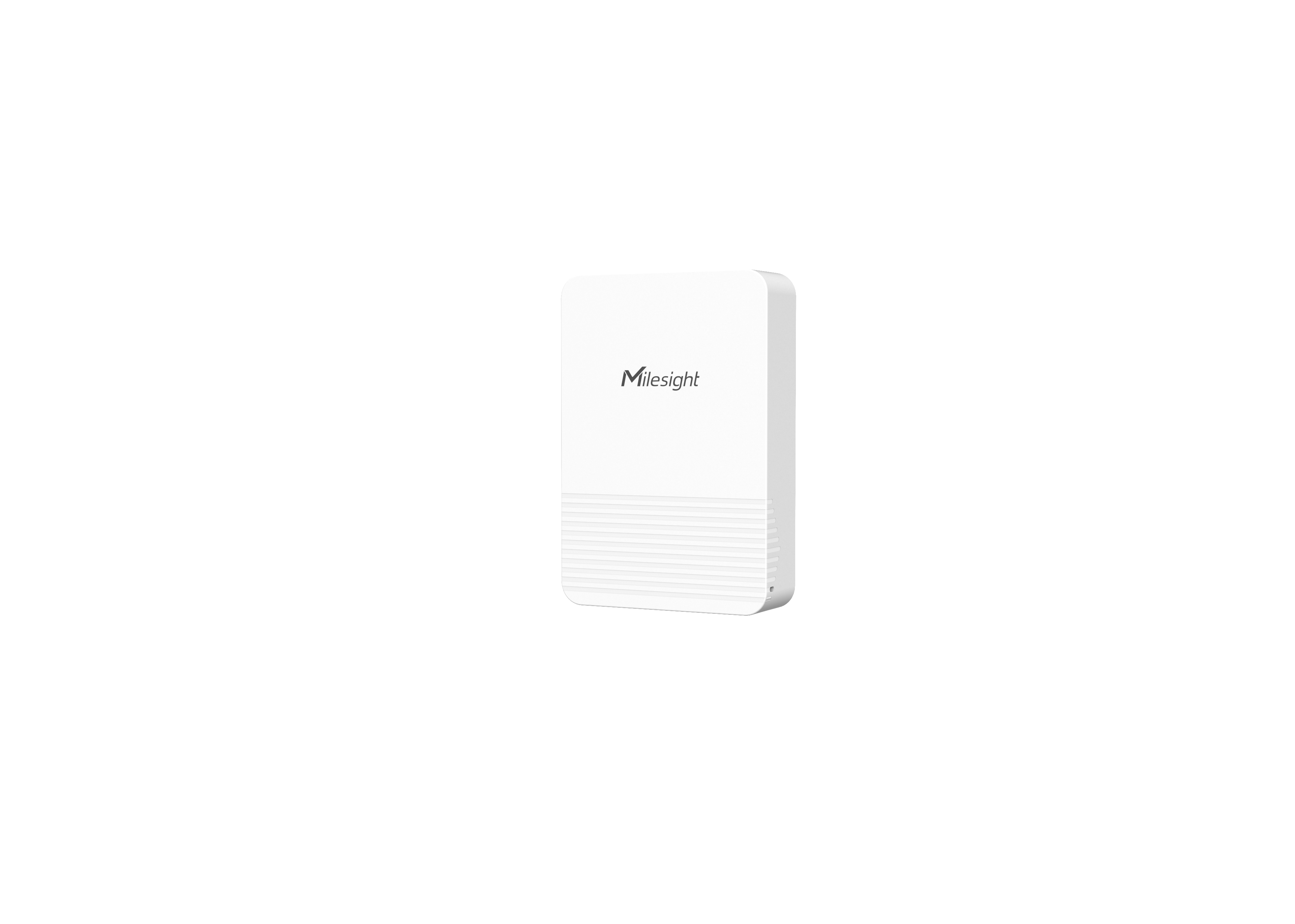

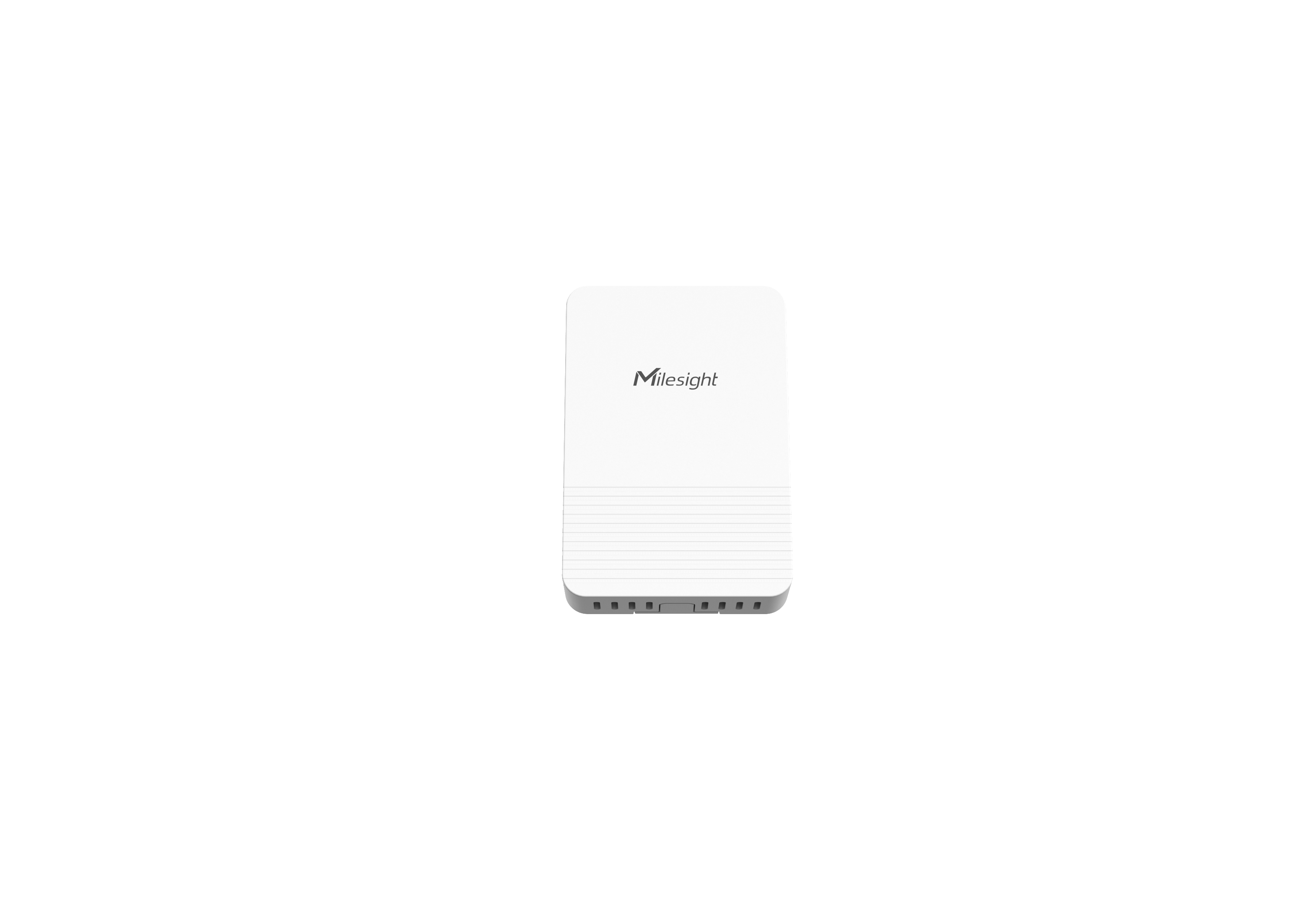

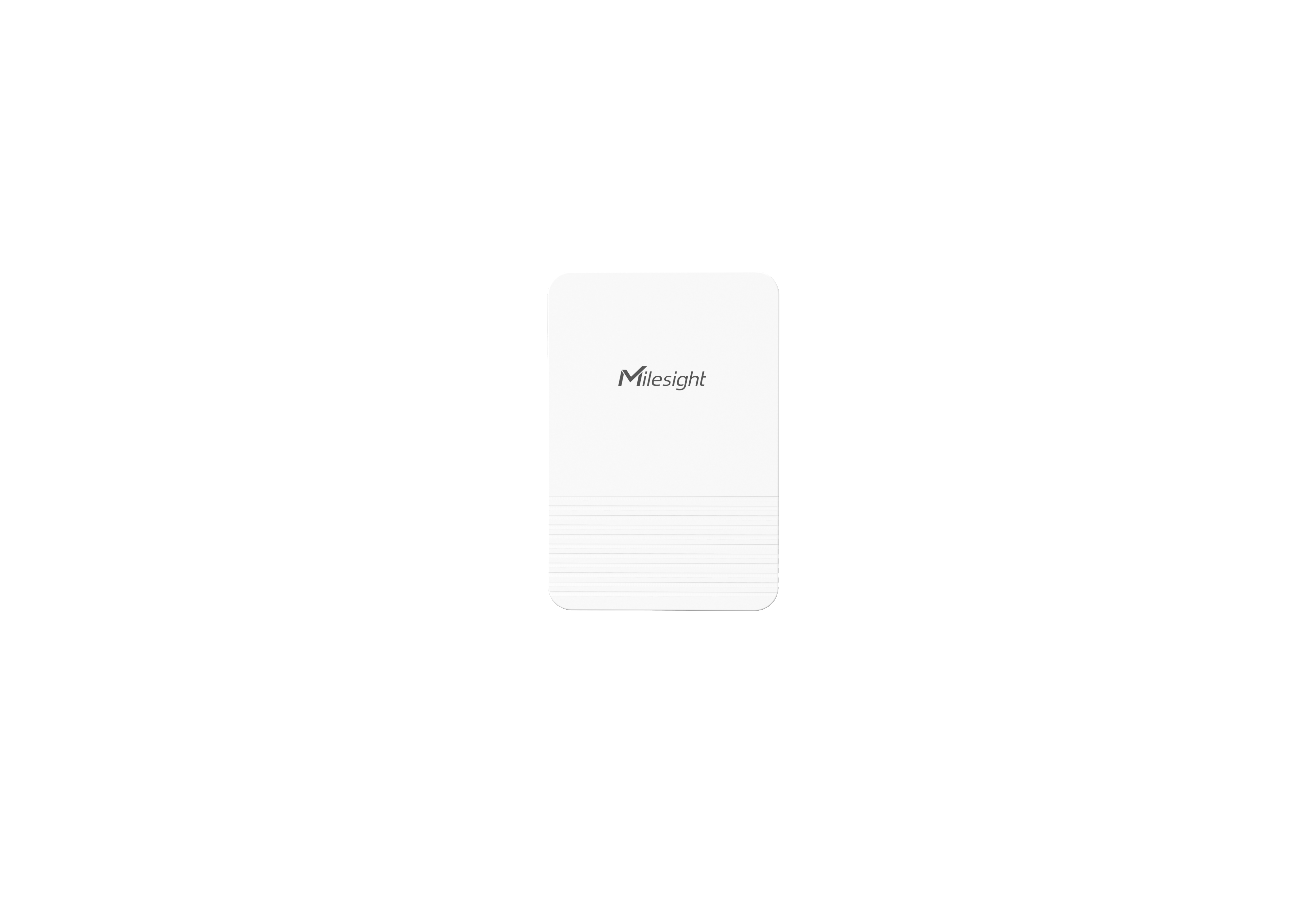

Milesight EM320 Temperature & Humidity Sensor Series

Product Description

The Milesight EM320-TH LoRa temperature and humidity sensor is a compact device. Ideal for monitoring conditions in a range of applications. This smart device is supplied with a magnetic casing for simple installation.

Example use cases include:

Smart Cold Chain
Smart Agriculture
Smart Refrigeration
Smart Buildings
Smart Pharmacy
Industry 4.0

Whether you're looking to ensure safe food storage, reduce the risk of waste medication, adjust irrigation and ventilation systems in greenhouses or optimise energy usage in offices. The Milesight EM320-TH offers a great solution. With ultra-low power consumption, the EM320-TH LoRa temperature and humidity sensor has a battery life of up to 5 years.

Compatible with the Milesight Cloud Data Management IoT Cloud and other leading platforms. Data recorded through this LoRa temperature and humidity sensor will transmit the recorded data to your chosen dashboard through a connected LoRaWAN® gateway via your LoRaWAN® network server.

Housed in a robust IP67-rated casing, the EM320-TH is capable of storing up to 3000 sets of historical data records with time stamps, helping you to avoid a potential loss of data.

Ideal for monitoring temperature and humidity in a range of applications
Certified for use with food
Housed in a robust IP67-rated casing
Wide measuring range from -30°C to 60°C and 0-100% relative humidity

Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.

Parameters

Wireless Transmission
Protocol	LoRaWAN®
Frequency	EU868 (Other frequencies available on request)
Tx Power	16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz)
Sensitivity	-137 dBm @ 300 bps
Mode	OTAA/ABP Class A
Temperature Sensor
Range	-30°C ~ +60°C
Accuracy	± 0.2°C
Resolution	0.1°C
Humidity Sensor
Range	0% ~ 100% RH
Accuracy	± 2% RH
Resolution	0.5% RH

Dimensions	85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in)
Material & Colour	ABS & PC (Food Grade), White

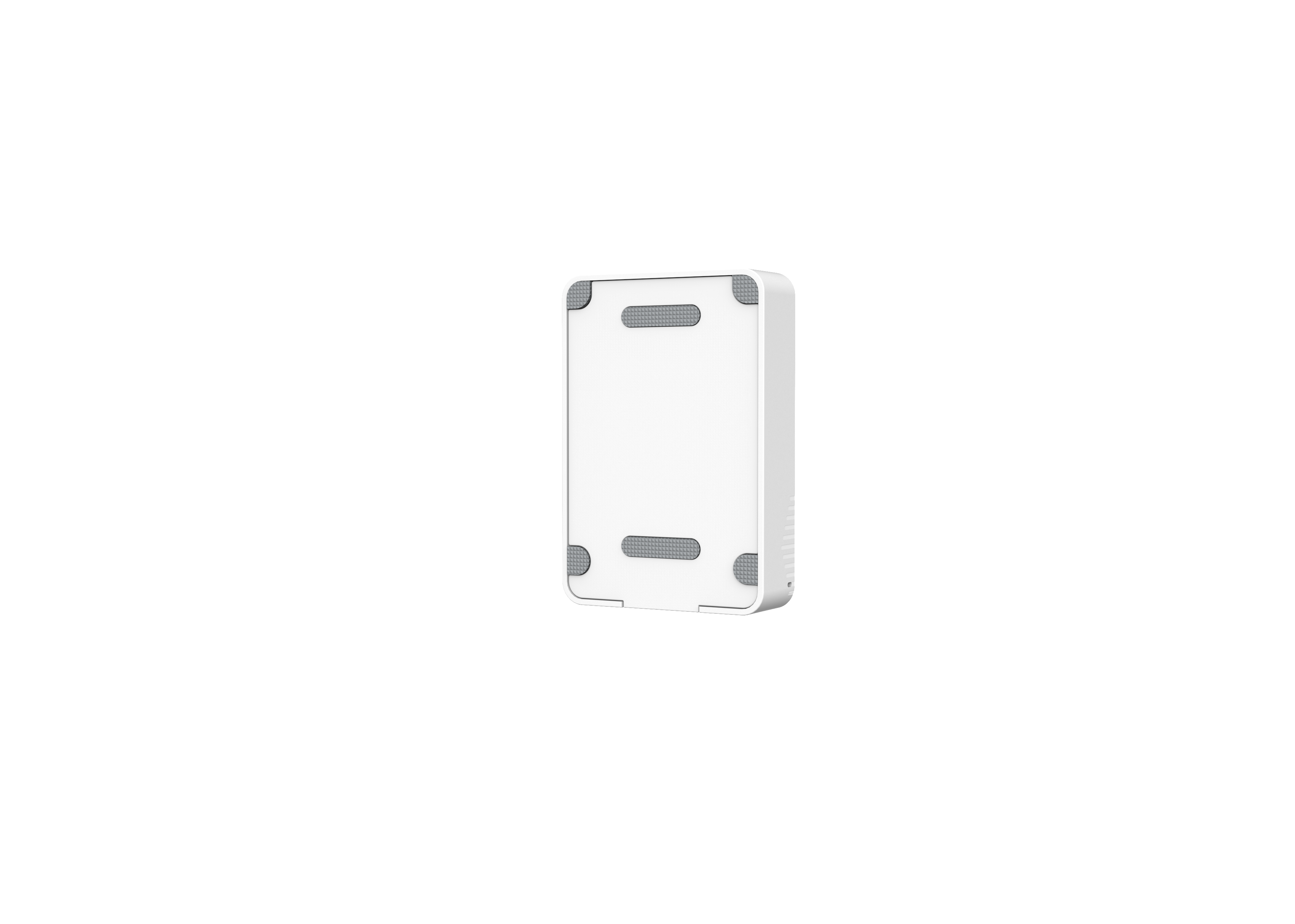

Installation	Wall Screw Mounting or Magnetic Mounting (Optional)
Configuration	NFC via Mobile App
Data Storage	Up to 3000 Records with Timestamps
Operating Temperature	-30°C ~ +60°C
Relative Humidity	≤ 95% (Non-condensing)
Ingress Protection	IP67

Power Supply	2 × 2700 mAh ER14505 Li-SOCl₂ Replaceable Batteries
Battery Life¹	≥ 5 Years

Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.

All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our team are happy to advise customers on the best portable LoRaWAN® temperature & humidity sensors for their specific applications on an individual project basis.
