SKU: VS350-868M

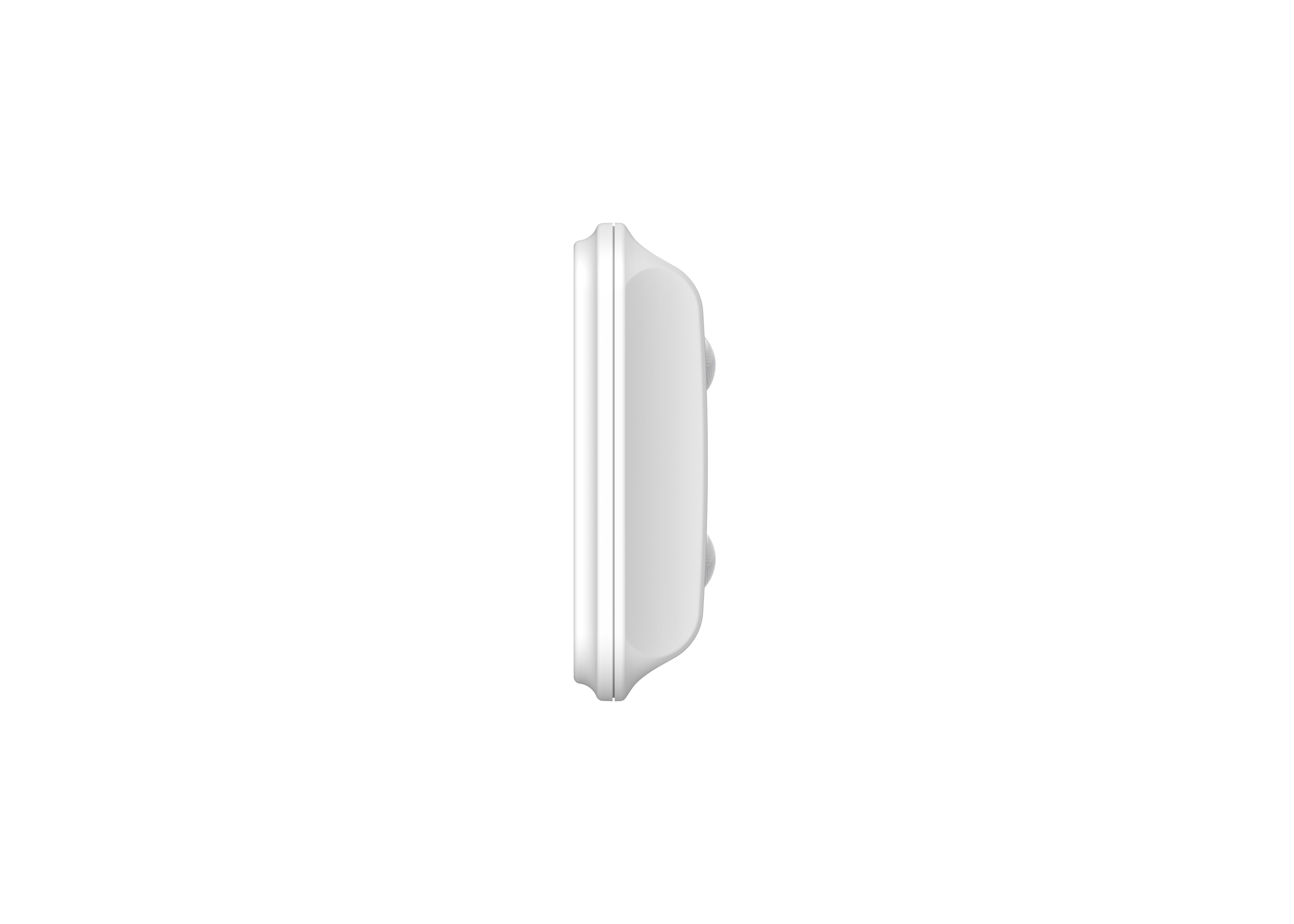

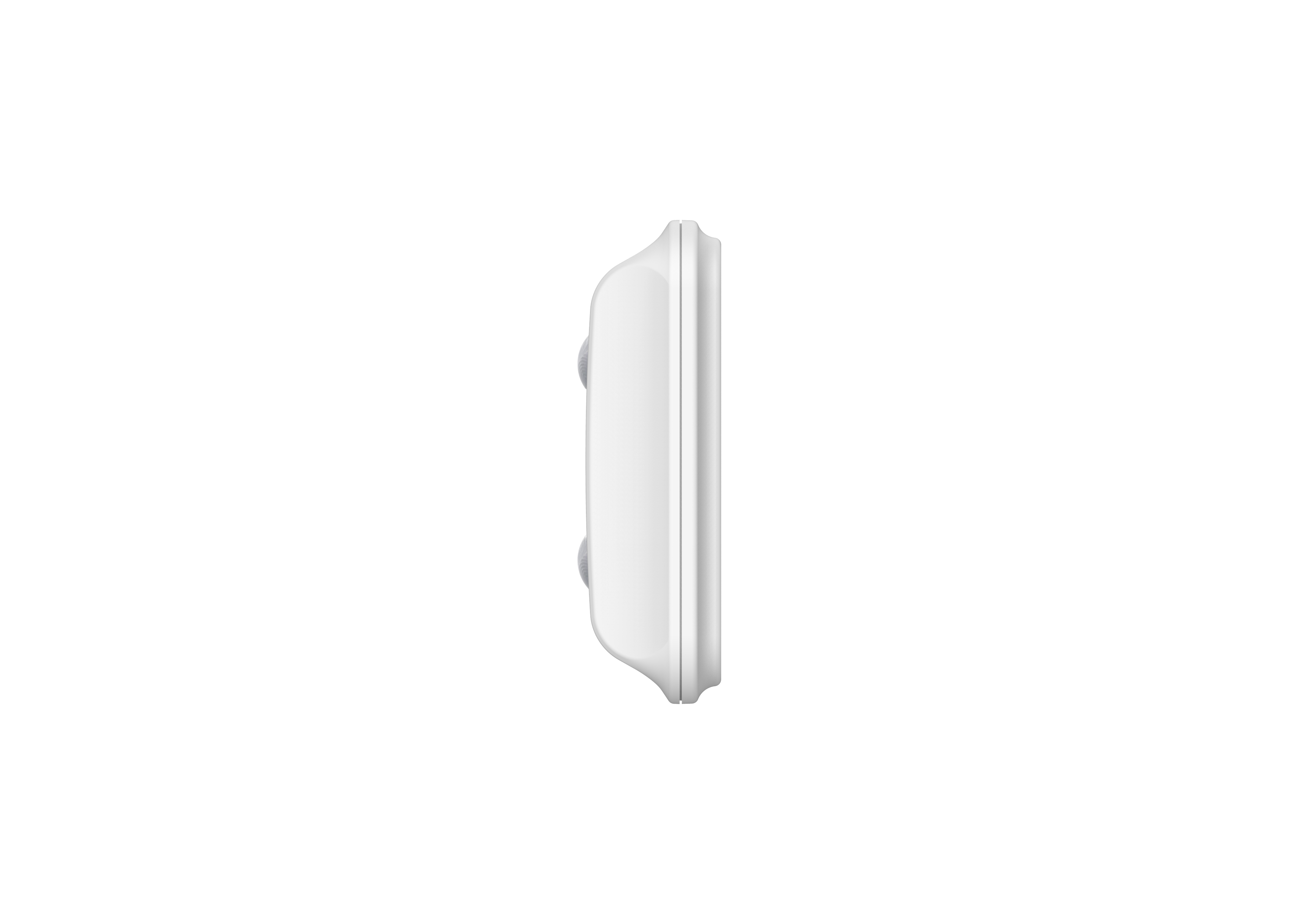

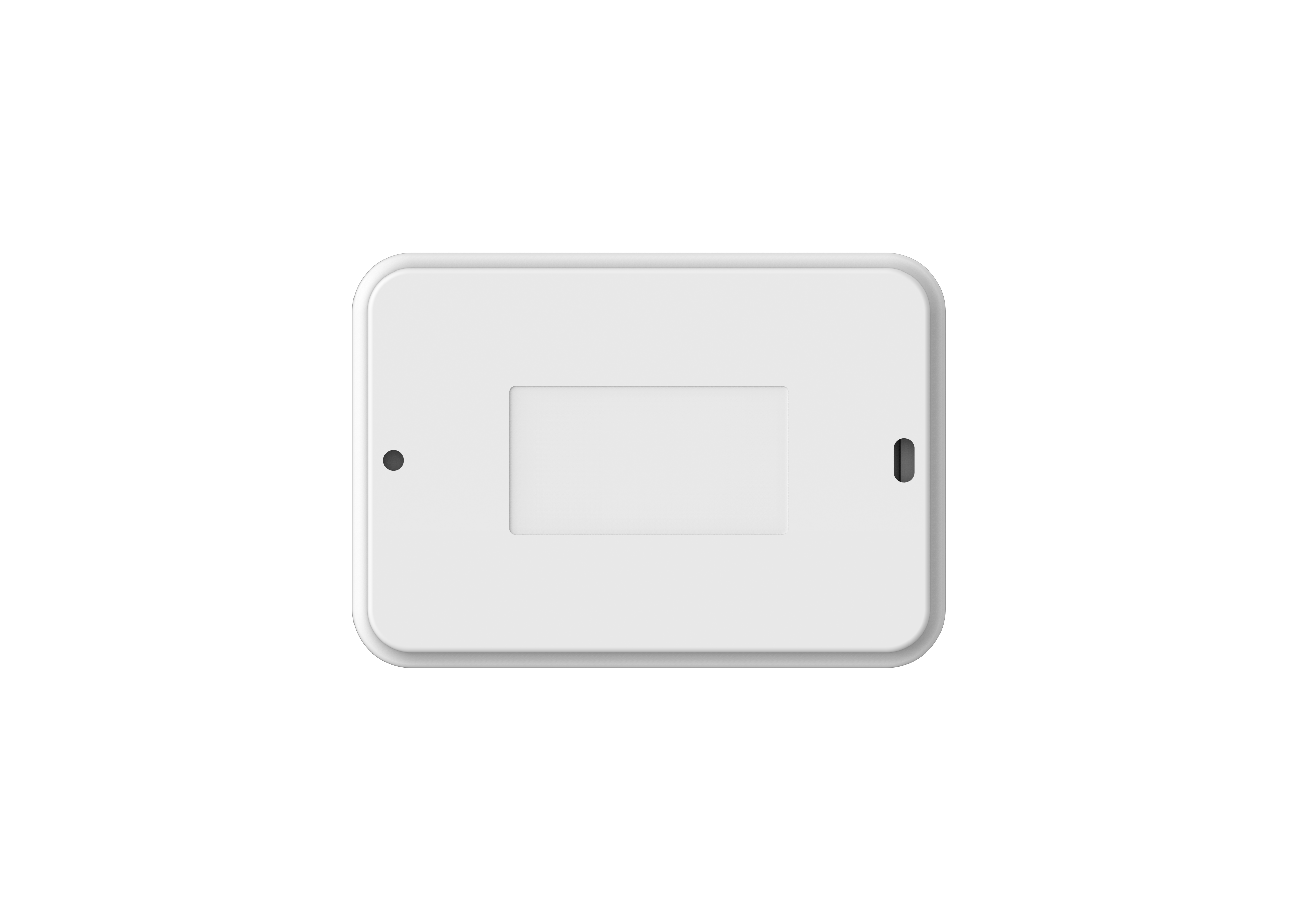

The Milesight VS350 people passage counter offers a sophisticated device, designed to track the movement of people entering and exiting a defined area
Details Additional Info Data Sheet Manual
With bi-directional detection using dual PIR sensors, the Milesight VS350 passage people counter delivers accurate tracking and redefines how you track foot traffic at a cost-effective price. The benefits of LoRaWAN® technologies guarantee low power consumption, long-distance transmission, deep penetration, and anonymous detection.
To maximise accuracy, we recommend purchasing this product with PIR-COVER-VS350-TWIN. When enquiring about this product, mention this to the Sales Team.
Ideal for a wide range of applications, the Milesight VS350 Passage People Counter can be used in:
A gateway serves as a transparent hardware bridge that intercepts LoRa radio packets from end-devices and forwards them to the network infrastructure via an IP-based backhaul, such as Ethernet, Wi-Fi, or cellular.
The Network Server (LNS) acts as the central management hub that authenticates devices, removes duplicate packets received from multiple gateways, and manages the Adaptive Data Rating (ADR) to optimise network capacity and device battery life.
The Milesight VS350 can be configured using NFC in 3 simple steps.
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Dimensions | 100 x 70 x 21 mm (3.94 x 2.76 x 0.83 in) |
| Material & Colour | PC (Flame Retardant), White |
| Installation | Ceiling Mount, Wall Mount |
| Operating Temperature | -20°C ~ 60°C |
| Relative Humidity | 0% ~ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Power Supply | 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life | Around 4 Years (10-min Interval, 25°C, 1000 People per Day) |
Certifications
