SKU: RB02I

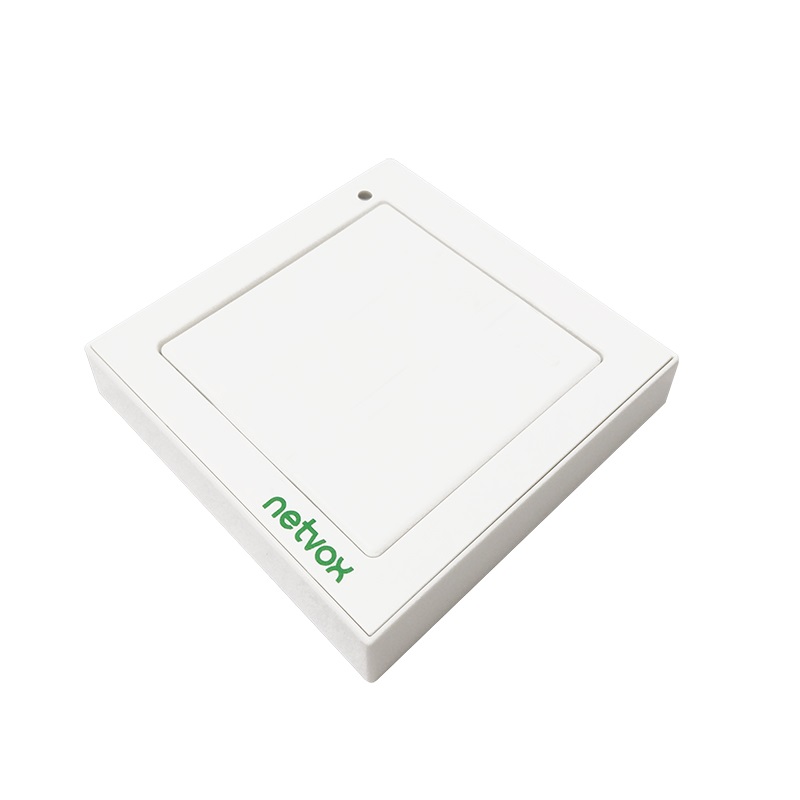

Netvox’s wireless LoRaWAN emergency push button immediately transmits alarm information once pressed alerting somebody in emergency situations where a threat to persons or property exists.
Details Additional Info Data Sheet Manual
Netvox’s wireless LoRaWAN® emergency push button immediately transmits alarm information once pressed alerting somebody in emergency situations where a threat to persons or property exists. If there is no threat, i.e. the button has not been pressed, the sensor will automatically send a status report and battery power level message via the LoRaWAN® protocol at pre arranged intervals. ***Awaiting certification***
We can supply third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service, this sensor can be supplied pre-configured and ready to go.
| Power Supply | 2 * AAA Batteries |
| Operating Voltage | 2.1V-3V |
| Standby Current | 14uA |
| Transmitting Current (Max) | 120mA/3.0V |
| Receiving Current (Max) | 11mA/3.0V |
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor=12, Bit Rate=293bps) -121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Built-in Antenna |
| Communication Range | 10 km (line-of-sight, actual transmission distance depends on the environment) |
| Data Transfer Rate | 0.3kbps~50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU868 (others are available on request) |
| Dimensions | 81.7mm x 81.7mm x 14.3mm |
| Working Temperature | -20°C ~ +55°C |
| Storage Temperature | -40°C ~ +85°C |
| Humidity Detecting Range | <90%RH |
All of our products are available to customers throughout Europe. Some of our in-stock items can be dispatched the same day. For more information on shipping costs, currency conversions and lead times, please contact our technical team. Our technical team are also happy to advise customers on the best LoRaWAN Emergency Buttons for their specific applications on an individual project basis.
