SKU: R718WB

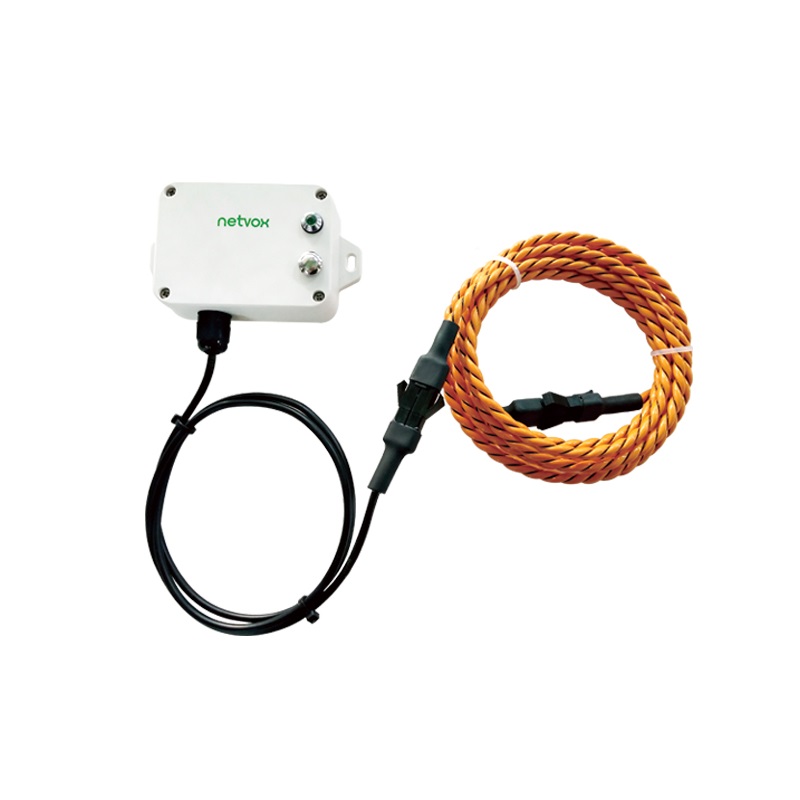

Netvox’s wireless water leak detector with cable sensor detects the presence of water if any portion of the cable becomes wet.
Details Additional Info Data Sheet Manual£155.52*
Netvox’s wireless water leak detector with cable sensor detects the presence of water if any portion of the cable becomes wet. The status data is sent to the data centre via the LoRaWAN® protocol at pre-programmed intervals in addition to the signal being sent when a leak is detected. A water leak sensor cable is ideal for use in both industrial and domestic settings.
| Input Power | 2 x 3.6V ER14505 AA lithium batteries |
| Battery Life Time | 5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10) |
| Sleeping Mode | 20uA |
| Wake Up Mode | 6.3mA@3.3V |
| Low Voltage Threshold | 3.2A |
| Receiving Current (Max) | 11mA @3.3V |
| Transmitting Current (Max) | 120mA/3.3V |
| Battery Voltage Measurement Accuracy | ±0.1V |
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor=12, Bit Rate=293bps) -121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Built-in Antenna |
| Communication Range | 10 km (line-of-sight, actual transmission distance depends on the environment) |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU868 (others are available on request) |
| Dimensions | 112mm x 65mm x 32mm |
| Weight | 141g |
| Environment Temperature Range | -20°C ～ +55°C |
| Environment Humidity Range | <90% RH (No condensation) |
| Storage Temperature | -40°C ～ +85°C |
| IP Rating | IP67 |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical team. Our technical team are also happy to advise customers on the best LoRaWAN® water leak sensors for their specific applications on an individual project basis.
Certifications
