SKU: ENL-OS-L

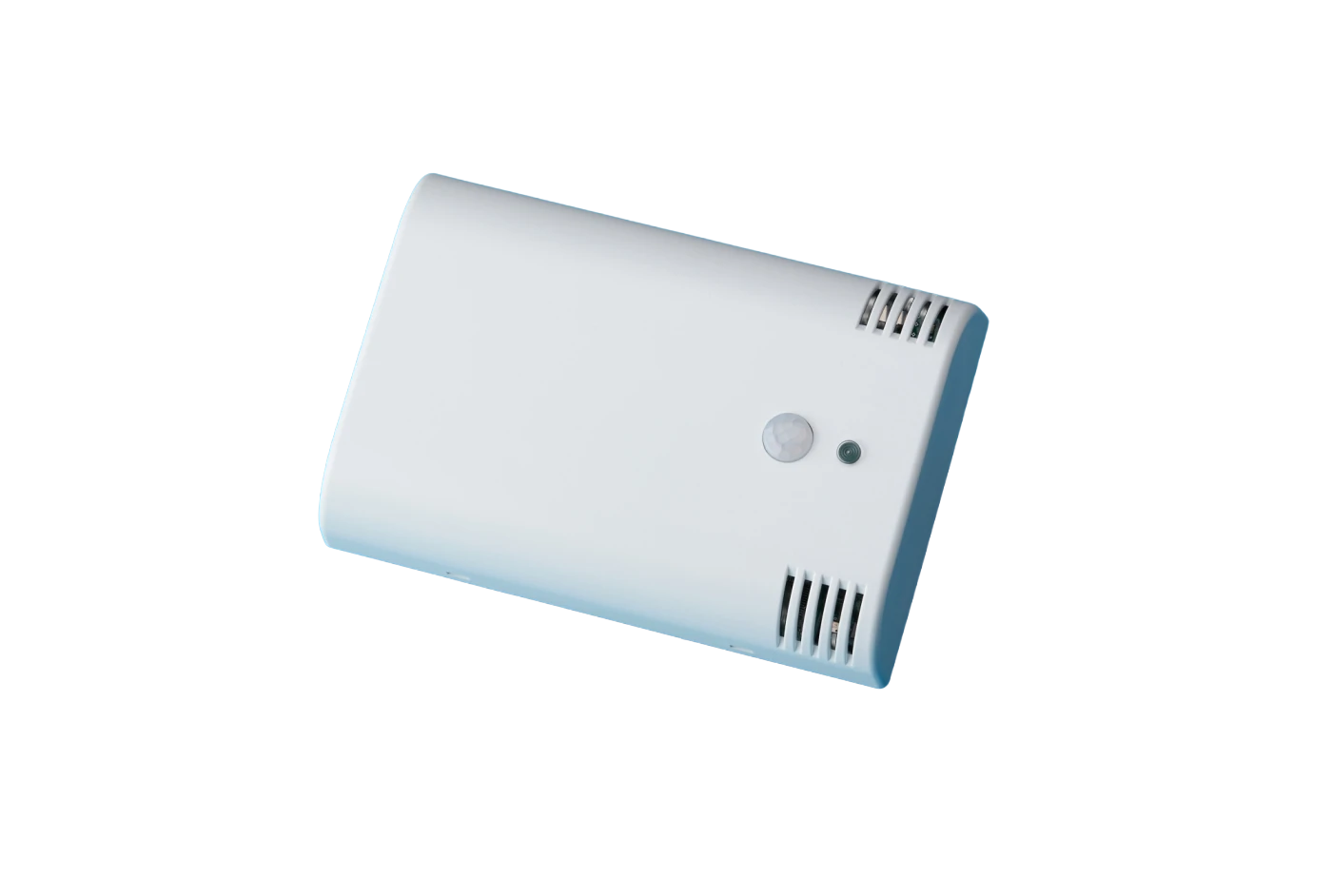

enLink OdourSense, a device engineered for facility managers to optimise washroom odour detection.
Details Data Sheet Manual
Gain greater visibility into washroom conditions with the Synetica enLink OdourSense.
Designed specifically for washroom monitoring, the enLink OdourSense uses sensing technology to detect gases responsible for unpleasant odours. The sensor detects a wide range of odour gases, helping facilities teams gain a more accurate understanding of perceived washroom conditions.
Using LoRaWAN® connectivity, recorded environmental data can be transmitted wirelessly for remote monitoring and analysis. This allows facilities teams to move away from fixed cleaning schedules and towards demand-led cleaning based on real-time washroom conditions.
Suitable applications include:
The enLink OdourSense monitors eight key gases associated with unpleasant odours, including methyl mercaptan, methyl sulfide, trimethylamine, dimethyl disulfide, hydrogen sulfide, carbon disulfide, styrene and ammonia. By detecting compounds at very low concentrations, the device can provide a more representative measurement of the odours experienced by washroom users.
Alongside odour monitoring, the enLink OdourSense also combines temperature, relative, humidity, barometric pressure and VOCs in one smart, compact device.
Recorded data is transmitted over a LoRaWAN® network, providing long-range, low-power connectivity for smart building deployments. The device can also integrate with Building Management Systems (BMS) using BACnet and wider IoT platforms, helping organisations implement predictive cleaning and ventilation strategies. Recovered data is transmitted to a connected LoRaWAN gateway via a LoRaWAN network
| Odour Sensor Accuracy | ±5% of measurement value |
| Repeatability | 1% |
| Linearity | Linear |
| Long-Term Drift | <5% per year |
| Expected Sensor Lifetime | >5 years |
| Methyl Mercaptan | CH4S |
| Methyl Sulfide | C2H6S |
| Trimethylamine | C3H9N |
| Dimethyl Disulfide | C2H6S2 |
| Hydrogen Sulfide | H2S |
| Carbon Disulfide | CS2 |
| Styrene | C8H8 |
| Ammonia | NH3 |
| Temperature Accuracy | ±0.2°C typical |
| Temperature Repeatability | ±0.1°C |
| Temperature Response Time | 2 seconds (τ63%) |
| Humidity Accuracy | ±1.8% RH typical |
| Humidity Repeatability | ±0.25% RH |
| Humidity Response Time | 4 seconds (τ63%) |
| Pressure Accuracy | ±0.12 hPa |
| Pressure Range | 300 to 1100 hPa |
| Pressure Resolution | 0.18 Pa |
| VOC IAQ Index | 0 to 500 |
| TVOC Output | ppm |
| VOC Response Time | 1 second |
| Light Level Range | 0.01 lux to 83,000 lux |
| Light Level Error | Less than 4% |
| IR Rejection | >99% typical |
| PIR Detection Distance | Up to 5m |
| PIR Detection Area | 82° Horizontal, 94° Vertical |
| Wireless Protocol | LoRaWAN® |
| Available Frequencies | EU868MHz, US915MHz & AU915MHz |
| BMS Integration | BACnet and compatible BMS / IoT platforms |
| Installation | Wall Mount |
| Battery Power | 4 x AA Lithium Cells |
| External Power | 12-24V DC |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our technical sales team are also happy to advise customers on the best LoRaWAN® environmental and washroom monitoring sensors to suit specific project requirements.
